BZL MIG/MAG Torches
ECO-Grip MAX™, SB, PRO & PRO-Grip MAX™ From Parweld
The Parweld BZL range is a comprehensive line of MIG/MAG torches designed with user comfort, durability, and performance in mind. Offering a variety of options to suit different needs, the line-up includes the critically acclaimed PRO-Grip MAX™ range, the effective ECO-Grip MAX™ torches, and the classic SB collection.
ECO-Grip MAX™ MIG/MAG Everyday Range
The Parweld ECO-Grip Max™ MIG Torch range
offers the benefits of a modern ergonomic
design while maintaining a simple and
classic feel at a competitive price.
Cable Length Options On All Torches = 3m / 10ft | 4m / 13ft | 5m /16ft
ECO-Grip MAX™ Air Cooled Torches
ECO-Grip MAX™ 150A
ECR1500
CO2 Rating = 140A @ 60% Duty Cycle
Mixed Gas Rating = 140A @ 60% Duty Cycle
Wire Size = 0.6mm-1.0mm (0.023"-0.040")
ECO-Grip MAX™ 240A
ECR2400
CO2 Rating = 200A @ 60% Duty Cycle
Mixed Gas Rating = 170A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
ECO-Grip MAX™ 250A
ECR2500
CO2 Rating = 184A @ 60% Duty Cycle
Mixed Gas Rating = 160A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
ECO-Grip MAX™ 360A
ECR3600
CO2 Rating = 240A @ 60% Duty Cycle
Mixed Gas Rating = 216A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
ECO-Grip MAX™ Water Cooled Torches
ECO-Grip MAX™ 401W
ECR4001
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 350A @ 100% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
ECO-Grip MAX™ 501W
ECR5000
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 360A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
ECO-Grip MAX™ Features
Standard SB & PRO MIG/MAG
Cable Length Options On All Torches = 3m / 10ft | 4m / 13ft | 5m /16ft
PRO 380A
B3800
Cooling = Air Cooled
CO2 Rating = 350A @ 60% Duty Cycle
Mixed Gas Rating = 320A @ 60% Duty Cycle
Wire Size = 1.2mm-1.6mm (0.045"-1/16")
PRO 400A
B4000
Cooling = Air Cooled
CO2 Rating = 350A @ 60% Duty Cycle
Mixed Gas Rating = 320A @ 60% Duty Cycle
Wire Size = 1.0mm-2.4mm (0.040"-3/32")
PRO 550W
B5500
Cooling = Double Water Cooled
CO2 Rating = 550A @ 100% Duty Cycle
Mixed Gas Rating = 500A @ 100% Duty Cycle
Wire Size = 0.8mm-1.6mm (0.030"-1/16")
SB 501W AUTO
B5000
Cooling = Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
PRO-Grip MAX™ MIG/MAG Advanced Comfort
The Parweld PRO-Grip MAX™ MIG Torch range
has been developed using the company’s
philosophy of putting the user first. every
aspect of the PRO-Grip MAX™ has been
designed to make life easier for the welder
Cable Length Options On All Torches = 3m / 10ft | 4m / 13ft | 5m /16ft
Ergonomic Design - The striking handle
design provides maximum comfort and
manoeuvrability.
Reduced Fatigue - Using the latest over moulding techniques, large soft grips ensure that the torch remains in place with minimal effort.
Manoeuvrability - knuckle joint and cable
support allow small movements of the handle
and neck, independent of the cable assembly
giving the welder freedom of movement whilst
still maintaining support.
PRO-Grip MAX™ Air Cooled Torches
PRO-Grip MAX™ 150A
PRO1500
CO2 Rating = 180A @ 60% Duty Cycle
Mixed Gas Rating = 150A @ 60% Duty Cycle
Wire Size = 0.6mm-1.0mm (0.023"-0.040")

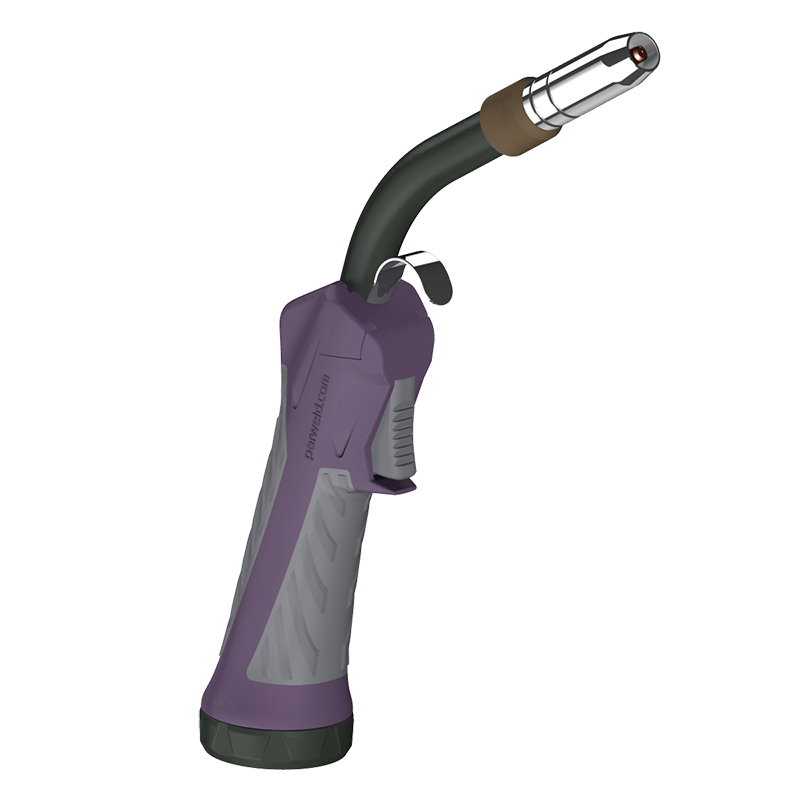

PRO-Grip MAX™ 150A FLEX
PRO1500FX - Flexible Neck
CO2 Rating = 180A @ 60% Duty Cycle
Mixed Gas Rating = 150A @ 60% Duty Cycle
Wire Size = 0.6mm-1.0mm (0.023"-0.040")
PRO-Grip MAX™ 240A
PRO2400
CO2 Rating = 250A @ 60% Duty Cycle
Mixed Gas Rating = 220A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 250A
PRO2500
CO2 Rating = 230A @ 60% Duty Cycle
Mixed Gas Rating = 200A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")

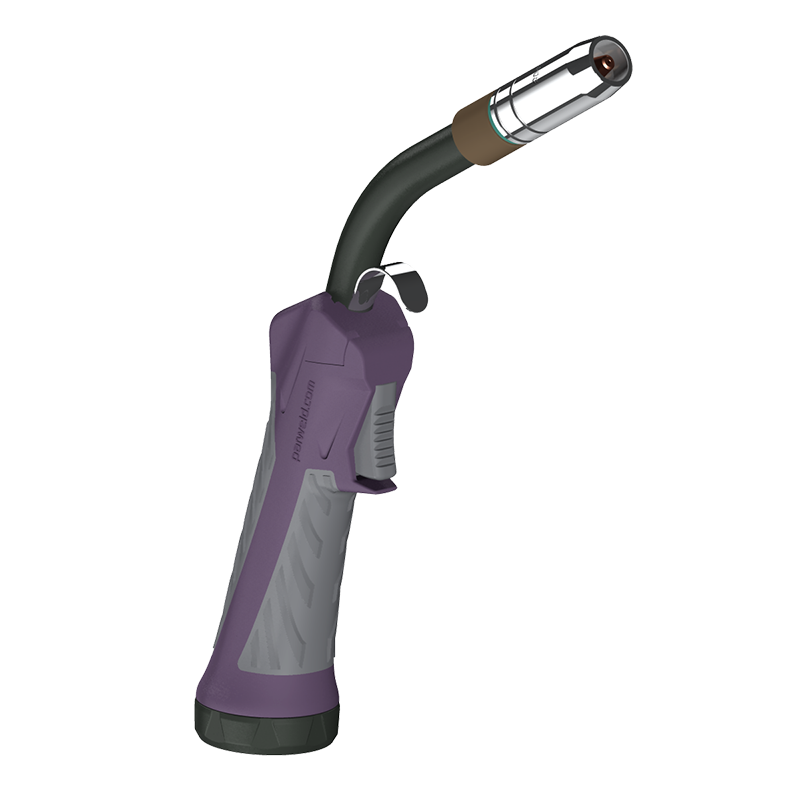

PRO-Grip MAX™ 250A FLEX
PRO2500FX - Flexible Neck
CO2 Rating = 230A @ 60% Duty Cycle
Mixed Gas Rating = 200A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 260A
PRO2600
CO2 Rating = 250A @ 60% Duty Cycle
Mixed Gas Rating = 220A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 360A
PRO3600
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
Alternative Grip & Positioning
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ Water Cooled Torches
PRO-Grip MAX™ 240W
PRO2400W
Cooling = Standard Water Cooled
CO2 Rating = 300A @ 100% Duty Cycle
Mixed Gas Rating = 270A @ 100% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 350W
PRO3500W
Cooling = Standard Water Cooled
CO2 Rating = 320A @ 100% Duty Cycle
Mixed Gas Rating = 280A @ 100% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 400W
PRO4400
Cooling = Double Water Cooled
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 350A @ 100% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 401W
PRO4001
Cooling = Standard Water Cooled
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 350A @ 100% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-Grip MAX™ 501W
PRO5000
Cooling = Standard Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
PRO-Grip MAX™ 501W EXT
PRO500L - Extended Neck Alternative
Cooling = Standard Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
PRO-Grip MAX™ 501W EXT
PRO500L - Extended Neck
Cooling = Standard Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
PRO-Grip MAX™ 501XW
PRO5400
Cooling = Advanced Double Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
Fume Extraction Alternative
Cooling = Standard Water Cooled
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
PRO-Grip MAX™ Features
PRO-FUME MIG/MAG Capabilties
The Parweld PRO-Grip MAX™ MIG Torch range
has been developed using the company’s
philosophy of putting the user first. every
aspect of the PRO-Grip MAX™ has been
designed to make life easier for the welder
Cable Length Options On All Torches = 3m / 10ft | 4m / 13ft | 5m /16ft
PRO-FUME 360A
PFE3600
Air Cooled Torch
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
PRO-FUME 501W
PFE5000
Water Cooled Torch
CO2 Rating = 520A @ 100% Duty Cycle
Mixed Gas Rating = 430A @ 100% Duty Cycle
Wire Size = 1.0mm-1.6mm (0.040"-1/16")
Push Pull MIG/MAG Technology
The Parweld PRO-Grip MAX™ MIG Torch range
has been developed using the company’s
philosophy of putting the user first. every
aspect of the PRO-Grip MAX™ has been
designed to make life easier for the welder
Cable Length Options On All European Spec Torches = 6m / 20ft | 8m / 26ft | 10m /33ft
Cable Length Options On All Asian & American Spec Torches = 8m / 26ft
Push Pull 360A
SB36P
Air Cooled Torch
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
Push Pull 400W
SB40P
Water Cooled Torch
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 350A @ 100% Duty Cycle
Wire Size = 0.8mm-1.6mm (0.030"-1/16")
Push Pull 360A
PP3600A
Air Cooled Torch
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
Push Pull 400W
PP4000W
Water Cooled Torch
CO2 Rating = 400A @ 100% Duty Cycle
Mixed Gas Rating = 350A @ 100% Duty Cycle
Wire Size = 0.8mm-1.6mm (0.030"-1/16")

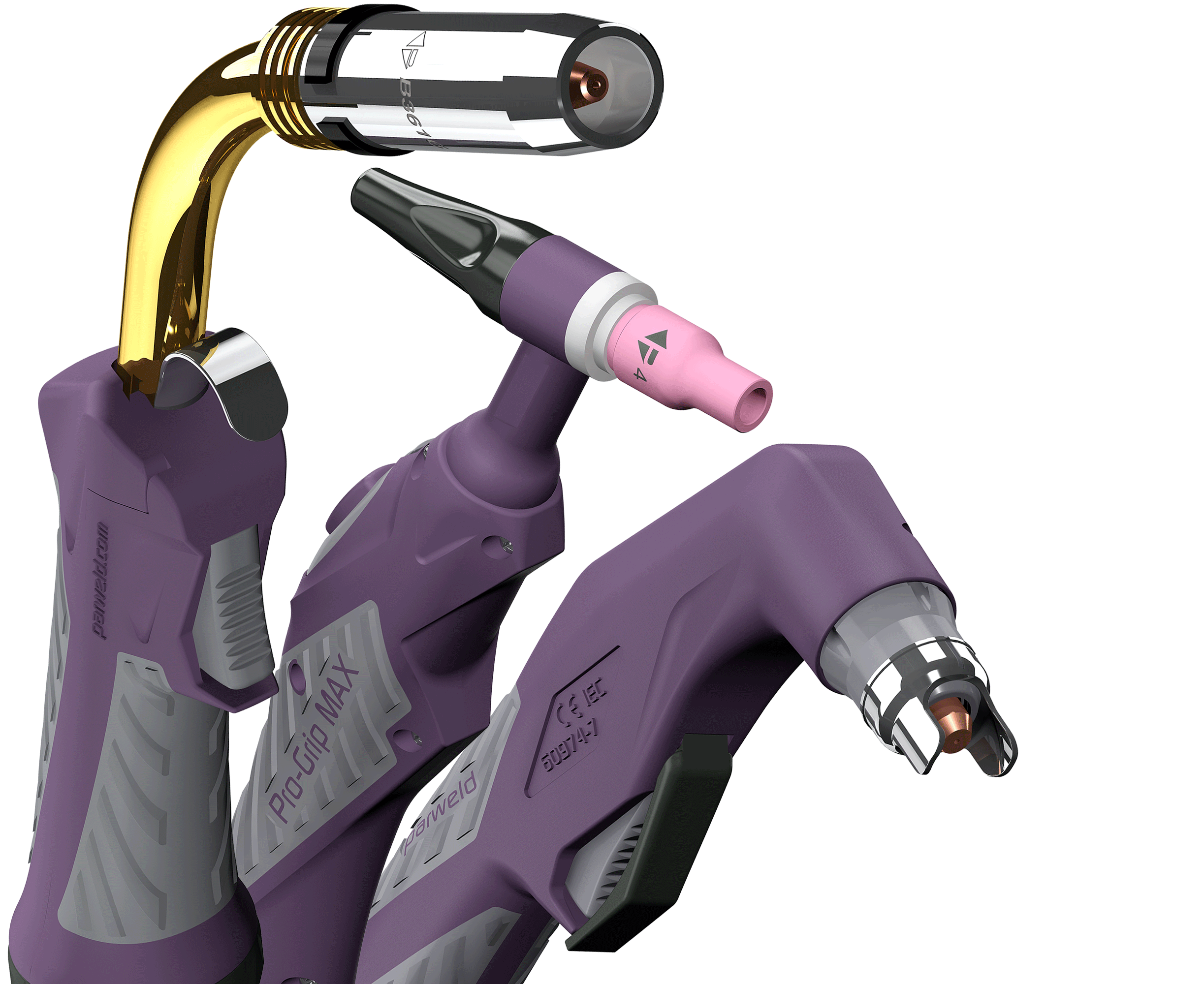

PRO-Grip MAX™ Handles are available for Parweld MIG BZL Torches, Parweld TIG Welding Torches and Parweld PLASMA Cutting Torches.
PRO-Grip MAX™ Handles are available for Parweld MIG BZL Torches, Parweld PRO TIG Welding Torches and Parweld PLASMA Cutting Torches.
