The variable output of the XTP 103 makes it ideal for cutting metals up to 30mm thick. Infinite power control allows the output to be tuned to minimise dross on the cut edges.

The pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non HF ignition option minimises the risk of interference with electronic systems.

The XTP 103 is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators.

The machine is housed in a metal case with carry handles.

Key Features Include:

• 400V, 3 Phase Input
• 100A @ 100% Duty Cycle
• Cuts Any Metal
• 30mm Production Cut
• 50mm Severance Cut
• CNC Interface – for Automatic Operation
• Built-in Air Pressure Regulator
• Built-in Air Pressure Gauge
• Auto Over Voltage Protection
• Over Current Protection
• Generator Friendly

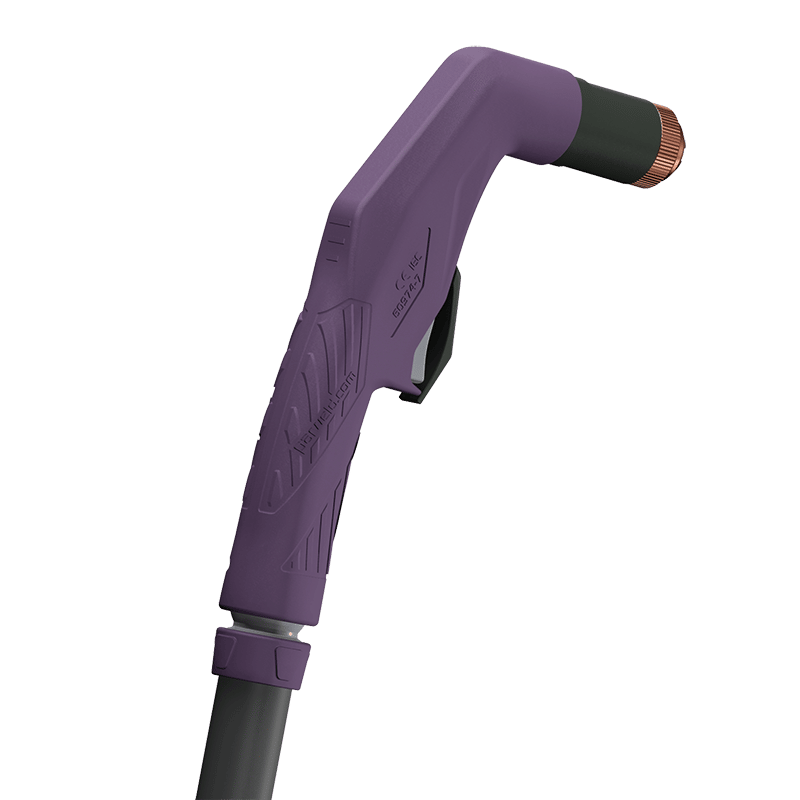

• Supplied with 6m Coaxial Cable Central Connector Plasma Hand Torch (XTA141-6-CC)
• Optional 6m Coaxial Cable Central Connector Plasma Machine Torch (XTA141M-6-CC)
• Optional XT4000 Plasma Torch – For non HF Operation up to 600A
• Supplied with 3m Earth Cable
• Ideal for Mesh Cutting
