XR943A
Respirator For Particulate Environments
Respirator For Particulate Environments
XR943A
XR943A
Powered Air Purifying
Respirator For Particulate
Environments
Respirator For Particulate
Environments
Air Purifying Respirator For Particulate Environments
- News, Product Releases
- Published:

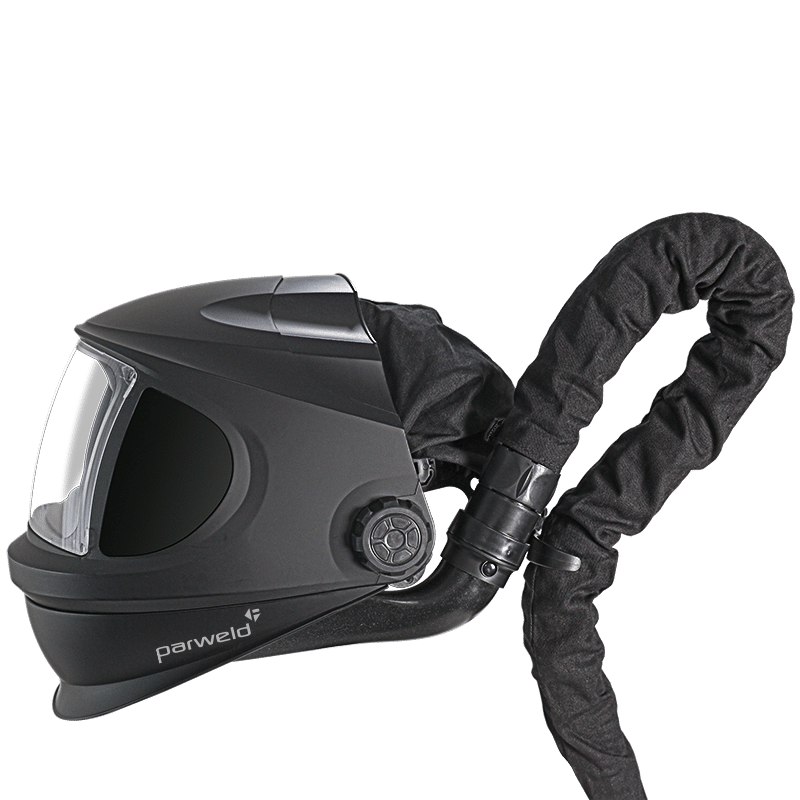

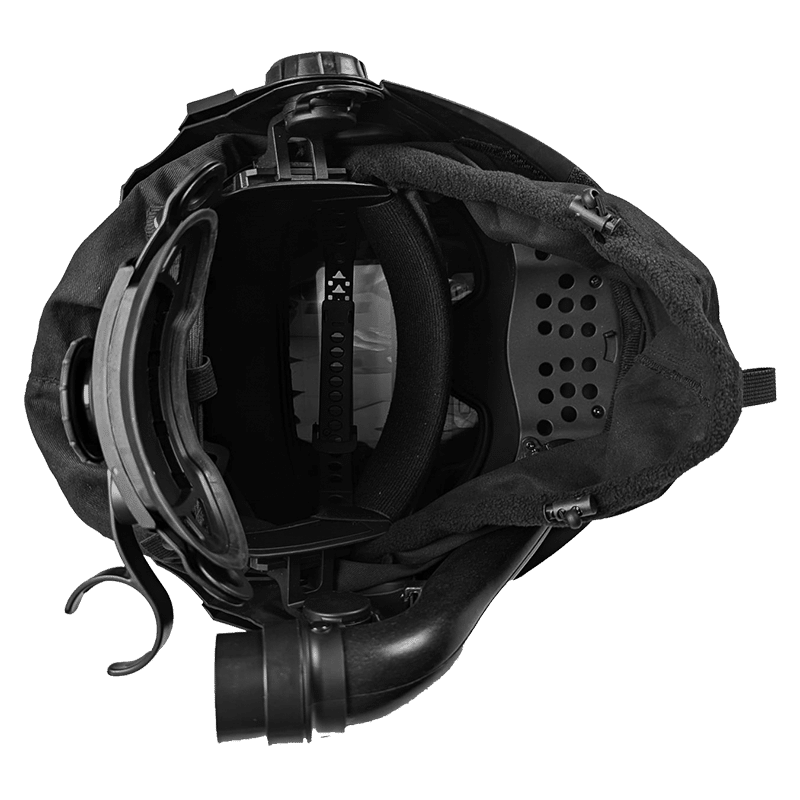

Elevate Your Air Quality To The Next Level with the Parweld XR943A PAPR (Powered Air Purifying Respirator). Designed for particulate environments, offering a flip-up welding and grinding helmet, a simple status display, and a smooth, ultra-quiet brushless motor with two-speed airflow control. It features audible and vibration warnings, a comfort belt with detachable shoulder straps, and a removable lithium-ion battery with a 10-hour runtime. The unit is lightweight at less than 1.1 kg and includes easy-to-operate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration. This system is TH3P certified in accordance with European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.
Are you looking for the XR943H?
View the full details on the XR943H Welding & Grinding Helmet with Flip-Up Front Visor, LCD display and a True Colour Auto-Darkening Filter (ADF) that offers exceptional clarity. Alongside the XR942H, a Welding & Grinding Helmet offering 180° Internal Vision, Active Shading Side Windows and Auto Mode to automatically set the shade selection of both the main window view and side windows.
Check Out The Future Of Vision From Parweld.
XR943A
XR943A Technical Data
- 170 or 220nl/min Air Flow Rate
- PC + ABS Material
- Brushless Motor
- Electronic Fuse
- Li-ion 14.8V Rechargeable Battery
- Approx 2.5h Battery Charging Time
- >350 Charging Cycles
- Run Time = 11 hour @ 170nl/min 9 hour @ 220nl/min (min fully charged new battery & filter room temp.)
- 14.8V/2.2Ah Voltage/Capacity
- Max. 60dB(A) Noise Level
- Carbon (Odour) Pre-Filter
- Dimensions = 224 x 190 x 70 mm (MAX)
- 850mm Air Hose Length
- Weighs 1097g (incl. Filter & Battery)
- Weighs 288g (no Filter or Battery)
- P3 TH3P R SL for TH3P system (Europe) Master Filter Type
- Conforms To EN12941:1998/A1:2003/ A2:2008 TH3 P R SL
XR943A Parts List
- XR943A - Full Assembled Respirator Helmet Kit
- XR1020 - Flip Light Reactive Welding Helmet with Face Seal and Air Duct
- XR423 - Front Cover Lens
- XR342 - Adjustable Headband
- XR372 - Sweatband
- XR373 - Head Band Fixing Hand Nuts (Pair)
- XR344 - Hose Clip for Headband
- XR1021 - Air Duct and Internal Diffuser Assembly
- XR353 - Auto-Darkening Filter
- XR435 - Side Window Replacement Kit
- XR433 - Grinding Protective Lens (Curved)
- XR434 - Inside Cover Lens (ADF)
- XR436 - Diopter Holder Bracket (Pair)
- CR2450 - Battery (Single)
Helmet
- Flip Front Action
- LCD Display Screen
- Ergonomically Balanced
- Wide-View Grinding Visor
- Gradual Lightening Process
- Features Settings Memory Function
- Exceptional Welding & Grinding Clarity
- Optical Quality Rated 1/1/1/1 EN 1631
Helmet Technical Data
- 108mm x 74mm Viewing Area
- 4.56" x 3.20" Viewing Area
- DIN Shade 3 Light State
- 0.04 Milliseconds Light To Dark (External Variable)
- Permanent Shade DIN 16 UV/IR Protection
- -5°C To +55°C Operating Temperature
- +23°F To +131°F Operating Temperature
- 754g (1.66lbs) Total Weight
- Flip-Up Front Capabilities
- Manufactured From High Impact Polyamide Nylon
- DIN Shade 4-8/9-13 Variable Dark State
- 0.3 - 0.9 Seconds Dark To Light (External Variable)
- Power Supply = Built-In Solar Cells and Replaceable Battery
- -20°C To +70°C Storage Temperature
- -4°F To +158°F Storage Temperature
- 5A Minimum Amperage Requirements
- 108mm x 74mm (4.56" x 3.20") Viewing Area
- Flip-Up Front | Wide-View Grinding Visor
- Manufactured From High Impact Polyamide Nylon
- DIN Shade 3 Light State
- DIN Shade 4-8/9-13 Variable Dark State
- 0.04 Milliseconds Light To Dark (External Variable)
- 0.1 - 1.0 Seconds Dark To Light (External Variable)
- Permanent Shade DIN 16 UV/IR Protection
- Fully Automatic Power On/Off
- Power = Built-In Solar Cells & Replaceable Battery
- 5A Minimum Amperage Requirements
- -5°C To +55°C (+23°F To +131°F) Operating Temp.
- -20°C To +70°C (-4°F To +158°F ) Storage Temp.
- 754g (1.66lbs) Total Weight
- BS EN ISO 16321-1
- BS EN 175
- Filter CE Optical Class 1/1/1/1 EN 16321
PAPR
Simple And Clear
Status Display
Easy To
Operate Controls
Smooth And Ultra-Quiet
Brushless Motor
Supplied With A P3 Main Filter
Activated Carbon Pre-Filter
And Metal Spark Arrestor
Lightweight At
Just 1.1kg
Removable
Li/ion Battery
TH3P Filter Applications
- Metal Grinding and Cutting Applications
- Welding of Aluminium by MIG or TIG Processes
- Welding of Stainless Steel by MIG & TIG Processes
- Welding of Steel by MMA, MIG or TIG
- Welding of Zinc Coated Steel by MIG or TIG
PAPR Parts List
- XR1003 - Blower Unit without belt (no filters but incl. cover)
- XR1005 - Spark Arrestor
- XR1006 - Carbon Pre-Filter
- XR1007 - P3 HEPA Filter
- XR1016 - Battery Li/ion
- XR1017 - Universal Charger
- XR1004 - Filter cover with purple catch
- XR1008 - Comfort belt with shoulder straps
- XR1109 - Flex Air Hose (incl. Flame Retardant Cover) 1.05m
- XR1108 - Flame Retardant Hose Cover 1.05m
- XR1018 - PAPR Unit (excluding helmet)
- XR1001 - Nylon Carry Bag
New Welding & Grinding Helmets Available From Parweld
The XR942H with 180° Panoramic Vision and Active Shading Side Windows
The XR943H with Flip-Up Front Visor, LCD Display and True Colour ADF for exceptional clarity of the weld.
The XR943H with Flip-Up Front Visor, LCD Display and True Colour ADF for exceptional clarity of the weld.
