XTM
Series
MIG/MAG Inverters From Parweld
The Parweld XTM Series represents a cutting-edge range of inverter-based MIG/MAG welding and multi-process machines, designed to cater to a broad spectrum of welding applications from light fabrication to industrial manufacturing. Known for their versatility, efficiency, and user-friendly interfaces, the XTM series has become a popular choice for both professional welders and workshop enthusiasts.
Multi-Process Capability
Whilst the XTM Series is tailored and developed for MIG/MAG Welding, they are all capable of TIG and MMA Stick Welding, with the availability to switch with ease.
These Power Saving MIG/MAG welding machines range from 160 - 500 AMPS and all come with MIG Synergic Control, 2T/4T Trigger Latching, Burn Back Control & Variable Inductance function.
Multi-Language Digital Interface Models - XTM201Di, XTM211Di & XTM221Di
The XTM201Di, XTM211Di, and XTM221Di are part of Parweld's advanced "Di" (Digital Interface) series of multi-process inverter welders. They represent a progression in capability and features, all sharing a core philosophy of user-friendliness, versatility, and high-quality welding output through their intuitive digital control systems. The "3-in-1" XTM201Di offers excellent value and capability for a wide range of users. The "4-in-1" XTM211Di steps up the game, particularly for TIG welding, making it a true all-rounder for a wider array of materials, especially aluminum. The "5-in-1" XTM221Di is the pinnacle of the compact multi-process range, adding PLASMA cutting to its extensive range of capabilities.
Multi-Language Digital Interface Models - XTM201Di, XTM211Di & XTM221Di
The XTM201Di, XTM211Di, and XTM221Di are part of Parweld's advanced "Di" (Digital Interface) series of multi-process inverter welders. They represent a progression in capability and features, all sharing a core philosophy of user-friendliness, versatility, and high-quality welding output through their intuitive digital control systems. The "3-in-1" XTM201Di offers excellent value and capability for a wide range of users. The "4-in-1" XTM211Di steps up the game, particularly for TIG welding, making it a true all-rounder for a wider array of materials, especially aluminum. The "5-in-1" XTM221Di is the pinnacle of the compact multi-process range, adding PLASMA cutting to its extensive range of capabilities.
200A @ 25% Duty Cycle
MIG | TIG DC | MMA
110V/230V Dual Voltage (Smart Switching)
Single Phase | 140A/200A Maximum Current
200mm (5kg) & 100mm (1kg) Spool Sizes
2 Roll Feed Box | 0.6mm - 1.0mm Wire Size
32A (110V) & 16A (230V) Min. Fuse Rating
17.5kg Weight | 7.8 KVA Rating
10 KVA Recommended Generator Size
110V Input Current = 32.0A
230V Input Current = 16.0A
490mm Length | 220mm Width | 430mm Height
200A @ 25% Duty Cycle
MIG | TIG DC & AC | MMA
110V/230V Dual Voltage (Smart Switching)
Single Phase | 140A/200A Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
2 Roll Feed Box | 0.6mm - 1.0mm Wire Size
32A (110V) & 16A (230V) Min. Fuse Rating
27.8kg Weight | 7.8 KVA Rating
10 KVA Recommended Generator Size
110V Input Current = 21.4A(MIG)/20.5A(TIG)/20.6A(MMA)
230V Input Current = 15A(MIG)/11.3A(TIG)/15.4A(MMA)
615mm Length | 275mm Width | 495mm Height
200A @ 30% Duty Cycle
MIG | TIG DC & AC | MMA | PLASMA
110V/230V Dual Voltage (Smart Switching)
Single Phase | 140A/200A Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
2 Roll Feed Box | 0.6mm - 1.0mm Wire Size
32A (110V) & 16A (230V) Min. Fuse Rating
30kg Weight | 7.4 KVA Rating
10 KVA Recommended Generator Size
110V Input Current = 19.4A(MIG)/17.7A(TIG)/21.8A(MMA)/21.9A(PLASMA)
230V Input Current = 14.4A(MIG)/12.5A(TIG)/16.2A(MMA)/16A(PLASMA)
650mm Length | 275mm Width | 495mm Height
Separate Wire Feeder Units - XTM405i & XTM505i
Whilst also offering a Digital Interface, the XTM405i and XTM505i provide a Separate Wire Feeder Unit. Heavy-duty, industrial-grade machines, designed for demanding fabrication, manufacturing, and structural steelwork applications, these machines are built for sustained high-amperage output and robust performance in challenging environments.
400A @ 60% Duty Cycle
400V Three Phase | 400A DC Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
4 Roll Feed Box | 1.0mm - 1.6mm Wire Size
32A Fuse Rating | 22 KVA Rating
25 KVA Recommended Generator Size
Input Current = 21.2A (MIG) / 16.3A (TIG) / 22.9A (MMA)
Comes With Trolley & Drawer | Water Cooled Option Available
500A @ 60% Duty Cycle
400V Three Phase | 500A DC Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
4 Roll Feed Box | 1.0mm - 1.6mm Wire Size
32A Fuse Rating | 26 KVA Rating
30 KVA Recommended Generator Size
Input Current = 36.4A (MIG) / 37.5A (TIG) / 31.4A (MMA)
Comes With Trolley & Drawer | Water Cooled Option Available
Power, Mobility & Storage Solutions - XTM255i, XTM256i & XTM356i
Achieve high-power performance on the move, with the XTM255i, XTM256i and XTM356i, all 3 machines are supplied on a trolley with gas bottle holsrr and a storage drawer (drawer is only available on non-water cooled models - water cooled options feature a water cooler unit in place of the drawer), enhancing their mobility within a workshop or industrial setting. The XTM255i is developed for users who need significant power from a single-phase supply, making it versatile for larger workshops or on-site jobs where three-phase power might not be readily available. The XTM256i mirrors the power output of the 255i but is tailored for industrial environments with readily available three-phase power, offering more stable and consistent performance for high-demand applications. The XTM356i is a significant step up in power for the most demanding industrial welding tasks, requiring substantial amperage for heavy fabrication.
Power, Mobility & Storage Solutions - XTM255i, XTM256i & XTM356i
Achieve high-power performance on the move, with the XTM255i, XTM256i and XTM356i, all 3 machines are supplied on a trolley with gas bottle holsrr and a storage drawer (drawer is only available on non-water cooled models - water cooled options feature a water cooler unit in place of the drawer), enhancing their mobility within a workshop or industrial setting. The XTM255i is developed for users who need significant power from a single-phase supply, making it versatile for larger workshops or on-site jobs where three-phase power might not be readily available. The XTM256i mirrors the power output of the 255i but is tailored for industrial environments with readily available three-phase power, offering more stable and consistent performance for high-demand applications. The XTM356i is a significant step up in power for the most demanding industrial welding tasks, requiring substantial amperage for heavy fabrication.
250A @ 25% Duty Cycle
110V/230V Dual Voltage Single Phase
140A/250A Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
4 Roll Feed Box | 0.6mm - 1.2mm Wire Size
32A (110V) & 20A (230V) Min. Fuse Rating
23kg Weight | 8.8 KVA Rating
10 KVA Recommended Generator Size
110V Input Current = 32.6A(MIG)/24.8A(TIG)/31.4A(MMA)
230V Input Current = 17.8A(MIG)/12.9A(TIG)/19.1A(MMA)
MIG Output Voltage = 14.5V-26.5V
TIG Output Voltage = 10.4V-20.0V
MMA Output Voltage = 20.4V-30.0V
1.3-12.5m/min Wire Feed Speed
250A @ 35% Duty Cycle
400V Three Phase
250A Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
4 Roll Feed Box | 0.6mm - 1.2mm Wire Size
16A Minimum Fuse Rating
23kg Weight | 11.6 KVA Rating
13 KVA Recommended Generator Size
Input Current = 9.3A(MIG)/7.9A(TIG)/10.9A(MMA)
MIG Output Voltage = 14.5V-26.5V
TIG Output Voltage = 10.4V-20.0V
MMA Output Voltage = 20.4V-30.0V
1.3-12.5m/min Wire Feed Speed
350A @ 40% Duty Cycle
400V Three Phase
350A Maximum Current
300mm (15kg) & 200mm (5kg) Spool Sizes
4 Roll Feed Box | 0.6mm - 1.2mm Wire Size
16A Minimum Fuse Rating
24.5kg Weight | 15.9 KVA Rating
18 KVA Recommended Generator Size
Input Current = 13.5A(MIG)/10.2A(TIG)/14.5A(MMA)
MIG Output Voltage = 15.5V-31.5V
TIG Output Voltage = 10.4V-24.0V
MMA Output Voltage = 20.4V-34.0V
0.5-12.5m/min Wire Feed Speed

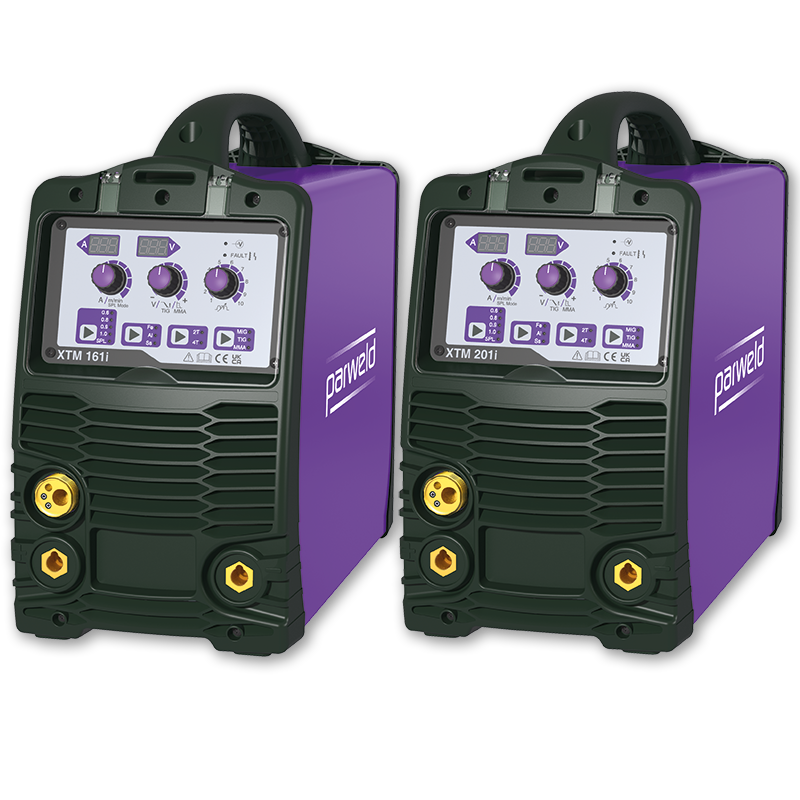

Light & Versatile Range - XTM161i & XTM201i
Specifically engineered for exceptional lightness and portability without compromising on power or versatility. These compact units are designed to be easily moved, making them ideal for a wide range of applications from DIY and automotive repairs to agricultural maintenance and light fabrication, both in the workshop and on-site.
160A @ 40% Duty Cycle
230V Single Phase | 160A DC Maximum Current
16A Fuse Rating | 14.5V-22.0V Output Voltage
200mm (5kg) & 100mm (1kg) Spool Sizes
2 Roll Feed Box | 0.6mm - 0.8mm Wire Size
16.3A Input Current (Effective) | 7.7 KVA Rating
5 KVA Recommended Generator Size
2-15m/min Wire Feed Speed
200A @ 25% Duty Cycle
230V Single Phase | 200A DC Maximum Current
16A Fuse Rating | 14.5V-24.0V Output Voltage
200mm (5kg) & 100mm (1kg) Spool Sizes
2 Roll Feed Box | 0.8mm - 1.0mm Wire Size
18A Input Current (Effective) | 10.2 KVA Rating
13 KVA Recommended Generator Size
2-18m/min Wire Feed Speed
Check out your nearest Parweld distributor for more on Welding Inverters available for you.
Or alternatively, contact Parweld Head Office for more details.
