XTT
Series
TIG Inverters From Parweld
The Parweld XTT Series is a line of TIG (Tungsten Inert Gas) welding machines, providing high-quality, precise TIG welding capabilities. These machines are primed for their precision, versatility, and advanced features, making them suitable for both professional welders and serious DIY enthusiasts.
These TIG welding machines range from 200 - 315 AMPS, all capable of Lift TIG, Pulsed TIG and HF TIG, alongside the ability for MMA Stick Welding. All the XTT Inverters come with Up Slope and Down Slope Functions, Pre-Flow and Post-Flow Functions, ideally suited to any/all production environments and applications.
Multi-Language Digital Interface Models - XTT212Di & XTT315Di

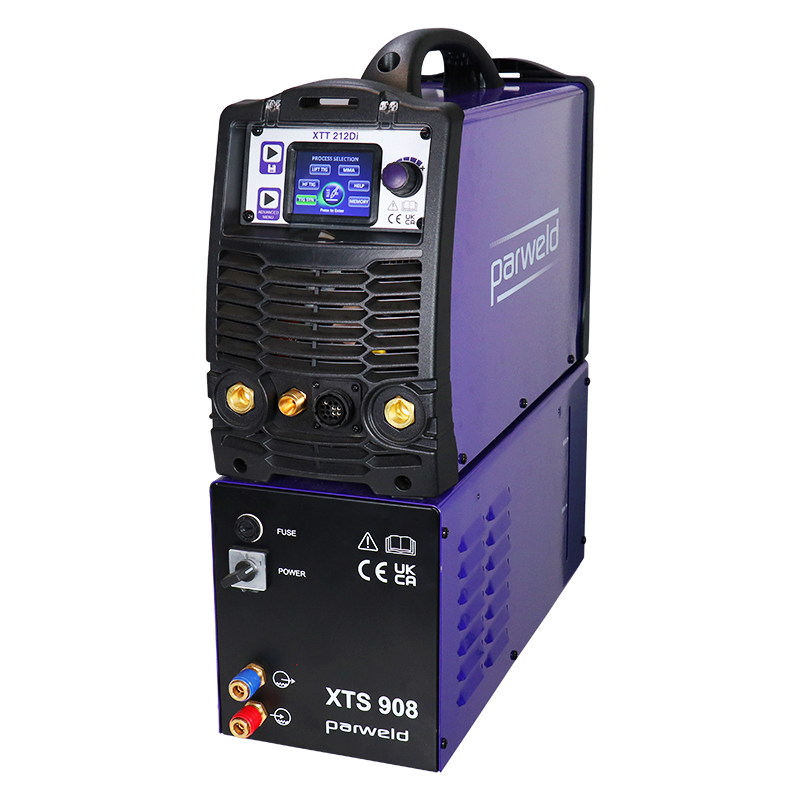

The XTT212Di and XTT315Di are part of Parweld's advanced "Di" (Digital Interface) series of TIG inverter welders. They represent a progression in capability and features, all sharing a core philosophy of user-friendliness, versatility, and high-quality welding output through their intuitive digital control systems. The XTT212Di offers excellent value and capability for a wide range of users, with dual-voltage to provides welders with the benefits of a 230V workshop machine but also the flexibility of a 110V site machine, available with a water cooler attachment. The more versatile XTT315Di steps up the game, particularly for TIG welding, with its 400V three phase capability, paired with a water cooler and trolley, this machine provides a strong and powerful, heavy-duty welder with the freedom of movement.
Air Cooled Machine
110V/230V Dual Voltage Pulsed
Single Phase | 200A @ 35% Duty Cycle
32A (110V) / 16A (230V) Minimum Fuse Rating
0-5s Up-Slope Function | 0-5s Down-Slope Function
0-1s Pre-Flow Function | 3-10s Post-Flow Function
0.5-100Hz Pulse Rating | 50-250Hz AC Frequency | 10 KVA Rating
28.5A (110V) / 16A (230V) Input Current (Effective)
13 KVA Recommended Generator Size
110V Output Current = 5-160A
230V Output Current = 5-200A
376mm Length | 136mm Width
240mm Height | 8kg Weight
Air Cooled with Water Cooler Unit Available
110V/230V Dual Voltage AC/DC Pulsed
Single Phase | 200A @ 30% Duty Cycle
32A (110V) / 16A (230V) Minimum Fuse Rating
0-5s Up-Slope Function | 0-5s Down-Slope Function
0-1s Pre-Flow Function | 3-10s Post-Flow Function
2-100Hz Pulse Rating | 6.4 KVA Rating
16.2A Input Current (Effective)
9 KVA Recommended Generator Size
110V Output Current = 5-140A (DC) | 10-140A (AC)
230V Output Current = 5-200A (DC) | 10-200A (AC)
460mm Length | 170mm Width
320mm Height | 12kg Weight
Air Cooled Machine with Water Cooler Unit Available
230V AC/DC Pulsed
Single Phase | 200A @ 25% Duty Cycle
16A Minimum Fuse Rating
0-10s Up-Slope Function | 0-10s Down-Slope Function
0-10s Pre-Flow Function | 0-10s Post-Flow Function
250Hz Pulse Rating | 50-250Hz AC Frequency
10.8 KVA Rating | 16.2A Input Current (Effective)
14 KVA Recommended Generator Size
DC Output Current = 5-200A | AC Output Current = 10-200A
Trolley Mounting Option Available
480mm Length | 240mm Width
400mm Height | 22kg Weight
Air Cooled with Water Cooler Unit Available
400V AC/DC Multi-Wave Pulsed
Three Phase | 315A @ 60% Duty Cycle
16A Minimum Fuse Rating
0-10s Up-Slope Function | 0-10s Down-Slope Function
0-10s Pre-Flow Function | 0-10s Post-Flow Function
0.5-200Hz Pulse Rating | 50-250Hz AC Frequency
13.6 KVA Rating | 17.1A Input Current (Effective)
17 KVA Recommended Generator Size
DC Output Current = 5-315A | AC Output Current = 10-315A
Trolley Mounting Option Available
580mm Length | 240mm Width
440mm Height | 38kg Weight
