XTT 212 Di & XTT 315 Di
- News, Product Releases
- Published:

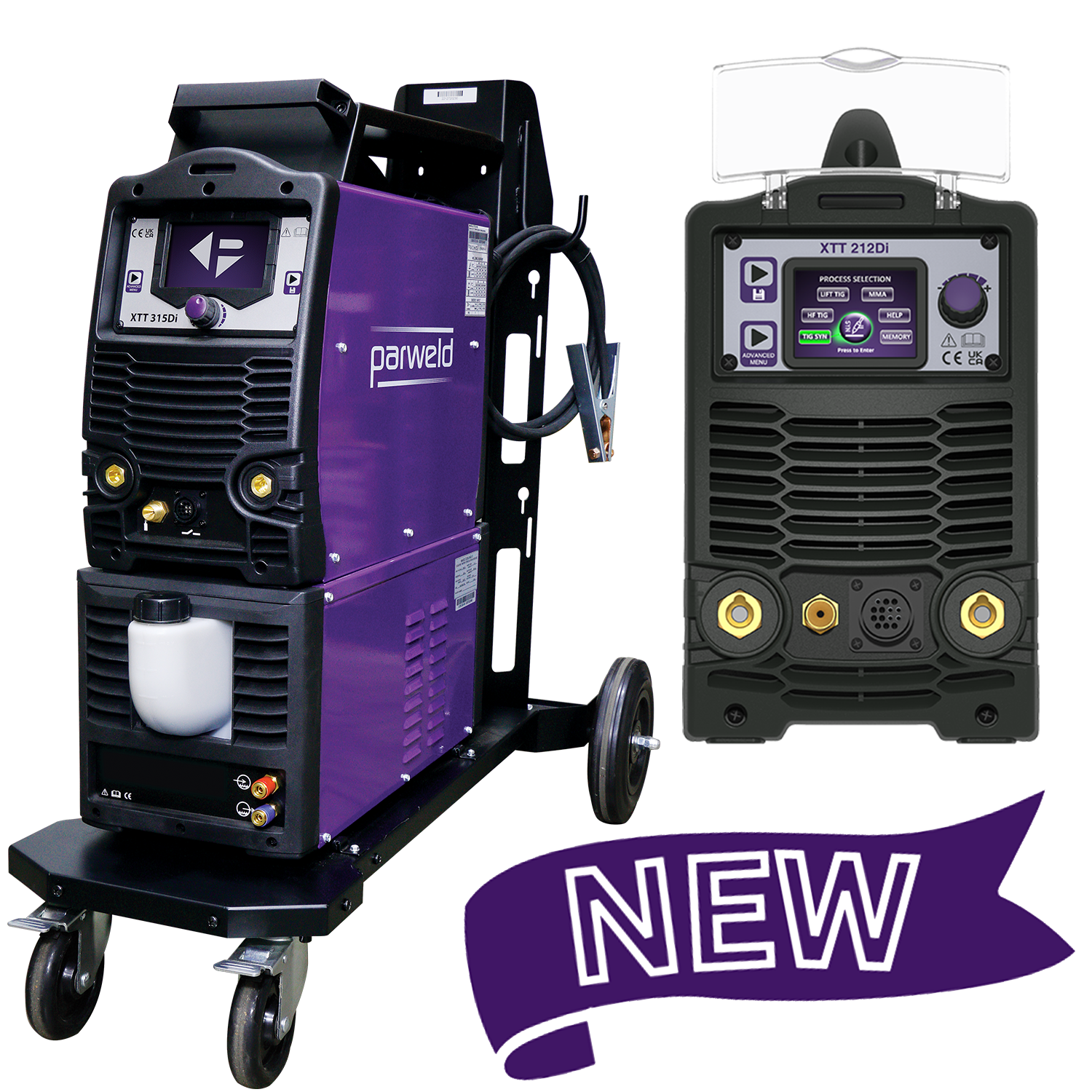

Parweld unveils the XTT212Di and the XTT315Di TIG Power Source Welding Machines.
Both TIG Inverters are fitted with a Digital Interface, Pulse Function, AC/DC output and both capable of TIG and MMA Stick Welding.
Parweld unveils the XTT212Di and the XTT315Di TIG Power Source Welding Machines.
Both TIG Inverters are fitted with a Digital Interface, Pulse Function, AC/DC output and both capable of TIG and MMA Stick Welding. Both do TIG Pulsed, HF Start TIG, Spot TIG, Stitch TIG and TIG Lift Arc with 2T/4T Trigger Latching. Water Cooled or Air Cooled Options for both. Constant Current control for TIG and MMA Applications. Will work with 50Hz or 60Hz supply.
Technical Information
XTT212Di Overview
AC/DC Pulsed TIG Inverter with Digital Interface
The XTT 212Di single-phase TIG Inverter is capable of HF TIG, Lift TIG, and MMA welding. This dual voltage
compact and lightweight machine has a multi-language digital user interface, which rapidly gets you to the
correct machine setting with minimal process knowledge, on site or in the workshop. A synergic control option
in TIG mode further simplifies the set up process. Advanced settings for each process can be accessed from
the front panel. There is also a memory option that allows you to save and recall up to 6 welding jobs. Inverter
technology delivers significant power savings over conventional transformer based machines.
The XTS 908 Unit Attachment allows for the option of water cooling the TIG Power Source Machine.
AC/DC Pulsed TIG Inverter with Digital Interface
The XTT 212Di is the successor to the XTT 212P. This single-phase TIG Inverter is capable of HF TIG, Lift TIG, and MMA welding. This dual voltage compact and lightweight machine has a multi-language digital user interface, which rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop. A synergic control option in TIG mode further simplifies the set up process. Advanced settings for each process can be accessed from the front panel. There is also a memory option that allows you to save and recall up to 6 welding jobs. Inverter technology delivers significant power savings over conventional transformer based machines. The XTS 908 Unit Attachment allows for the option of water cooling the TIG Power Source Machine.
XTT315Di Overview
AC/DC Pulsed TIG Inverter with Digital Interface
Multiple AC waveforms to suit any application (Triangle, Sine, Square). 5-inch LCD screen, all parameters are displayed real time. Rapid synergic setting or manual configuration of welding parameters. Variable AC frequency from 25 to 250Hz. Optional Integrated machine and water cooler with no water flow alarm. Optional bottle trolley provides mounting for the water cooler and machine. Torch mounted or foot pedal remotes available. Optimisable arc ignition gives the best arc starting for any condition. Memory function to store your favourite jobs. Soft switching technology delivers high efficiency levels.
AC/DC Pulsed TIG Inverter with Digital Interface
The XTT 315Di Inverter replaces the XTT 353P Machine. A Three Phase 400V Machine equipped with Multiple AC waveforms to suit any application (Triangle, Sine, Square). 5-inch LCD screen, all parameters are displayed real time. Rapid synergic setting or manual configuration of welding parameters. Variable AC frequency from 25 to 250Hz. Optional Integrated machine and water cooler with no water flow alarm. Optional bottle trolley provides mounting for the water cooler and machine. Torch mounted or foot pedal remotes available. Optimisable arc ignition gives the best arc starting for any condition. Memory function to store your favourite jobs. Soft switching technology delivers high efficiency levels.
Features and Specifications
XTT212Di Information
XTT315Di Information
- 110V/230V Dual Voltage
- Single Phase
- Reduced Footprint
- 5-200A DC (230V) Output Current
- 5-140A DC (110V) Output Current
- 10-200A AC (230V) Output Current
- 10-140A AC (110V) Output Current
- TIG Welds Any Metals Up To 6mm
- Variable Frequency For Faster Welding
- Multi-Wave AC TIG
- Square Wave AC TIG Mode
- Pulse Function For Superior Arc Control
- 200A @ 30% Duty Cycle
- 140A @ 40% Duty Cycle
- 0.5-200Hz Pulse Frequency
- 50-250Hz AC Frequency
- 16A (32A) Minimum Fuse Rating
- 6.4 KVA
- 9 KVA Generator Size (Requires AVC)
- 460mm x 170mm x 320mm (L x W x H) Machine Size
- 12kg Machine Weight
- IP23S Enclosure Protection
- 400V Single Voltage
- Three Phase
- 5-350A DC Output Current
- 10-350A AC Output Current
- TIG Welds Any Metals Up To 8mm
- Variable Frequency For Faster Welding
- Multiple AC Waveforms
- Square Wave AC TIG Mode
- Pulse Function For Superior Arc Control
- 315A @ 50% Duty Cycle
- 0-10s Up Slope Function
- 0-10s Down Slope Function
- 0-10s Pre-Flow Function
- 0-10s Post-Flow Function
- 0.5-200Hz Pulse Frequency
- 50-250Hz AC Frequency
- 16A Minimum Fuse Rating
- 13.6 KVA
- 17 KVA Generator Size (Requires AVC)
- 580mm x 240mm x 440mm (L x W x H) Machine Size
- 38kg Machine Weight
- IP23S Enclosure Protection
XTT212Di
- 110V/230V
- Single Phase
- 5-200A DC (230V), 5-140A DC (110V) Output Current
- 10-200A AC (230V), 10-140A AC (110V) Output Current
- TIG Welds Any Metals Up To 6mm
- Reduced Footprint
- Multi-Wave AC TIG
- Pulse Function For Superior Arc Control
- 200A @ 30% Duty Cycle
- 140A @ 40% Duty Cycle
- 0.5-200Hz Pulse Frequency
- 50-250Hz AC Frequency
- 16A (32A) Minimum Fuse Rating
- 6.4 KVA
- 9 KVA Generator Size (Requires AVC)
XTT315Di
- 400V
- Three Phase
- 5-350A DC Output Current
- 10-350A AC Output Current
- TIG Welds Any Metals Up To 8mm
- Variable Frequency For Faster Welding
- Multiple AC Waveforms
- Pulse Function For Superior Arc Control
- 315A @ 60% Duty Cycle
- 0.5-200Hz Pulse Frequency
- 25-250Hz AC Frequency
- 16A Minimum Fuse Rating
- 13.6 KVA
- 17 KVA Generator Size (Requires AVC)
XTT212Di & XTT315Di Capabilities
- Lift TIG
- HF TIG
- Square Wave AC TIG
- TIG DC Mix
- Pulsed TIG
- Superior Arc Control
- 2T/4T Trigger Latching
- Spot TIG Welding
- Stitch TIG Welding
- MMA Stick Welding
Recommended TIG Welding Torches
PRO-Grip™ 350A DC, 260A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber Material.
Ideal For XTT 315 Di
PRO-Grip™ 250A DC, 190A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber Material.
Ideal For Both Machines
PRO-Grip™ 200A DC, 150A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber or 2 Piece Material.
Ideal For XTT 212 Di
PRO-Grip MAX™ 18
Water Cooled Torch
PRO-Grip™ 350A DC, 260A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber Material.
Ideal For XTT 315 Di
PRO-Grip MAX™ 20
Water Cooled Torch
PRO-Grip™ 250A DC, 190A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber Material.
Ideal For Both Machines
PRO-Grip MAX™ 26
Air Cooled Torch
PRO-Grip™ 200A DC, 150A AC @ 100% Duty Cycle, available with a Cable Length of 12 Foot / 3.8 Metres or 25 Foot / 7.6 Metres in Rubber or 2 Piece Material.
Ideal For XTT 212 Di
