APT 220C Machine
200A Pulse MIG Machine
APT 220C Machine
200A Pulse MIG Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
Advanced Power Technology Professional Multi-Process Pulse Welding Power Source Machine with optional Rapid or Pro Panels. 230V Single Phase 200A DC Machine.
Multi process capability MIG, TIG, MMA, MIG Programs provide user with MIG Program’s for use with the most common Steels, Stainless Steels and Aluminium. These can be used in pulse and double pulse modes as well as APT Deep program for Steels.
Pulsed MIG Welding is a process where the Power Source switches between a high and low current extremely fast. The advantage is a smooth spatter free weld with reduced overall heat input.
| Weight | 23 kg |
|---|---|
| Dimensions | 578 × 243 × 392 mm |
| Pulse | Double Pulse Mode, Single Pulse |
| Machine Style | Compact, Portable, Professional Welding |
| Machine Type | Advanced Pulse MIG |
| Maximum Current | 200A DC |
| Duty Cycle | 110A @ 60% Duty Cycle, 200A @ 25% Duty Cycle, 90A @ 100% Duty Cycle |
| Input Voltage | 230V 1P |
| Amp Range | 20-200A |
| Open Circuit Voltage | 68VDC |
| Maximum Input Power (kVA) | 7.2V |
| Output | DC |
| Program Memory Capacity | Up to 99 |
| Welding Programs | 300 Jobs (PRO), 40 Jobs (RAPID) |
| Spool Size | 300mm (15kg) |
| Phase | Single Phase |
| Trigger | Smart Trigger Function |
| Generator Size (Requires AVC) | 7.22 KVA |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, Smart Efficent Fan, Water (with Unit Attachment) |
| Comes With | 2m Gas Supply Hose, 2m Ground Cable, 3m Chassis Cable, 3m Mains Cable, CKC203I Work Return Lead (3m), D/Roll 0.8-1.0 V Groove, D/Roll 1.0-1.2 U Groove |
| Special Features | 35% Energy Saving, Digital Display, High Speed Communication, Ideal for Advanced Professional Welding, Sputter Free Weld, Stable Arc Characteristic during welding, Synergic Control |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
Share Product Via:
Featured Products:
Related products
-
APT 403S Machine
400A Pulse MIG Machine
-
XR937H Welding and Grinding Helmet
Full Face Coverage & Variable Sensitivity
-
XP CrMo1Si (ER 80S-G) Wire
Creep Resistant MIG Wire
-
XP 4Mo (ER80S-D2) Wire
Creep Resistant MIG Wire
You may also like…
-
APT+ 220C Machine
200A Pulse MIG Machine
-
APT Components
Parts and Spares for APT Machines
-
APT+ 353C Machine
350A Pulse MIG Machine
-

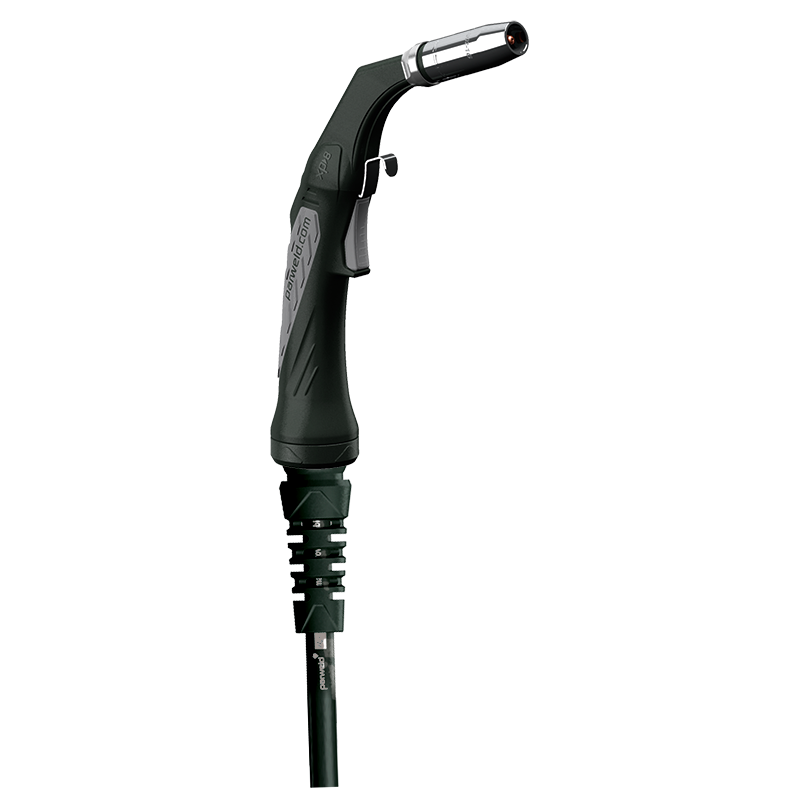

XP8 200A
