APT+ 220C Machine
200A Pulse MIG Machine
APT+ 220C Machine
200A Pulse MIG Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
Advanced Power Technology + Machine with 230V mains voltage. Professional Multi-Process Pulse Welding Power Source allowing users to undertake MIG, TIG and MMA (Electrode) Welding Processes within a single machine.
- It provides welding without splatter by means of Synergic, Pulse.
- Comes with APT+ M Root, Deep, Cold, Position, Stabi and Pipe programs.
- Equipped with special programs for Steel / CrNi / Aluminum / Copper welding.
- Digital display and easy-to-use front panel, allows the welder to adjust all values from the wire feeder.
- Encoder drivemotor and 4×4 wire feed unit ensure stable arc formation. Especially with aluminum wires.
- APT+M Pulse Inverter Technology, delivers up to 35% energy saving.
- Stable arc characteristic accross a wide range of processes
| Weight | 26.5 kg |
|---|---|
| Dimensions | 450 × 245 × 610 mm |
| Pulse | Double Pulse Mode, Single Pulse |
| Machine Style | Compact, Portable, Professional Welding |
| Machine Type | Advanced Pulse MIG |
| Maximum Current | 200A DC |
| Duty Cycle | 110A @ 60% Duty Cycle, 200A @ 25% Duty Cycle, 90A @ 100% Duty Cycle |
| Input Voltage | 230V 1P |
| Amp Range | 20-200A |
| Open Circuit Voltage | 75VDC |
| Maximum Input Power (kVA) | 7.2V |
| Output | DC |
| Spool Size | 300mm (15kg) |
| Phase | Single Phase |
| Welding Programs | Aluminium Welding, Copper Welding, CrNi Welding, Steel Welding |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, Smart Efficent Fan |
| Comes With | 2m Gas Supply Hose, 3m Mains Cable, CKC203I Work Return Lead (3m), D/Roll 0.8-1.0 V Groove |
| Special Features | 35% Energy Saving, Digital Display, High Speed Communication, Ideal for Advanced Professional Welding, Stable Arc Characteristic during welding, Synergic Control, Encoder drivemotor and 4×4 wire feed unit, Spatter Free Weld |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
Share Product Via:
Featured Products:
Related products
-
APT+ 503S Machine
500A Pulse MIG Machine
-
XTS 907 Water Cooler
High Performance Unit
-
XTE 181C
185A Automotive MIG Machine
-
XTM 201Di
200A 3 in 1 Multi-Process Inverter Machine
You may also like…
-
APT+ 353C Machine
350A Pulse MIG Machine
-
Welding Helmet
Variable Sensitivity and Full Face Coverage
-
PRO-Grip Max™ 250A
Air Cooled MIG Torch, with Flex Neck Option
-

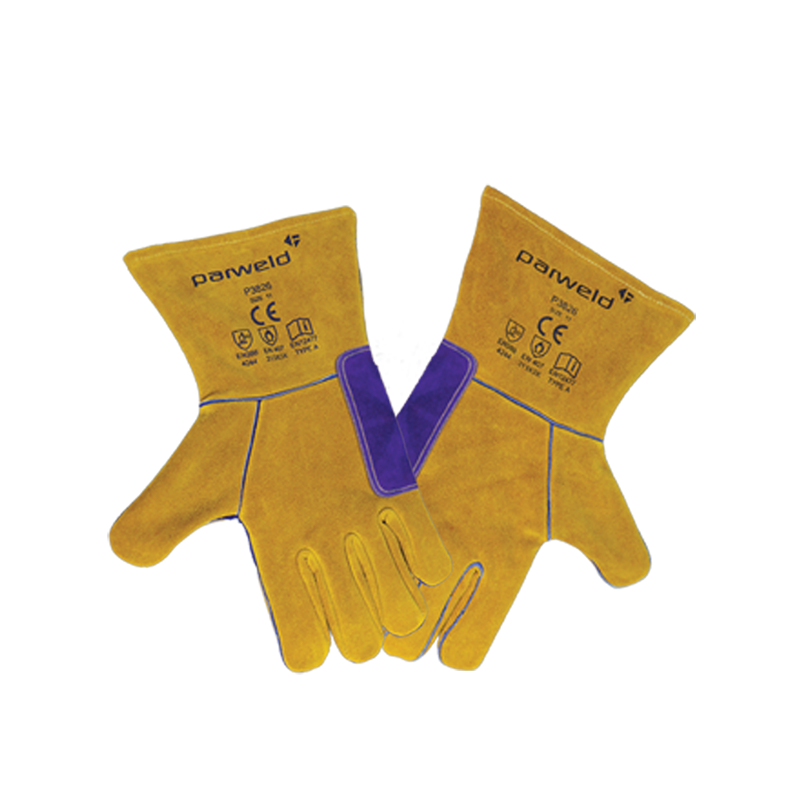

Reversible Gauntlets
