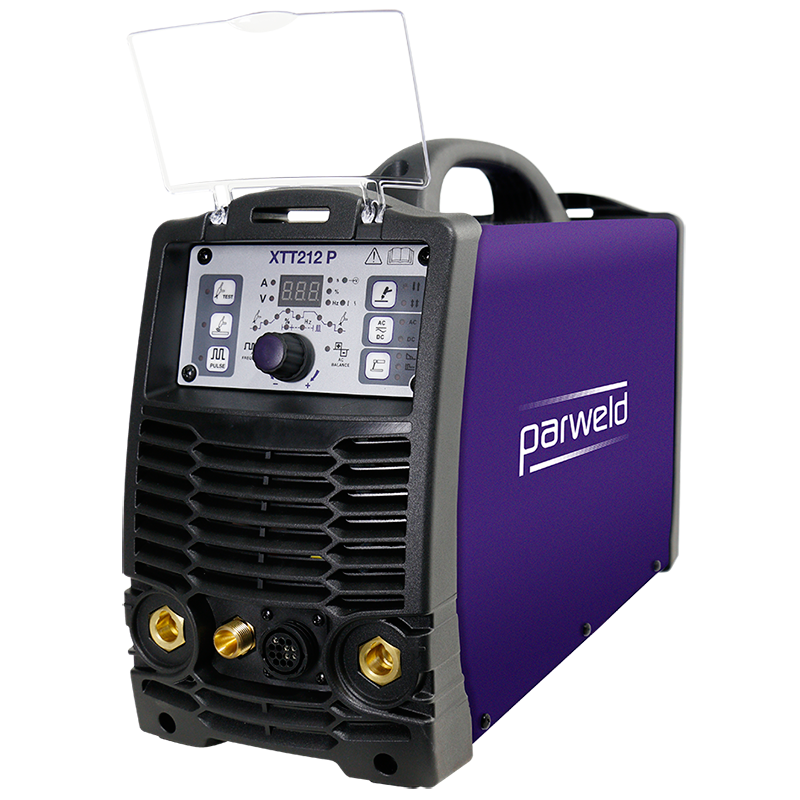

XTT 212P AC/DC Pulsed
200A TIG Inverter Machine
XTT 212P AC/DC Pulsed
200A TIG Inverter Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
This Product is no longer available. Please see our new XTT 212Di TIG Inverter.
This dual voltage compact machine offers the user the benefits of a 230V workshop machine with the flexibility of 110V site machine. Compared with the XTT202 AC/DC the XTT212 has a 40% smaller footprint but packs the same punch. Simple intuitive one knob control allows for rapid program setting. The XTT212 machine works with digital and analogue on torch current controls and has foot control option.
Key Features Include:
- Pulse Function To Superior Arc Control
- Square Wave AC TIG
- 110V or 230V Input
- TIG Welds Any Metal Up To 6mm
- Reduced Footprint
- Variable Frequency for Faster Welding
| Weight | 12 kg |
|---|---|
| Dimensions | 460 × 170 × 320 mm |
| Phase | Single Phase |
| Machine Style | Compact |
| Machine Type | Inverter |
| Maximum Current | 10-140A AC, 10-200A AC, 5-140A DC, 5-200A DC |
| Output Current for 230V | 5-200A DC, 10-200A AC |
| Output Current for 110V | 5-140A DC, 10-140A AC |
| Duty Cycle | 140A @ 40% Duty Cycle, 200A @ 25% Duty Cycle |
| Input Voltage | 110V 1P, 230V 1P |
| Input Current (Eff) | 17.5A, 21A |
| Output | AC, DC |
| Pulse Frequency | 0.5-200Hz |
| AC Frequency | 50-250Hz |
| Minimum Fuse Rating | 16A, 32A |
| KVA | 3.6 |
| Generator Size (Requires AVC) | 5 KVA |
| Cooling | Air, Fan, Forced |
| Enclosure Protection | IP23S |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose |
| Ideal for Applications | Aluminium Fabrication, Light Industrial Manufacturing, Sheet Metal Work, Stainless Steel Fabrication, Training |
| Special Features | Pulse Function to Superior Arc Control, TIG Mode, Variable Frequency for Faster Welding |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
