New XTM Machines: 405 and 505
  • News, Product Releases
  • Published:
XTM405i & XTM505i MIG Inverter Power Source Units - Multi-Process MIG, Lift TIG and MMA Welding

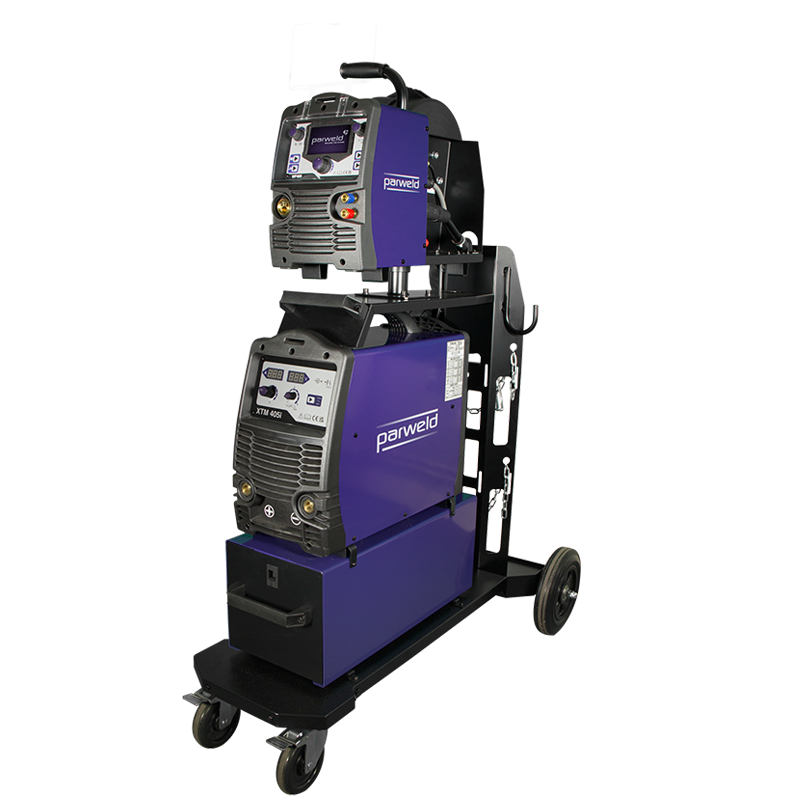

XTM 405 i

The XTM 405i three-phase MIG Inverter is a high-performance multi-process power source capable of MIG, Lift TIG, and MMA welding. Trolley mounted with a storage drawer and separate wire feeder with a large interactive colour screen. The machine has synergic control in MIG mode, so all welding parameters will adjust automatically when the material thickness is changed, making it easy to operate. Inverter technology delivers significant power savings over conventional step MIG machines. The XTM 405i can be upgraded to a water cooled set by swapping the drawer for a water cooler.

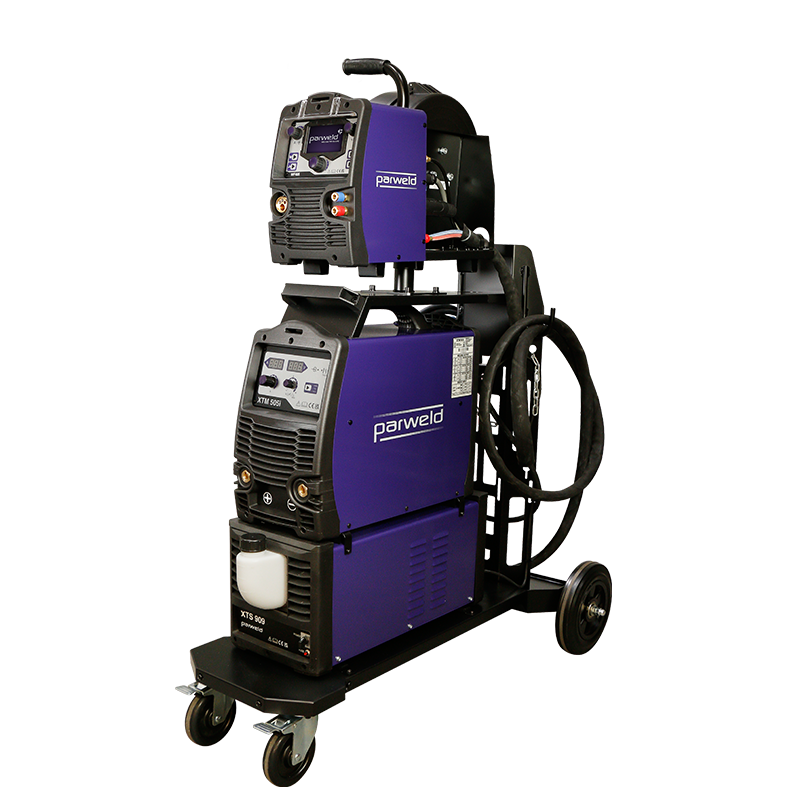

XTM 505 i

The XTM 505i three-phase MIG Inverter is a high-performance multi-process power source capable of MIG, Lift TIG, and MMA welding. Trolley mounted with water cooler and separate wire feeder featuring a large interactive colour screen. The machine has synergic control in MIG mode, so welding parameters will adjust automatically when the material thickness is changed, making it easy to operate. Inverter technology delivers significant power savings over conventional step MIG machines.
Scroll Down To View
Technical Information
XTM 405i vs XTM 505i

405 Specifications Include:

  • 400A Maximum Current @ 60% Duty Cycle
  • Three Phase
  • 400V Input
  • Multi-Process
  • MIG, Lift TIG and MMA
  • 2T/4T Trigger Latching for MIG Welding
  • MIG Voltage Range of 15.0 – 34.0 Volts
  • Synergic Control for MIG Welding
  • 22 KVA
  • Generator Size of 25 KVA
  • 21.2A Input Current (Eff) for MIG Welding
  • Fan On Demand
  • Ready Assembled to Trolley (with Built-In Drawer Unit)
  • Upgradeable Water Cooler Unit Attachment mounted to the Trolley, in replace of Drawer Unit

505 Specifications Include:

  • 500A Maximum Current @ 60% Duty Cycle
  • Three Phase
  • 400V Input
  • Multi-Process
  • MIG, Lift TIG and MMA
  • 2T/4T Trigger Latching for MIG Welding
  • MIG Voltage Range of 15.0 – 39.0 Volts
  • Synergic Control for MIG Welding
  • 26 KVA
  • Generator Size of 30 KVA
  • 26.4A Input Current (Eff) for MIG Welding
  • Fan On Demand
  • Ready Assembled to Trolley
  • XTS909 Water Cooler Unit Attachment mounted under the Power Source Machine to bottom of the Trolley

Both Power Source Machines are Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant

WF405 Features and Specifications

Specifications Include:

  • Spool Size – 300mm (15kg) and 200mm (5kg)
  • Feed Box – 4 Roll
  • Wire Size – 1.0mm – 1.6mm
  • Large Graphical User Interface (UI) with interactive colour screen
  • Easy Setting of the MIG Parameters
  • Memory Function allows MIG Welding Programs to be saved and recalled
  • Wire Feed Inching button
  • Gas Purge button
  • Clear Visor for front panel protection
WF405 Digital Screen Displays
Gas Selection Screen
Language Selection Screen
Process Selection Screen
Wire Diameter Screen
Material Thickness Selection Screen
WF405 - Wire Feeder
Wire Diameter Screen
WF405 - Wire Feeder
Process Selection Screen
WF405 - Wire Feeder
Material Thickness Selection Screen
WF405 - Wire Feeder
Language Selection Screen
WF405 - Wire Feeder
Gas Selection Screen

Inverter technology delivers significant power savings over conventional step MIG machines.

Dimensions of Assembly
XTM505i MIG Inverter Power Source Unit
Length

1100mm

43.3 inches

Width

600mm

23.6 inches

Height

1400mm

55.11 inches

Weight

90kg

Enclosure Protection

IP23S

  • Length – 1100mm
  • Width – 600mm
  • Height – 1400mm
  • Weight – 90kg
  • Enclosure Protection – IP23S
