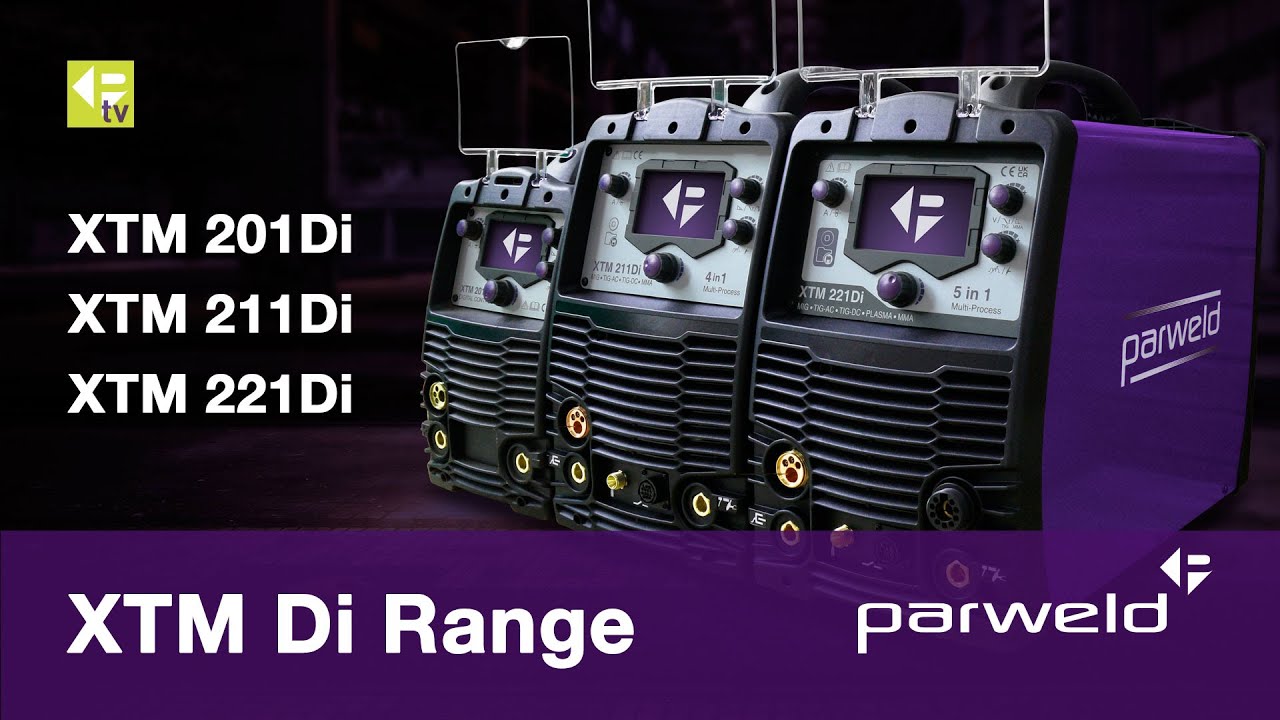

New XTM221Di 5-in-1 Multi-Process Inverter
- News, Product Releases
- Published:
Processes = MIG, Plasma, MMA, TIG AC & TIG DC
The XTM 221Di MIG Inverter is ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG and MMA processes, and cutting and gouging using the Plasma process. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the MIG, TIG & PLASMA processes with one touch of the torch trigger makes it well suited to multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop.
XTM221Di Technical Information
Features and Specifications
Key Features Include:
- Portable Inverter Machine

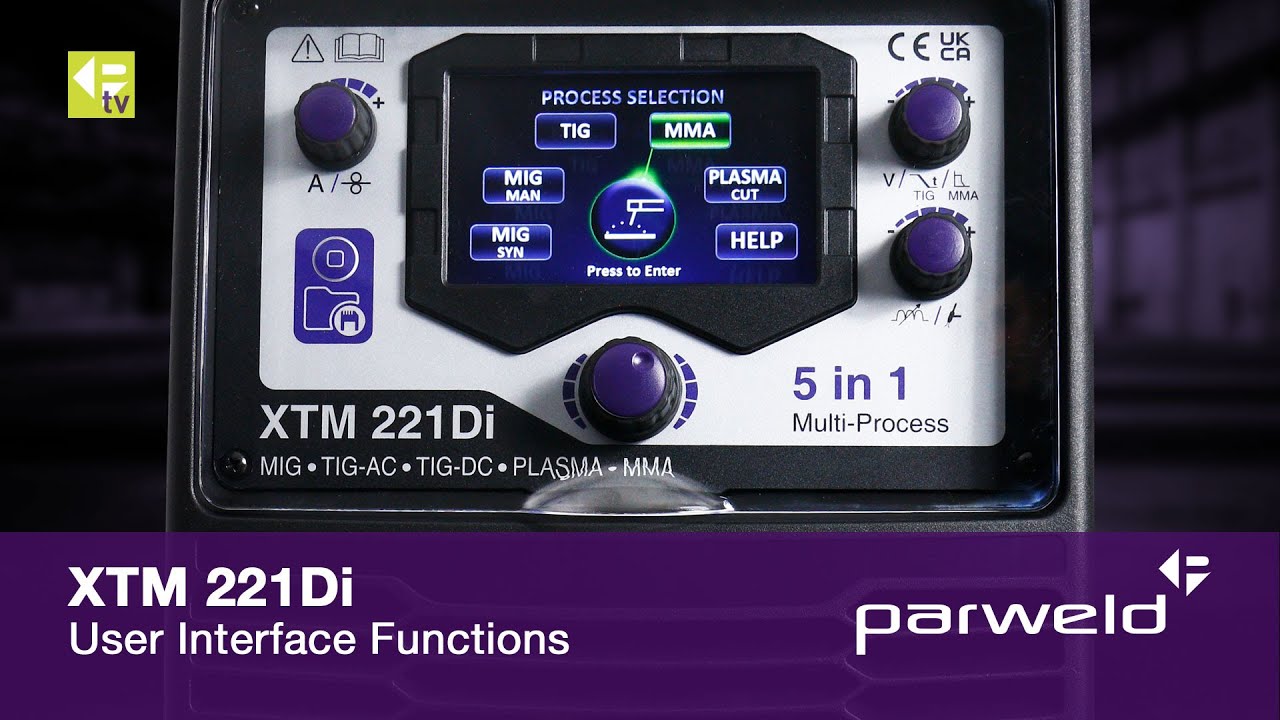

- Large high quality colour screen with multi-language easy to follow digital interface
- View and adjust machine parameters from the MIG torch handle (*OLED torch optional extra)
- HF Start TIG X Instant swapping between MIG, TIG and Plasma process with one touch of the torch trigger
- Rapid synergic setup for MIG, TIG, MMA, PLASMA
- MIG Weld, down to 0.9mm thick material
- Memory function for all processes to save and recall welding programs
- Supplied with MMA lead set, input cable and 3 gas hoses
- Pulse TIG function for superior arc control
- Dual voltage 110 / 230V
- Welding Capacity 6mm (230V input)
Specifications Include:
- Spool Size – 300mm (15kg) and 200mm (5kg)
- Feed Box – 4 Roll
- Wire Size – 0.6mm – 1.0mm
- Duty Cycle (MIG) – 200A @ 30%
- Input Voltage – 110V / 230V (Smart Switching
- Minimum Fuse Rating 32A (110V) and 16A (230V)
- KVA – 3.7
- Generator Size – 7 KVA
- Enclosure Protection – IP23S
Specifications Include:
- Output Current –
- MIG – 140A (110V) and 200A (230V)
- TIG – 140A (110V) and 200A (230V)
- MMA – 110A (110V) and 200A (230V)
- Plasma – 25A (110V) and 40A (230V)
- Spool Size – 300mm (15kg) and 200mm (5kg)
- Feed Box – 4 Roll
- Wire Size – 0.6mm – 1.0mm
- Duty Cycle (MIG) – 200A @ 30%
- Input Voltage – 110V / 230V (Smart Switching)
- Input Current –
- MIG – 19.4A (110V) and 14.4A (230V)
- TIG – 17.7A (110V) and 12.5A (230V)
- MMA – 21.8A (110V) and 16.2A (230V)
- Plasma – 21.9A (110V) and 16.0A (230V)
- Minimum Fuse Rating 32A (110V) and 16A (230V)
- KVA – 3.7
- Generator Size – 7 KVA
- Enclosure Protection – IP23S
Output Current
Input Current
Previous
Next
Previous
Next
Welding Capacity
MIG
Wire Size = 0.6/0.8/0.9/1.0
Material Range = 0.6-6.0mm (10mm)*
Wire Size = 0.8/1.0
Material Range = 0.8-9.0mm
Wire Size = 0.9/1.0
Material Range = 1.0-5.0mm
Wire Size = 1.0-1.2
Material Range = 1.0-6.0mm (8mm)*
TIG
Material Range = 0.8-6.0mm (10mm)*
Material Range = 0.8-6.0mm (12mm)*
Material Range = 0.6-6.0mm (8mm)*
MMA
Wire Size = 2.5/3.2/4.0
Material Range = 1.5-7.0mm
Wire Size = 2.5/3.2/4.0
Material Range = 1.5-7.0mm
PLASMA
Material Range = 0.5-20.0mm
Material Range = 0.5-20.0mm
Material Range = 0.5-12.0mm
Note:
1) Recommended material range is 0.6 to 6mm for best performance.
2) *Absolute maximum for short periods.
3) Capacity is reduced when operating on 110V input
4) Production Cut Capacity 12mm
5) Severance Cut Capacity 20mm
2) *Absolute maximum for short periods.
3) Capacity is reduced when operating on 110V input
4) Production Cut Capacity 12mm
5) Severance Cut Capacity 20mm
Duty Cycles
MIG
110V Input
100A
60%
140A
30%
230V Input
140A
60%
200A
30%
TIG (AC)
110V Input
100A
60%
140A
30%
230V Input
140A
60%
200A
30%
MMA
110V Input
110A
50%
100A
60%
230V Input
140A
60%
200A
30%
PLASMA
110V Input
25A
20%
230V Input
28A
60%
40A
30%
Interface Languages
English
Français
Nederlands
Svenska
Machine Dimensions
XTM221Di
