XTE 201C
205A Automotive MIG Machine
XTE 201C
205A Automotive MIG Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
Compact Automotive 230V Single Phase MIG Transformer Power Source Machine from Parweld. The XTE 201C cabinet can accept a gas cylinder and its large wheels mean it is easily portable and can be moved from job to job, making the welding machine very versatile. The XTE 201C has a DC Output and when combined with the correct type of wire it is suitable for welding mild steel, stainless steel and aluminium. 8 voltage steps allow fine tuning. The feed box ensures reliable feeding of 0.6mm and 1.0mm wires.
Key Features Include:
- 230V Single Phase Machine
- Euro Torch Connector
- 205A @ 15% Duty Cycle
- 2 Roll Drive (Metal Feed Box)
- 8 Voltage Steps
- Stand for gas cylinder (half bottle)
- Polarity can be changed for gasless welding
- Built in gas valve
- Forced Air Fan Cooling
- Overload warning indicator
- Infinitely variable wire speed
- Holds 5kg wire spools
- Supplied with 3m Earth Lead
| Weight | 42.8 kg |
|---|---|
| Dimensions | 705 × 420 × 630 mm |
| Phase | Single Phase |
| Machine Style | Compact |
| Machine Type | Transformer |
| Maximum Current | 205A DC |
| Duty Cycle | 205A @ 15% Duty Cycle |
| Voltage | 19.5-38V |
| Voltage Steps | 8 |
| Input Voltage | 230V 1P |
| Input Current (Eff) | 38A |
| Feed Box | 2 Roll Drive, Metal Box |
| Output | DC |
| Wire Feed Speed | 1.5-14mm/min, Infinitely Variable |
| Wire Size | 0.6-1.0mm |
| Spool Size | 300mm (15kg) |
| Minimum Fuse Rating | 32A |
| KVA | 8.75 |
| Generator Size (Requires AVC) | 15 KVA |
| Enclosure Protection | IP21S |
| Cooling | Air, Fan, Forced |
| Comes With | 3m Earth Lead, Euro Torch Connector, Stand for Gas Cylinder |
| Ideal for Welding | Aluminium, Mild Steel, Stainless Steel |
| Special Features | Built in Gas Valve, Ease of Movement, Large Wheels, Overload Warning Indicator |
1 review for XTE 201C
Share Product Via:
Featured Products:
Related products
-
XTM 356i
350A MIG Inverter Machine
-
XTM 256i
250A MIG Inverter Machine
-
-

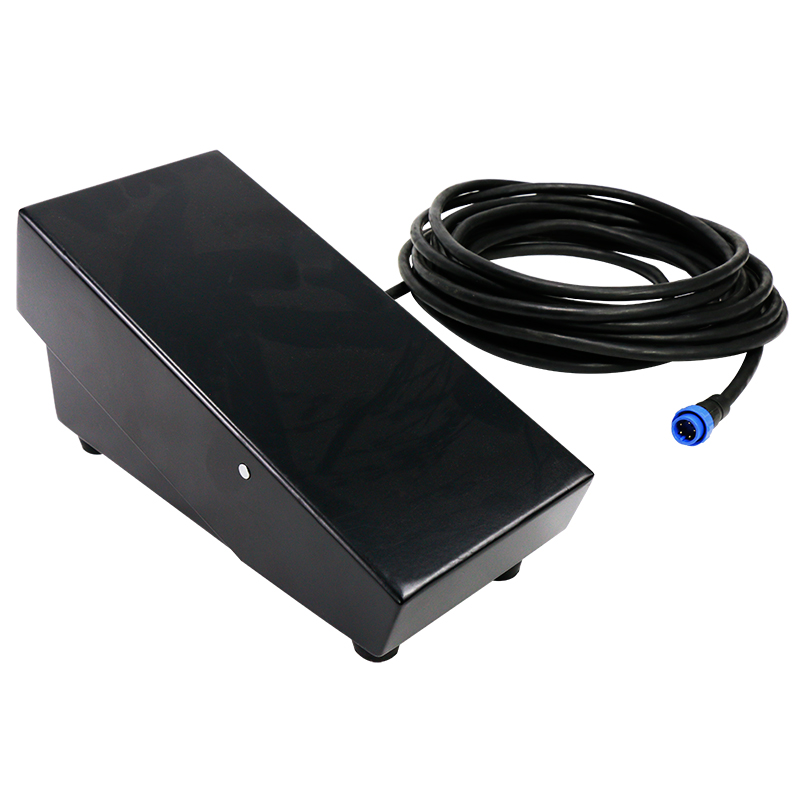

Foot Control
