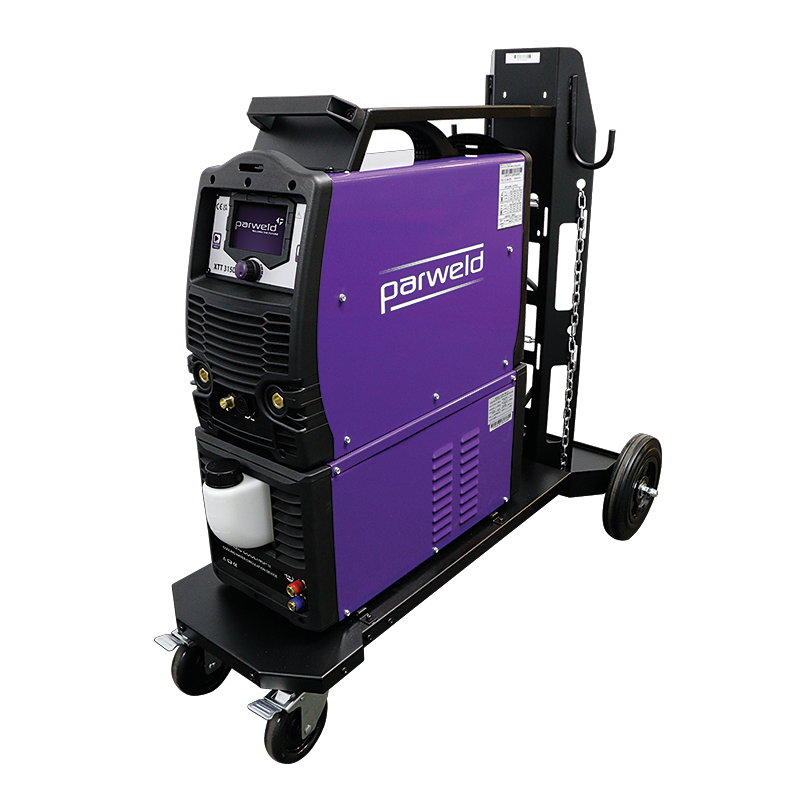

XTT 315Di AC/DC Pulsed
315A Multi-Wave TIG Inverter Machine
XTT 315Di AC/DC Pulsed
315A Multi-Wave TIG Inverter Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
The XTT 315Di can be used in both AC and DC modes for TIG or MMA welding allowing the welding of virtually any metal.
Multi-wave AC output and power pulsing maximises productivity whilst reducing heat output.
The majority of steels can be welded in DC mode quickly using the pulse power function. The AC mode allows the welding of aluminium and magnesium alloys.
Multi-wave output using Sine Triangle or Square wave allows precise heat and bead profile control. DC mix mode provides high speed welding.
The XTT 315Di is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators.
Key Features Include:
- Three Phase
- 400V Input Voltage
- Multi-Wave AC
- 315A @ 60% Duty Cycle
- Variable Pulse Frequency
- Variable AC Frequency
- Square Wave AC TIG Mode
- HF Arc Starting
- Spot Weld Capabilities
- Full TIG Parameter Adjustment
- Digital Interface Control

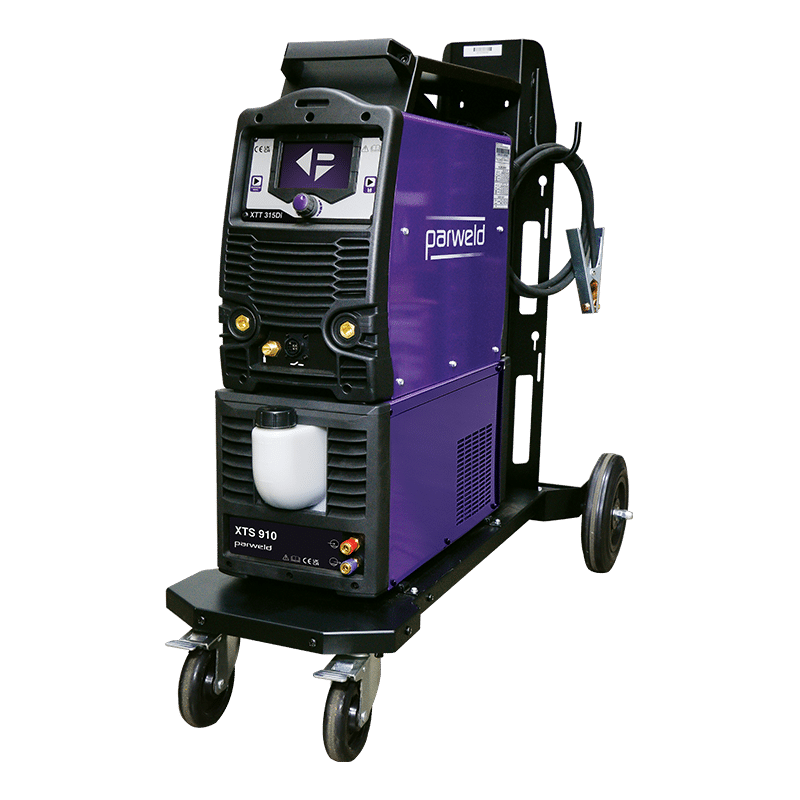

- Includes Water Cooler Unit Attachment & Trolley
| Weight | 38 kg |
|---|---|
| Dimensions | 580 × 240 × 440 mm |
| Phase | Three Phase |
| Machine Style | Portable |
| Machine Type | Inverter |
| Maximum Current | 315A DC |
| Output Current | 5-315A DC, 10-315A AC |
| Duty Cycle | 315A @ 50% Duty Cycle |
| Input Voltage | 400V 3P |
| Input Current (Eff) | 17.1A |
| Output | AC, DC |
| Up Slope Function | 0-10s |
| Down Slope Function | 0-10s |
| Pre-Flow Function | 0-10s |
| Post-Flow Function | 0-10s |
| Pulse Frequency | 0.5-200Hz |
| AC Frequency | 50-250Hz |
| Minimum Fuse Rating | 16A |
| KVA | 13.6 |
| Generator Size (Requires AVC) | 17 KVA |
| Cooling | Air, Fan, Forced, Water (with Unit Attachment) |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose |
| Special Features | 2T/4T Trigger Latching, Digital Control, Digital User Interface, Generator Friendly, Lift TIG and MMA, Pulse TIG function for superior arc control, TIG Mode, HF TIG, Multi-Wave AC, Spot Weld, Synergic Control For TIG Welding |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
