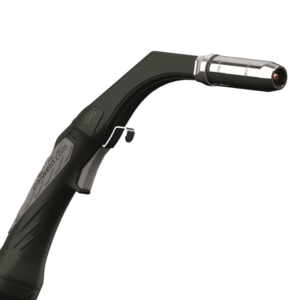

Xp8 MIG/MAG Torches
High-Performance Welding Torches From Parweld
Modern high-volume manufacturing leaves very little margin for heat buildup, operator fatigue, or thermal breakdown. By rethinking traditional air-cooled torch design, the XP8 bridges the gap between traditional manual welding setups and the rigorous performance demands of current pulse-MIG power sources and high-deposition wires. Rather than treating the torch as a simple consumable delivery tool, its design integrates advanced thermal management and ergonomic engineering directly into the welding circuit—delivering water-cooled thermal efficiency in a lighter, air-cooled package that directly addresses modern throughput targets and total cost of ownership.
CONSUMABLE LIFESPAN
Productivity is the key, with the XP8’s industry leading 80% duty cycle on air cooled torches keep welding for longer.
Designed to give a neutral wrist position and reduce RSI risks.
Our patented gas flow technology uses the shielding gas to force cool the contact tip.
Contact tips last twice as long as our competitors.
In 2001, Parweld launched the revolutionary XP8 MIG range, the world’s most productive high-quality welding torch.
When the XP8 was first conceptualised, the goal wasn’t just to make another MIG torch—it was to build the world’s most productive one.
While ordinary air-cooled torches forced welders to stop and let equipment cool down, the XP8 rewrote the rulebook with a staggering 80% duty cycle. How? Through patented material science and fluid dynamics.
The year 2014 marked a major milestone with the arrival of the XP8 G2. These second-generation torches introduced a completely redesigned, upgraded handle system engineered with cutting-edge ergonomics in mind. By studying welder movement, our design team integrated a specific morphology that allows for a neutral wrist position. This anatomical alignment significantly reduces the risk of Repetitive Strain Injury (RSI) during long, demanding shifts. By minimising muscle strain and joint stress, the XP8 G2 doesn’t just protect the welder’s health—it also ensures consistent weld quality and higher productivity from the first hour of a shift to the last.
For More On The History Of Parweld, Including Torches, Machines, PPE And Corporate Changes, Visit Our Timeline Page.
The XP8 Difference

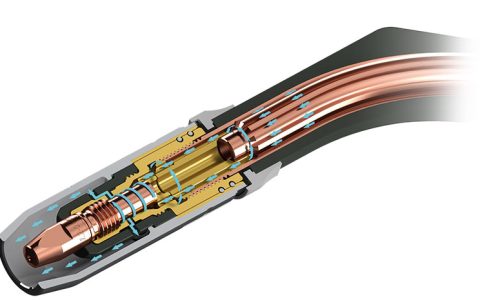

Gas Flow Technology
In conventional air-cooled MIG/MAG torches, shielding gas simply flows through the body and exits the nozzle, doing little to combat the severe radiant heat that travels up the contact tip and neck during heavy welding.
Parweld’s patented internal architecture fundamentally shifts how the gas behaves before leaving the nozzle:
Active Thermal Exchange: Instead of acting as a passive shield, cold incoming shielding gas is rerouted through optimised internal channels directly around the neck housing and contact tip seating area.
Forced Heat Dissipation: The gas absorbs radiant thermal energy directly from the critical high-wear contact zone, effectively force-cooling the copper components before dispersing onto the weld pool.
Preventing Thermal Breakdown: By lowering the peak operating temperature at the very tip of the torch, micro-welding (tip burn-back), soft-tip deformation, and wire-feed jamming are drastically reduced.

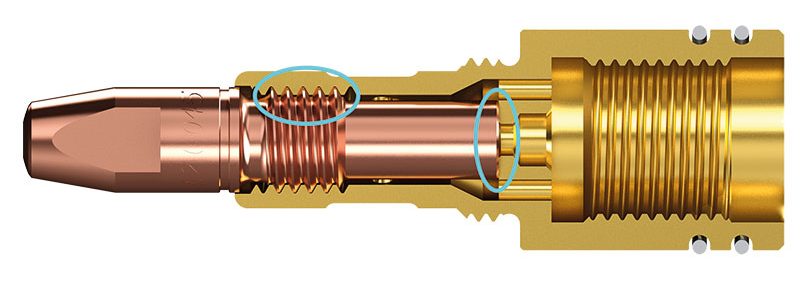

Superior Contact Tips
Conventional MIG contact tips rely on a single, inconsistent point of contact as the wire moves through the bore. This uneven contact causes localised electrical arcing, micro-welding, and rapid bore erosion, leading to unstable arcs and frequent tip failures.
The Parweld XP8 eliminates these failure points through a dual-contact engineering approach paired with advanced metallurgy:
Dual-Point Current Transfer: The internal design enforces continuous, dual-contact seating against the welding wire. By doubling the surface area for electrical transfer, resistance is significantly lowered at the power pick-up point, ensuring smooth, stable arc characteristics and preventing voltage drops.
Elimination of Micro-Arcing: Stable, dual-point contact stops electrical micro-arcing inside the tip bore—the primary cause of tip keyholing, burn-back, and irregular wire feeding.
Synergistic Thermal Defense: Combined with the XP8’s patented forced-gas cooling, the reduced electrical resistance keeps tip temperatures significantly lower. This preserves the hardness of the copper alloy and prevents mechanical wear from wire friction, extending total tip operating life by more than double compared to standard alternatives.

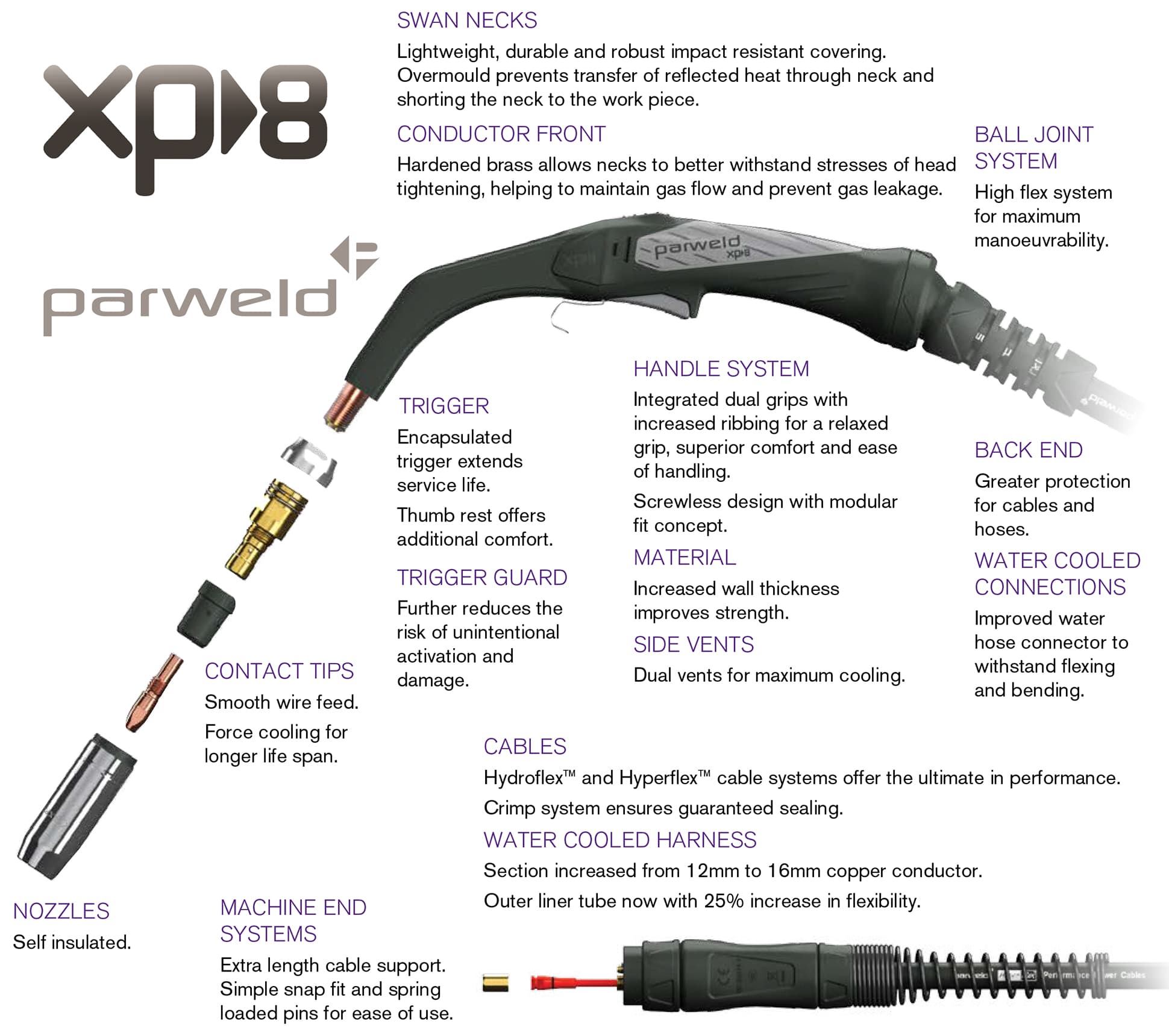

XP8 Torch Structure & Features
Every component in the XP8 has been designed and manufactured using high specification materials, with performance and service life in mind. We focus on the user, and have worked to ensure that every aspect of the torch is simple, efficient and effective.
We continuously innovate to ensure that the XP8 torch is at the forefront of performance and technology.
Swan Necks
Lightweight, durable and robust impact resistant covering. Overmould prevents transfer of reflected heat through neck and shorting the neck to the work piece.
Conductor Front
Hardened brass allows necks to better withstand stresses of head tightening, helping to maintain gas flow and prevent gas leakage.
Nozzles
Self Insulated.
Ball Joint System
High flex system for maximum manoeuvrability.
Contact Tips
Smooth wire feed.
Force cooling for longer lifespan.
Back End
Greater protection for cables and hoses.
Water Cooled Connections
Improved water hose connector to withstand flexing and bending.
Cables
Hydroflex™ and Hyperflex™ cable systems offer the ultimate performance.
Crimp system ensures guaranteed sealing.
Water Cooled Harness
Section increased from 12mm to 16mm copper conductor.
Outer liner tube now with 25% increase in flexibility.
Machine End Systems
Extra length cable support.
Simple snap fit and spring loaded pins for ease of use.
View Liners Available
Trigger and Trigger Guard
Encapsulated Trigger extends service life.
Thumb rest offers additional comfort.
The guard further reduces the risk of unintentional activation and damage.
Side Vents
Dual vents for maximum cooling.
Material
Increased wall thickness improves strength.

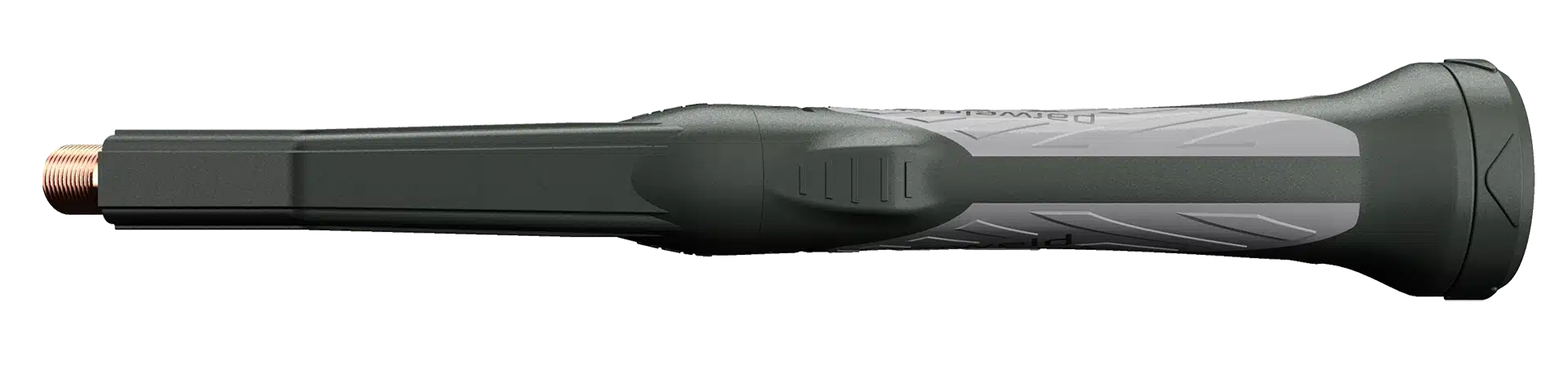

Handle System
Integrated dual grips with increased ribbing for a relaxed grip, superior comfort and ease of handling.
Product Shown: XP450W
Download Image With Annotations
Versatile Configurations
In complex industrial fabrications, force-fitting a standard fixed-angle torch into tight joints or overhead positions leads to awkward operator postures, inconsistent travel speeds, and early wrist fatigue. The Parweld XP8 addresses these spatial challenges through versatile modularity and an adaptable neck design:

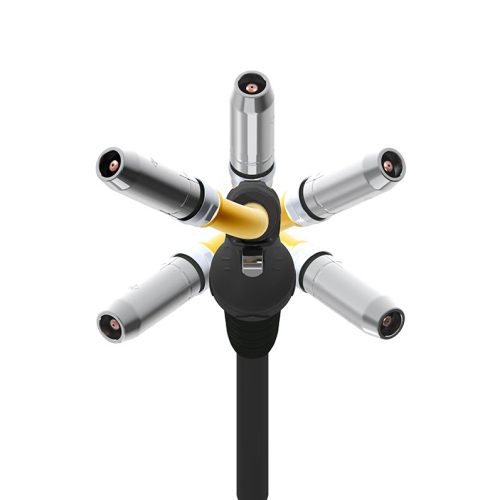

360° Fully Rotating Neck: Operators can adjust the angle of the torch neck dynamically relative to the handle without loosening internal electrical connections or interrupting gas flow. This allows seamless access to awkward joints, pipe passes, and tight corners while keeping the main handle in an ergonomically neutral grip.
Ergonomic Strain Reduction: By re-orienting the torch neck rather than twisting the wrist or bending the heavy main cable package, muscle fatigue and Repetitive Strain Injury (RSI) risks are drastically minimised over long shifts.
Customisable Cable Lengths & End Fittings: The XP8 system accommodates various production environments with customisable cable lengths (3m, 4m, and 5m options) equipped with high-flex Hyperflex® assemblies.
Tailored Power & Connector Modules: Available in both air-cooled and water-cooled configurations with universal Euro-style central connectors or machine-specific rear terminations, ensuring direct compatibility with virtually any industrial wire feeder setup.

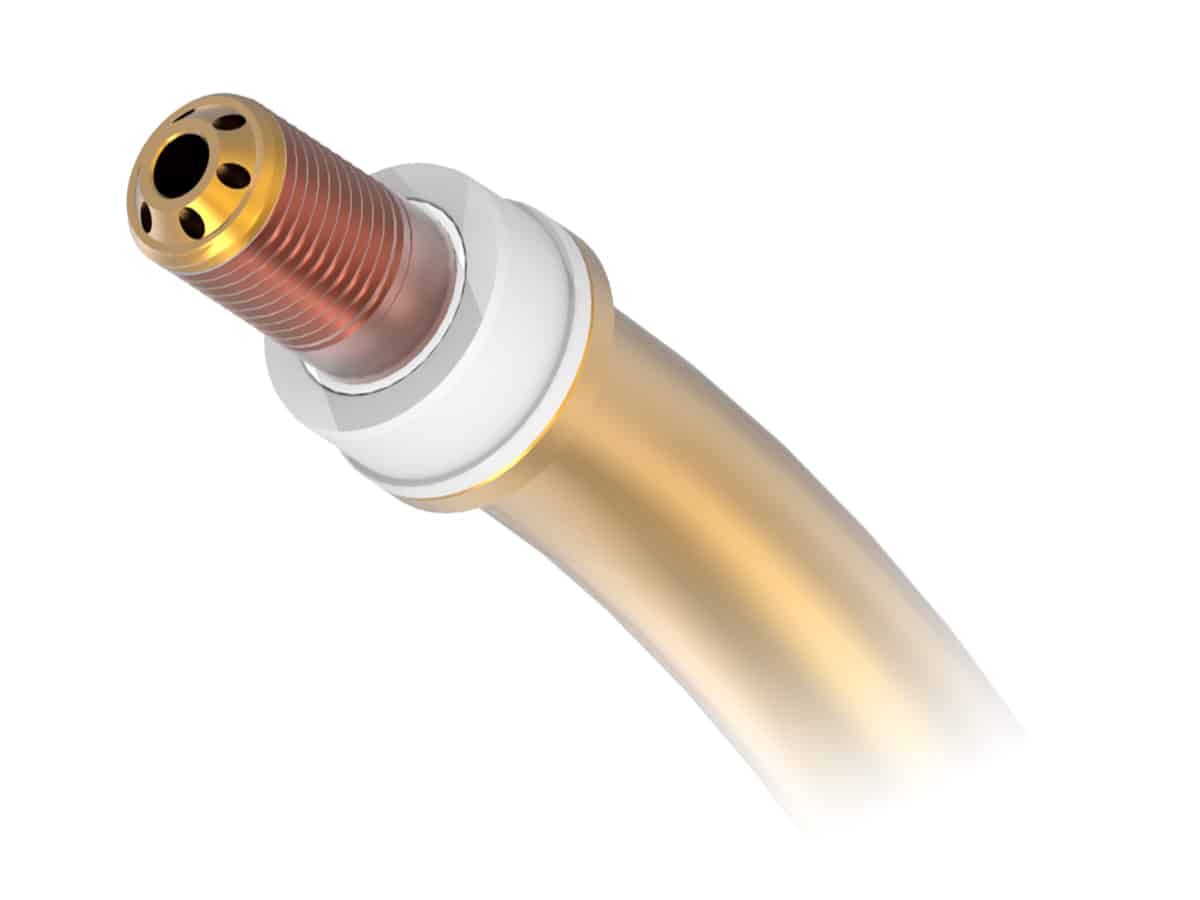

Rotating Neck
Building on the proven performance of the standard XP8 torch, Parweld introduces an integrated 360-degree fully rotating neck engineered specifically for multi-positional welding applications. This design allows operators to seamlessly adjust the torch angle on the fly, unlocking easy access to tight joints, awkward angles, and restricted pipework without compromising gas coverage or amperage delivery. By enabling a natural wrist alignment in out-of-position welds—such as overhead, vertical-up, or confined space configurations—the rotating neck dramatically minimises strain on the welder’s hand and forearm, significantly reducing physical fatigue over long duty cycles. Ultimately, this ergonomic flexibility ensures consistent arc control, smoother torch movement, and uncompromised weld pool manipulation, delivering exceptional top-tier weld quality regardless of how challenging the position may be.
Neck Liners
Quick change with dedicated neck liners.
Conductor
Re-engineered for improved gas flow, strength and toughness.

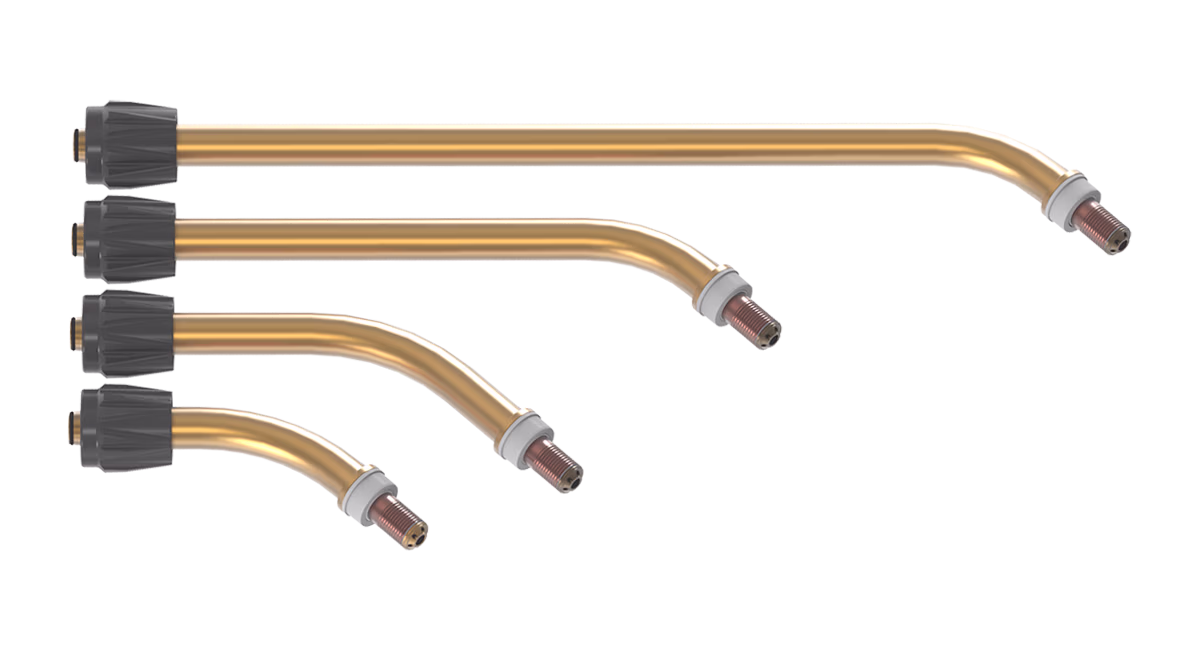

Options

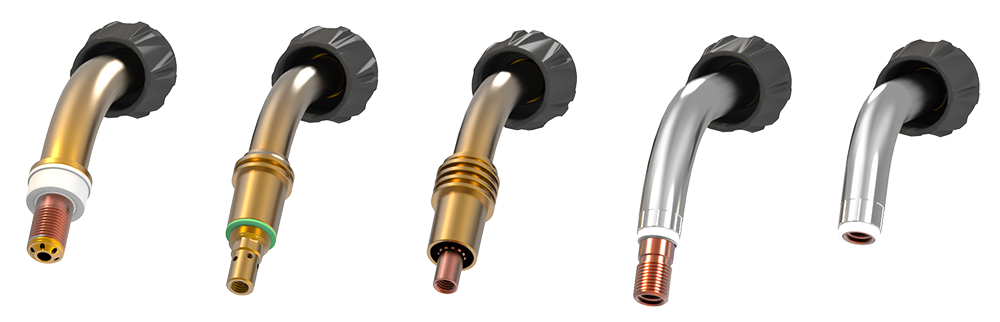

Wide range of necks available in various combinations of lengths and angles for both air and water cooled torch models.
Special Configurations Available On Request.
For More Details & Information, On All Alternative Rotating Neck Torch Options From Parweld, Head To Our Torches Page.

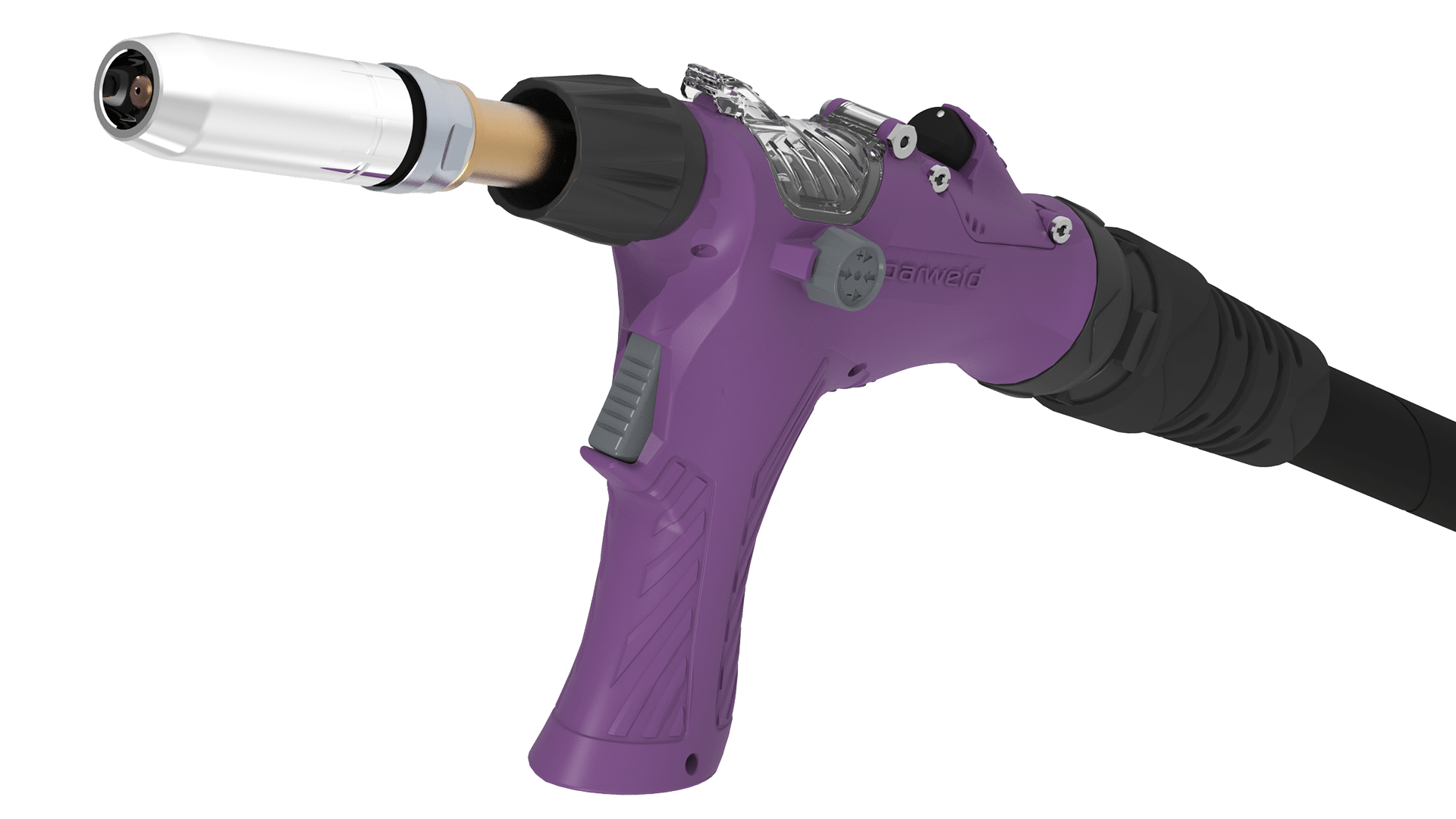

Push Pull Technology
The XP8 Push Pull MIG/MAG Welding Torch has been designed with the user in mind. its incredibly lightweight and ergonomic design is combined with a powerful motor resulting in exceptional performance. As with our standard XP8, every component has been designed and manufactured to the highest specification.
Performance
Dramatically reduced welder fatigue due to light weight – only 1.8kg.
Ergonomic handle gives maximum comfort and grip, perfectly balanced for heavy use.
XP8 front end consumables give the same exceptional XP8 performance and increased service life.
Push Pull Torch Structure & Features
Wire Feed System
Easy access hinged cover. Range of drive rolls. Easily adjustable feed roll pressure.
Necks
XP8 front end and neck design offer robust features, performance and service life as standard.
Neck Liners
Quick and easy change over with dedicated neck liners.
Handle
Integrated high level grip, robust and balanced ergonomic handle design.
Trigger
Recessed guarded trigger reduces the risk of unintentional activation.
Ball Joint System
High flex system for maximum manoeuvrability without resistance.
Drive System
Modern, European manufactured, DC motor, smaller, lighter and more powerful. Constant speed output therefore constant wire feed and weld appearance. 27m (88ft) per minute maximum wire feed speed.
Remote Feed Rate Control
Optional torch mounted variable wire feed rate control.
Drive Control Modules
For machines with no push-pull gun drive control option. Mounted on or in the machine/feed unit. It is hard wired into the machines power and triggering circuits. The module can be connected to an AC or DC supply voltage within a range of 18 to 42V and it will convert the voltage to suit the drive motor.
For use with machines that have a 24V DC or 42V DC rated push-pull gun motor speed control output option. Mounted in-line between the torch control lead and the machine/push feed unit. Connected to the
control socket*. Converts the machines drive output from 24V DC or 42V DC, to the correct voltage for Parweld push-pull torch motor.
*A machine control socket compatible plug
must be purchased in addition and can be
fitted to customer wiring specifications
For More Details & Information, Visit Our Page On All Push Pull Torches Available From Parweld
XP8 Comparison
Engineered to outlast standard industry torches, the Parweld XP8 350 delivers up to 22 welding hours at rated duty and power—more than double the lifespan of leading competitors like the MB 501 and Bernard Q500, and up to five times longer than alternatives like the Tweco 5. Designed for maximum efficiency, thermal performance, and durability, the XP8 ensures you spend more time welding and significantly less time replacing consumables.
Rated Duty & Power
XP8 Performance Guide
Selecting the right XP8 MIG/MAG torch depends on your specific application requirements, duty cycle, heat output, and preferred cooling method. The XP8 series offers both air-cooled options (such as the XP8 200A, 300A, 350A, and 400A) for standard setups and light-to-heavy fabrication, as well as high-capacity water-cooled models (such as the XP8 320W and 450W) designed for continuous high-amperage welding at up to 100% duty cycle. Consider key variables such as your required amperage, shielding gas mixture, wire diameter, and whether specialised Push Pull (PP) functionality is needed for precise wire feeding over extended distances.
| MODEL | MIXED GAS (80/20) | MAX. WIRE SIZE | ||
|---|---|---|---|---|
| AMPS | KW | DUTY CYCLE | ||
| XP8-200A | 200 | 6.0 | 80% | 1.2mm (.045″) |
| XP8-300A | 300 | 8.7 | 80% | 1.2mm (.045″) |
| XP8-350A | 350 | 10.5 | 80% | 1.6mm (1/16″) |
| XP8-400A | 400 | 12.0 | 80% | 2.4mm (3/32″) |
| XP8-320W | 320 | 9.6 | 100% | 1.6mm (1/16″) |
| XP8-450W | 450 | 15.8 | 100% | 2.4mm (3/32″) |
Note: All ratings are based on a nominal gas flow of 18lpm.
Amperages and duty cycles alone are arbitrary measures of a torches capability. the XP8 is rated in amps as a guideline, but for a more accurate rating we take wire type, gas type, flow rate and open circuit voltage into consideration, and use the Kilowattage requirement of an application.
The use of different gas types can have a marked
effect on the performance of air cooled MIG/MAG torches.
Generally the higher the content of CO2
in the
shielding gas, the better the performance.
| MODEL | MIXED GAS (80/20) | MIXED GAS (95/5) | 100% CO2 | |||
|---|---|---|---|---|---|---|
| AMPS | KW | AMPS | KW | AMPS | KW | |
| XP8-200A | 200 | 6.0 | 200 | 6.0 | 260 | 7.8 |
| XP8-300A | 300 | 8.7 | 280 | 8.4 | 375 | 11.7 |
| XP8-350A | 350 | 10.5 | 300 | 9.0 | 425 | 14.9 |
| XP8-400A | 400 | 12.0 | 300 | 9.0 | 480 | 17.2 |
| XP8-320W | 320 | 9.6 | 320 | 9.6 | 320 | 9.6 |
| XP8-450W | 450 | 15.8 | 450 | 15.8 | 450 | 15.8 |
Note: All ratings are based on a nominal gas flow of 18lpm. Lower flow rates increase working temperatures but won’t negatively impact torch longevity if within safe limits.
Yes, but not to the same extent as other variables.
| MODEL | STEEL (80/20) | ALUMINIUM (100% AR) | CORED (18/20) | |||
|---|---|---|---|---|---|---|
| AMPS | KW | AMPS | KW | AMPS | KW | |
| XP8-200A | 200 | 6.0 | 200 | 6.0 | 200 | 6.2 |
| XP8-300A | 300 | 8.7 | 280 | 8.4 | 300 | 9.3 |
| XP8-350A | 350 | 10.5 | 300 | 9.0 | 350 | 10.5 |
| XP8-400A | 400 | 12.0 | 300 | 9.0 | 400 | 12.0 |
| XP8-320W | 320 | 9.6 | 320 | 9.6 | 320 | 9.6 |
| XP8-450W | 450 | 15.8 | 450 | 15.8 | 450 | 15.8 |
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| MODEL | MIXED GAS (95/5) | ||
|---|---|---|---|
| AMPS | KW | DUTY CYCLE | |
| XP8-200A | 200 | 6.0 | 80% |
| XP8-300A | 260 | 9.0 | 80% |
| XP8-350A | 260 | 9.0 | 80% |
| XP8-400A | 260 | 9.0 | 80% |
| XP8-320W | 320 | 9.6 | 100% |
| XP8-450W | 450 | 15.8 | 100% |
Kilowattage represents the total power rating required and is calculated as follows:
Welding Amps x Welding Volts = kW
1000
(Amps x Volts = Watts , 1000 Watts = 1 kW).
XP8 Torches
Designed around today’s production environment, modern welding techniques and equipment, the XP8 sets new standards in design, innovation and performance.
Outperform your current torch | Reduce consumable consumption by up to 70% | Reduce welder downtime by up to 50%
And, Choose Which XP8 Torch Is Best For You:
XP8 200A
XP200A-30E | XP200A-40E | XP200A-50E
Air Cooled
80% Duty Cycle
200A | 6 kW Mixed Gas (80/20)
200A | 6 kW Mixed Gas (95/5)
260A | 7.8 kW 100% CO2
Wire Size: 0.6mm-1.2mm | .023"-.045"
Torch Weight: 1.4kg | 3.1lbs
XP8 300A
XP300A-30E | XP300A-40E | XP300A-50E
Air Cooled
80% Duty Cycle
300A | 8.7 kW Mixed Gas (80/20)
280A | 8.4 kW Mixed Gas (95/5)
375A | 11.7 kW 100% CO2
Wire Size: 0.8mm-1.2mm | .030"-.045"
Torch Weight: 1.6kg | 3.5lbs
XP8 320W
XP320W-30E | XP320W-40E | XP320W-50E
Water Cooled
100% Duty Cycle
320A | 9.6 kW Mixed Gas (80/20)
320A | 9.6 kW Mixed Gas (95/5)
320A | 9.6 kW 100% CO2
Wire Size: 0.8mm-1.6mm | .023"-1/16"
Torch Weight: 1.4kg | 3.1lbs
XP8 350A
XP350A-30E | XP350A-40E | XP350A-50E
Air Cooled
80% Duty Cycle
300A | 8.7 kW Mixed Gas (80/20)
280A | 8.4 kW Mixed Gas (95/5)
375A | 11.7 kW 100% CO2
Wire Size: 1.0mm-1.6mm | .040"-1/16"
Torch Weight: 1.9kg | 4.2lbs
XP8 400A
XP400A-30E | XP400A-40E | XP400A-50E
Air Cooled
80% Duty Cycle
400A | 12 kW Mixed Gas (80/20)
300A | 9 kW Mixed Gas (95/5)
480A | 17.2 kW 100% CO2
Wire Size: 1.2mm-2.4mm | .045"-3/32"
Torch Weight: 2.0kg | 4.4lbs
XP8 450W
XP450W-30E | XP450W-40E | XP450W-50E
Water Cooled
100% Duty Cycle
450A | 15.8 kW Mixed Gas (80/20)
450A | 15.8 kW Mixed Gas (95/5)
450A | 15.8 kW 100% CO2
Wire Size: 1.0mm-2.4mm | .040"-3/32"
Torch Weight: 1.5kg | 3.3lbs
XP8 350A PP
XP35P
Air Cooled
80% Duty Cycle
350A | 10.5 kW Mixed Gas (80/20)
300A | 9 kW Mixed Gas (95/5)
425A | 14.9 kW 100% CO2
Wire Size: 1.0mm-1.6mm | .040"-1/16"
Torch Weight: 1.8kg | 4.0lbs
XP8 450W PP
XP45P
Water Cooled
100% Duty Cycle
450A | 15.8 kW Mixed Gas (80/20)
450A | 15.8 kW Mixed Gas (95/5)
450A | 15.8 kW 100% CO2
Wire Size: 1.0mm-1.6mm | .040"-1/16"
Torch Weight: 1.8kg | 4.0lbs
Access Technical Data Sheets, User Manuals, Declarations of Conformity and Compliance Certificates on the Parweld Documents Library: www.parweld.info.
Just Click, Tap Or Scan And Then Search The Part Number You Need.
Access Technical Data Sheets, User Manuals, Declarations of Conformity and Compliance Certificates on the Parweld Documents Library: www.parweld.info.
Just Tap And Then Search The Part Number You Need.
XP8 MIG/MAG Torch Configurations
Torch Model
Air Cooled
Cable Length (m)
Cable
Euro Fitting
Torch Model
Water Cooled
Cable Length (m)
Cable
Euro Fitting
Model
For Rotating Neck
Neck Length ( " - Inches)
Neck Angle*
Cable Length (m)
Cable
Euro Fitting
Neck Angle Options - 0 = Straight Neck | 4 = 45° | 6 = 60°
Torch Model
Cable Length
Machine Connection
Speed Control
Drive Module
Control Plug
XP8 Liners
View Recommended Liners And Compatible Liners For The XP8 MIG/MAG Welding Torches Here.
XP8 Liners
Viewing This Page Is Recommended On Desktop And Large Tablet Devices For The Best Resolution
Check out your nearest Parweld distributor for details on what XP8 Torches are available for you.
Or alternatively, contact Parweld Head Office for more details.
