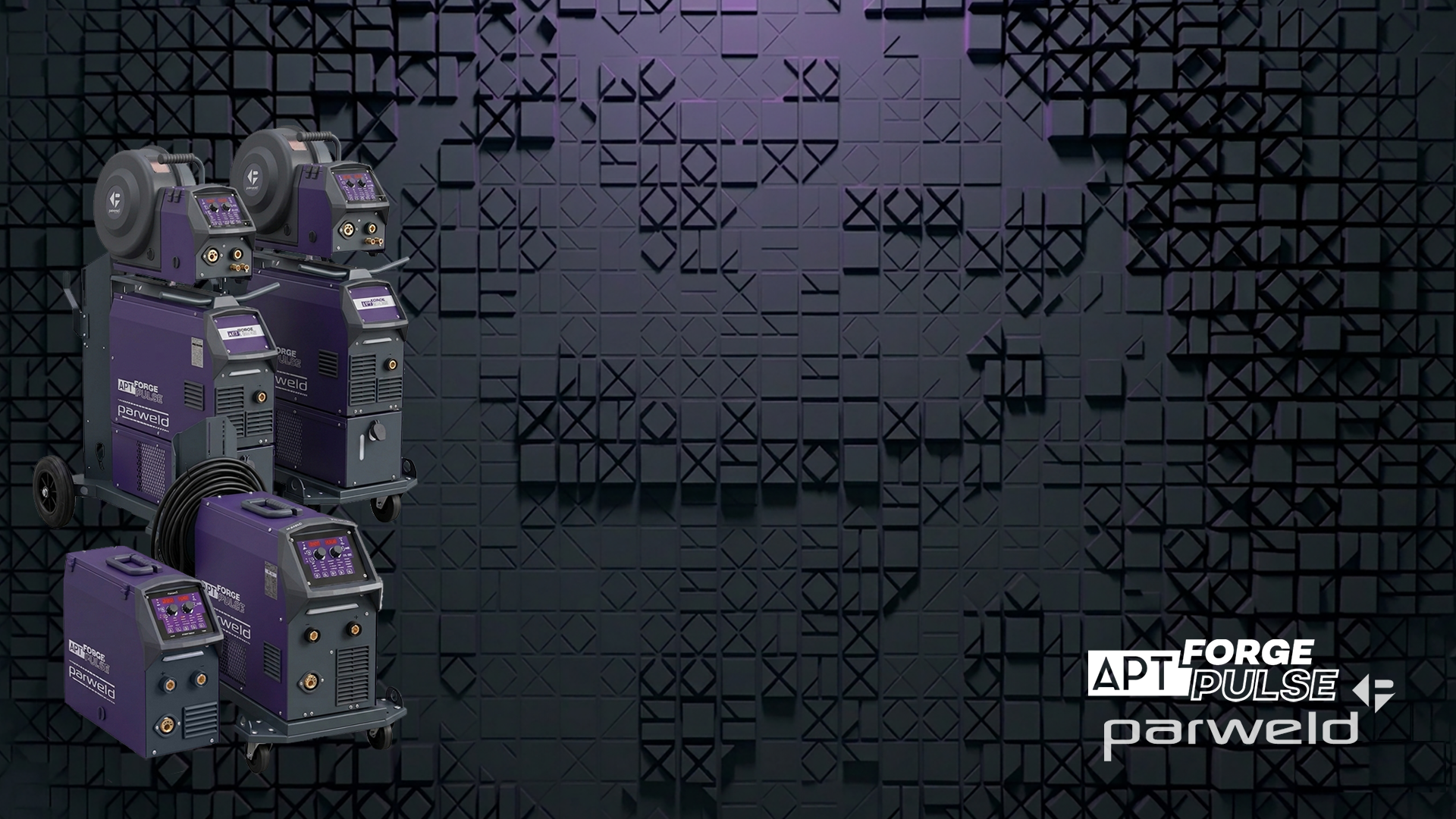

Evolution doesn’t stand still. Following the success of the original APT and follow-up APT+ lines, Parweld is proud to launch the highly anticipated APT Forge Pulse Series—our third generation of professional Pulse MIG/MAG machines. Engineered for elite-level professional fabrication, the Forge Pulse Series balances brute industrial power with micro-precision control, drastically reducing clean-up time across all materials. The defining advancement of this series, is its robotic integration capabilities. Featuring a sophisticated new interface designed for high-density industrial environments, the Forge Pulse Series connects seamlessly to robotic systems over Ethernet. By supporting industry standard Ethernet programs, Parweld ensures that the next wave of industrial automation is completely frictionless.
Features & Processes
Designed to maximise uptime and eliminate guesswork, the Forge Pulse series introduces intelligent hardware and software integrations that put total control in the operator’s hands. From instant job recall to automated calibration adjustments, every feature is optimised to streamline your workflow and deliver repeatable, high-quality results.
Stores Up To 99 Programs
Wire Push, Pull-Back, Gas Testing
In Up To 15 Minutes
RL Torch And Cable Calabration
Welding Processes
The APT Forge Pulse Series redefines versatility by putting elite-level arc control at your fingertips. Whether you are navigating intricate positions, tackling heat-sensitive alloys, or executing high-speed industrial production, our specialised pulsing modes adapt dynamically to your workflow. Experience reduced spatter, minimised distortion, and a flawless finish across all materials. View More Details Here.
Beneath the rugged exterior of the Forge Pulse Series lies our proprietary Advanced Power Technology suite. These specialised software algorithms modify the arc characteristics in real-time, solving the most common challenges faced by industrial fabricators—from deep groove penetration to open-root gaps. View More Details Here.
Built For Automation: Robotic Cooperation
Whether you are deploying standard industrial robots or collaborative cobots, the APT Forge Pulse Series is engineered to operate in perfect harmony with automated arms, ensuring high-speed data exchange and flawless execution.
Seamless Network Integration
Gone are the days of complex, proprietary setups. The Forge Pulse Series features a next-generation communication interface that plugs directly into high-density industrial networks via standard Ethernet. By communicating natively with your central PLC or robot controller, the machine allows for real-time monitoring, instant parameter adjustments, and absolute process control.
Supported Automation Protocols
To ensure a frictionless integration into your existing workplace, the Forge Pulse interface natively supports the industry’s leading industrial communication programs:
- EtherNet/IP & ProfiNet: For high-speed, deterministic data exchange with mainstream industrial PLCs.
- Modbus TCP: For versatile, open-architecture networking across diverse factory layouts.
- EtherCAT: For ultra-low latency, real-time synchronization required in high-precision, high-speed robotic paths.
Additional Features
Built from the ground up for rugged industrial environments, our premium hardware additions provide the mechanical reliability, component protection, and ergonomic support needed to handle demanding production schedules with ease.
Compatible With PRO-Grip Control™ MIG/MAG Torches

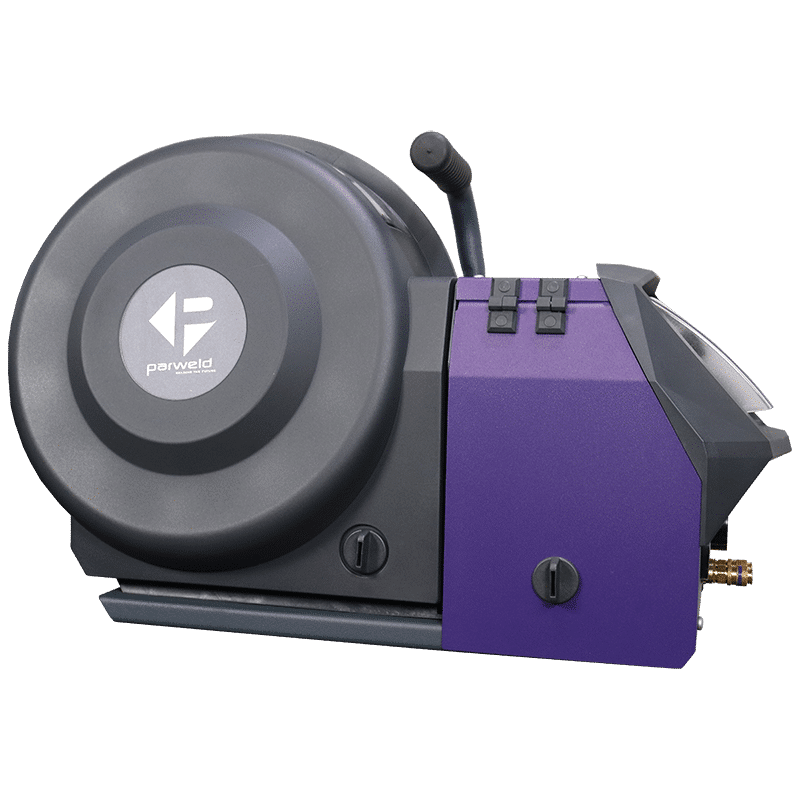

With Wire View

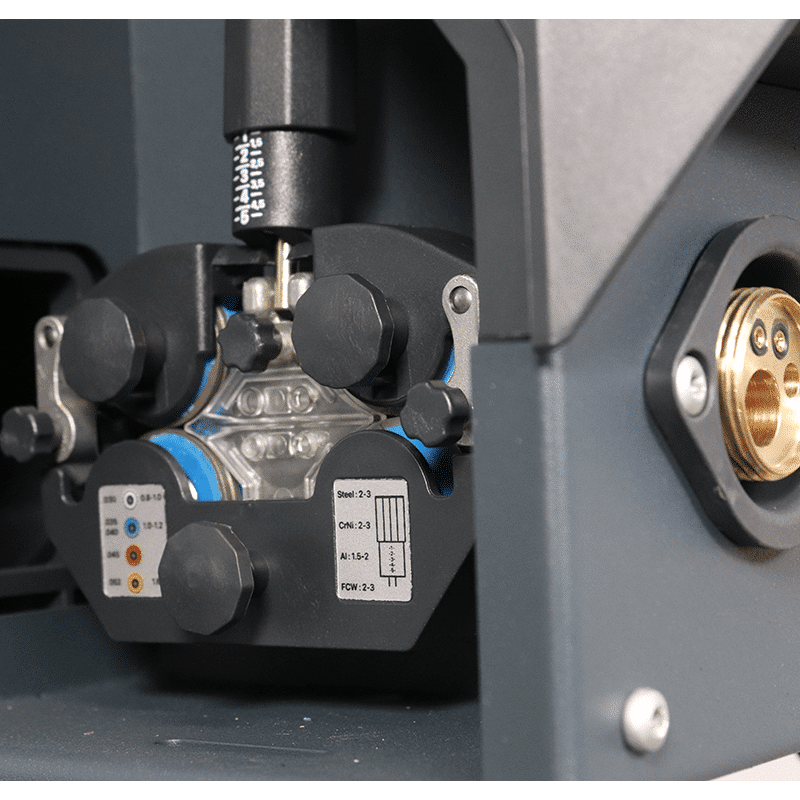

25.000 PPS Wire Speed Control

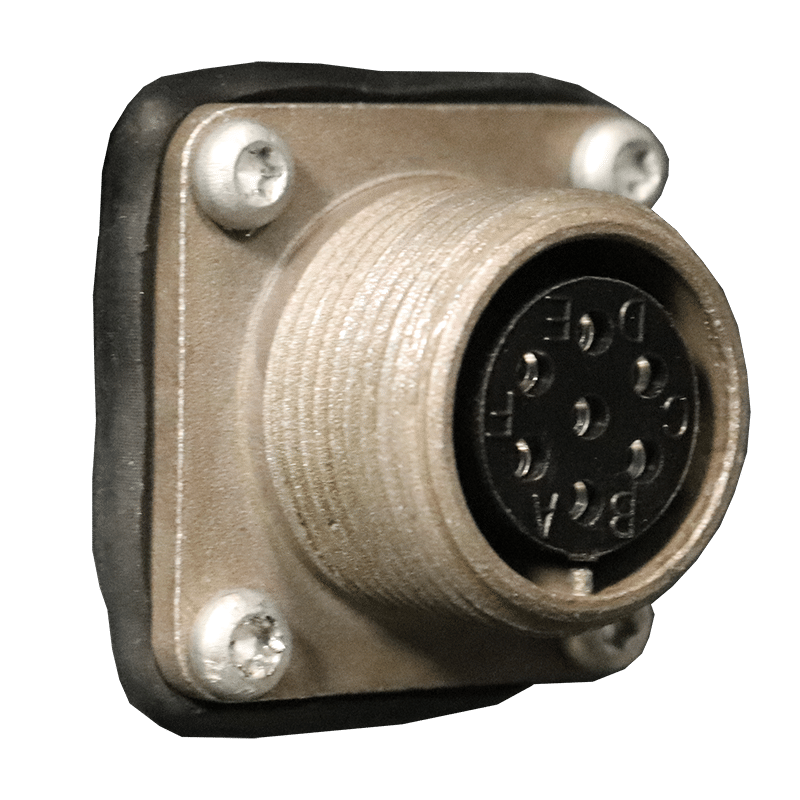

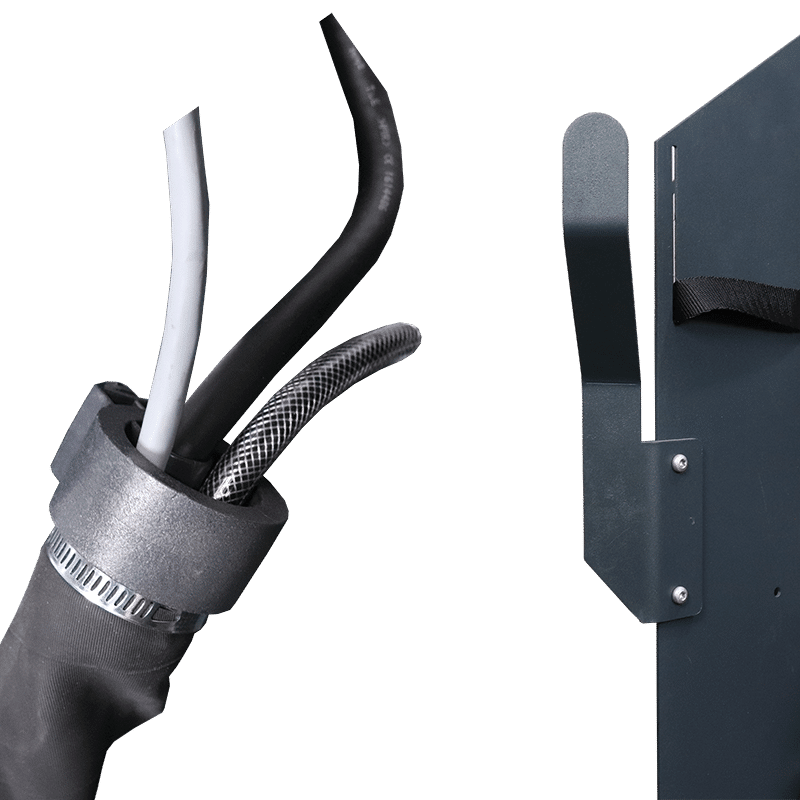

Protects Connections & Extends Cable Life
To Withstand Tough Workshop Environments

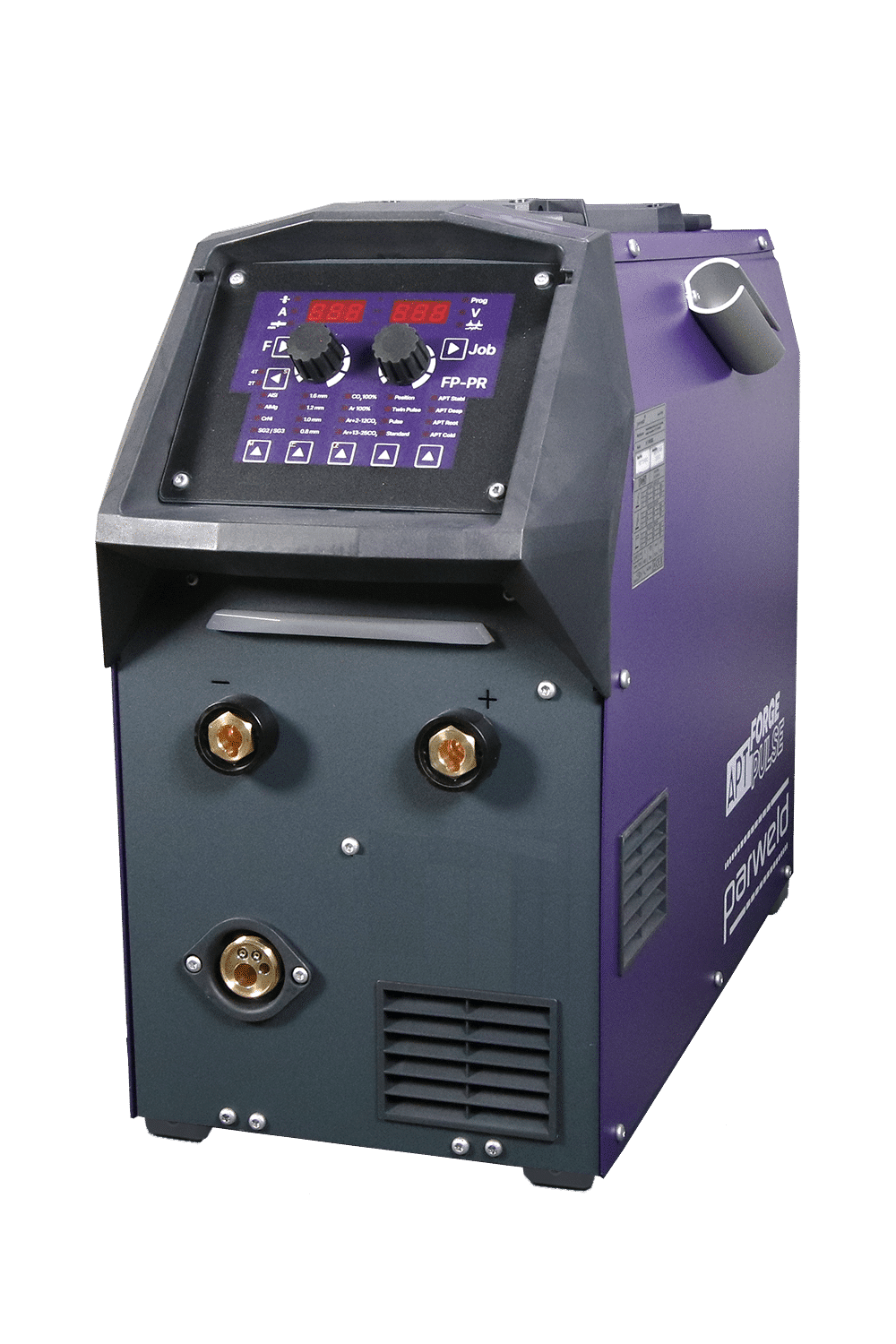

APT FP220 Compact
OPEN MACHINE IMAGE
Image Shown = Air Cooled Machine with PR Panel
417mm | 16.4"
483mm | 19"
234mm | 9.2"
21kg | 3.3st
Air Cooled | PR Panel
Air Cooled | ST Panel
Technical Specifications
| - - - ELECTRICAL & POWER SOURCE INFORMATION - - - | |
| Input Voltage | 230V | Single Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 25A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 17.8 KW |
| Recommended Generator Size | 20 KVA |
| - - - WELDING PERFORMANCE DATA - - - | |
| Welding Current Range | 30A – 220A |
| Output Load Voltage Rating | 14.15V – 34.5V |
| Output Open Circuit Voltage | 60V |
| Duty Cycle (40°C) | 220A @ 40% | 200A @ 60% | 170A @ 100% |
- Machine Comes Equipped With = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Gas Hose ( 1.5m )
-
Download User Manual
Air Cooled | PR Panel
Air Cooled | ST Panel
Technical Information
- Length = 483mm | 19″
- Width = 234mm | 9.2″
- Height = 417mm | 16.4″
- Weight = 21kg | 3.3st
| Input Voltage | 230V | Single Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 25A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 17.8 KW |
| Recommended Generator Size | 20 KVA |
| Welding Current Range | 30A – 220A |
| Output Load Voltage Rating | 14.15V – 34.5V |
| Output Open Circuit Voltage | 60V |
| Duty Cycle (40°C) | 220A @ 40% | 200A @ 60% | 170A @ 100% |

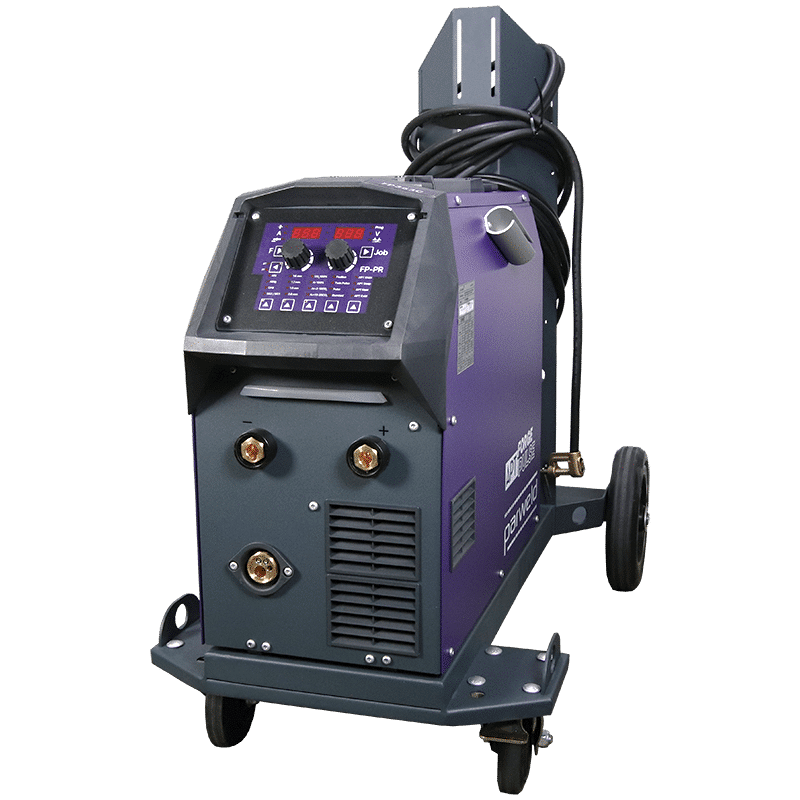

APT FP353 Compact
OPEN MACHINE IMAGE
Image Shown = Air Cooled Machine with PR Panel
974mm | 38.3"
860mm | 33.8"
532mm | 20.9"
55kg | 8.7st
Air Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | PR Panel
Water Cooled | ST Panel
Technical Specifications
| - - - ELECTRICAL & POWER SOURCE INFORMATION - - - | |
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 20 KVA |
| - - - WELDING PERFORMANCE DATA - - - | |
| Welding Current Range | 30A – 350A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 350A @ 40% | 300A @ 60% | 250A @ 100% |
- Air Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Gas Hose ( 1.5m ) | Trolley Accessory
- Water Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Interconnection H.P ( 5m ) | Trolley Accessory with Water Cooler Unit
-
Download User Manual
Air Cooled | PR Panel
Water Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | ST Panel
Technical Information
- Length = 860mm | 33.8″
- Width = 532mm | 20.9″
- Height = 974mm | 38.3″
- Weight = 55kg | 8.7st
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 20 KVA |
| Welding Current Range | 30A – 350A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 350A @ 40% | 300A @ 60% | 250A @ 100% |
APT FP400 Separate
OPEN MACHINE IMAGE
Image Shown = Air Cooled Machine with PR Panel
1178mm | 46.4"
974mm | 38.3"
532mm | 21"
94kg | 14.8st
Air Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | PR Panel
Water Cooled | ST Panel
Technical Specifications
| - - - ELECTRICAL & POWER SOURCE INFORMATION - - - | |
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 24 KVA |
| - - - WELDING PERFORMANCE DATA - - - | |
| Welding Current Range | 30A – 400A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 400A @ 40% | 360A @ 60% | 300A @ 100% |
- Air Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Gas Hose ( 1.5m ) | Trolley Accessory
- Water Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Interconnection H.P ( 5m ) | Trolley Accessory with Water Cooler Unit
-
Download User Manual
Air Cooled | PR Panel
Water Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | ST Panel
Technical Information
- Length = 974mm | 38.3″
- Width = 532mm | 20.9″
- Height = 1178mm | 46.4″
- Weight = 94kg | 14.8st
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 24 KVA |
| Welding Current Range | 30A – 400A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 400A @ 40% | 360A @ 60% | 300A @ 100% |
APT FP500 Separate
OPEN MACHINE IMAGE
450mm | 17.7"
655mm | 25.8"
230mm | 9"
24.7kg | 3.9st
Air Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | PR Panel
Water Cooled | ST Panel
Technical Specifications
| - - - ELECTRICAL & POWER SOURCE INFORMATION - - - | |
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 34 KVA |
| - - - WELDING PERFORMANCE DATA - - - | |
| Welding Current Range | 30A – 500A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 500A @ 40% | 430A @ 60% | 400A @ 100% |
- Air Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Gas Hose ( 1.5m ) | Trolley Accessory
- Water Cooled Package Includes = 5m Power Cable ( 4 x 2.5mm² ) | 5m Earth Clamp ( 50mm² ) | Interconnection H.P ( 5m ) | Trolley Accessory with Water Cooler Unit
-
Download User Manual
Air Cooled | PR Panel
Water Cooled | PR Panel
Air Cooled | ST Panel
Water Cooled | ST Panel
Technical Information
- Length = 655mm | 25.8″
- Width = 230mm | 9″
- Height = 450mm | 17.7″
- Weight = 24.7kg | 3.9st
| Input Voltage | 400V | 3 Phase |
| Frequency Rating | 50/60 Hz |
| Power Source Fuse Rating | 40A |
| Mains Voltage Tolerance | -10% / +15% |
| Power Consumption (Rated) | 24.8 KW |
| Recommended Generator Size | 34 KVA |
| Welding Current Range | 30A – 500A |
| Output Load Voltage Rating | 14.15V – 39V |
| Output Open Circuit Voltage | 63V – 82V |
| Duty Cycle (40°C) | 500A @ 40% | 430A @ 60% | 400A @ 100% |

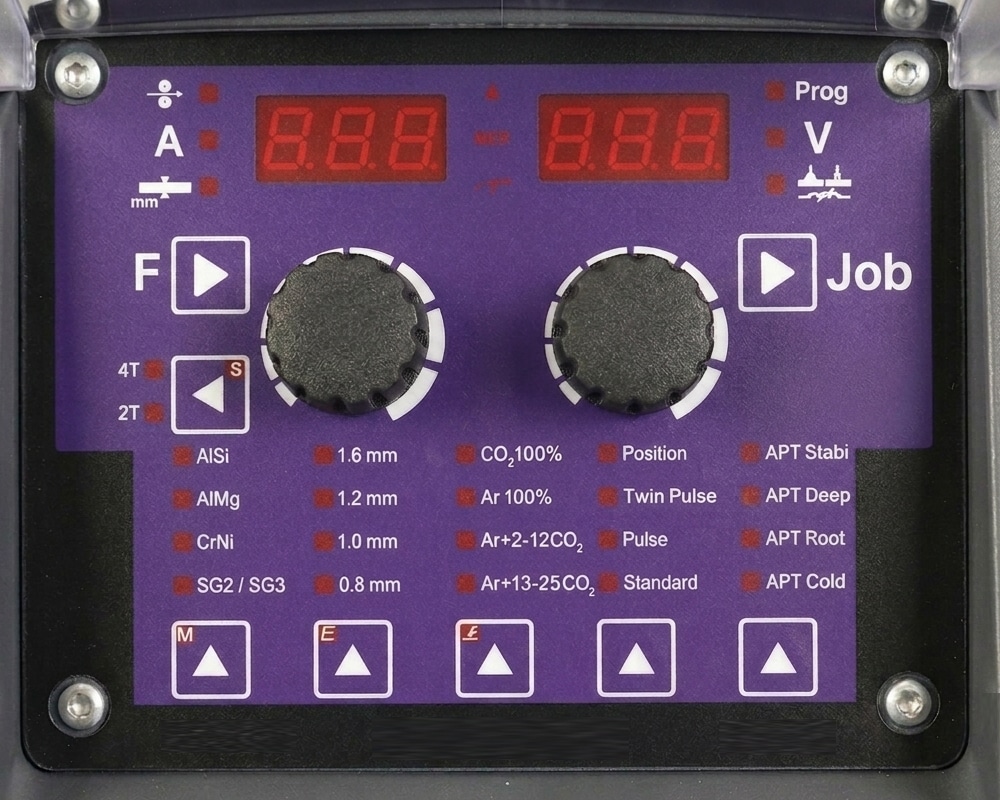

PR Panel
For All Types Of Metal Work (Steel, Cr, Cu and Al). View the Jobs List below.
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 8 | 10 | 12 | 16 |
| Ar+10%CO₂ | 18 | 20 | 22 | 26 | |
| CO₂ 100% | 28 | 30 | 32 | 36 | |
| CrNi 308 / 316 / 318 / 19 9 / 19 12 3 | Ar+2.5%CO₂ | 68 | 70 | 72 | 76 |
| CuSi | Ar100% | 178 | 180 | 182 | 186 |
| CuAl | Ar100% | 188 | 190 | 192 | 196 |
| AlMg4,5 Mn | Ar100% | 118 | 120 | 122 | 126 |
| AlSi | Ar100% | 138 | 140 | 142 | 146 |
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| Steel / FC Metal | Ar+18%CO₂ | 238 | 240 | 242 | 246 |
| Steel / FC Rutil | Ar+18%CO₂ | 248 | 250 | 252 | 256 |
| CO₂ 100% | 262 | 266 | |||
| Steel / FC Basic | Ar+18%CO₂ | 602 | |||
| CrNi / FC Metal | Ar+2.5%CO₂ | 272 | 276 | ||
| CrNi / FC Rutil | Ar+18%CO₂ | 282 | 286 | ||
| CrNi / FC Rutil | CO₂ 100% | 292 | 296 | ||
| Steel / FC High Str. | Ar+18%CO₂ | 592 | |||
| Steel / FC Rutil | Self Shielded | 720 | 722 | ||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 298 | 300 | 302 | 306 |
| Ar+10%CO₂ | 308 | 310 | 312 | 316 | |
| CrNi 308 / 316 / 318 / 19 9 / 19 12 3 | Ar+2.5%CO₂ | 640 | 642 | 646 | |
| AlMg4,5 Mn | Ar100% | 332 | 336 | ||
| AlSi | Ar100% | 342 | 346 | ||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 360 | 362 | ||
| CO₂ 100% | 370 | 372 | |||
| Ar+10%CO₂ | 500 | 502 | |||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 378 | 380 | 382 | 386 |
| CO₂ 100% | 388 | 390 | 392 | ||
| Ar+10%CO₂ | 510 | 512 | |||
| CrNi 308 / 316 / 318 / 19 9 / 19 12 3 |
Ar+2.5%CO₂ | 398 | 400 | 402 | |
| MIG/MAG Manual | 4 | ||||
| TIG (Lift Arc) | 5 | ||||
| MMA | 6 | ||||
| Gouging | 7 | ||||
Wire Feed Speed
Welding Current
Material Thickness Selection
Menu Selection / Press and Hold Function Settings
Trigger Selection
Material Type Selection / Press and Hold
for Manual Welding
Wire Diameter Selection / Press and Hold for TIG Welding
Shielding Gas Selection / Press and Hold for MMA Welding
Standard Process Selection
Special Process Selection
Menu Selection Press and Hold / Job Settings
Inductance
Voltage
Program Memory
Hold Indicator
Lock Indicator
Trigger Indicator

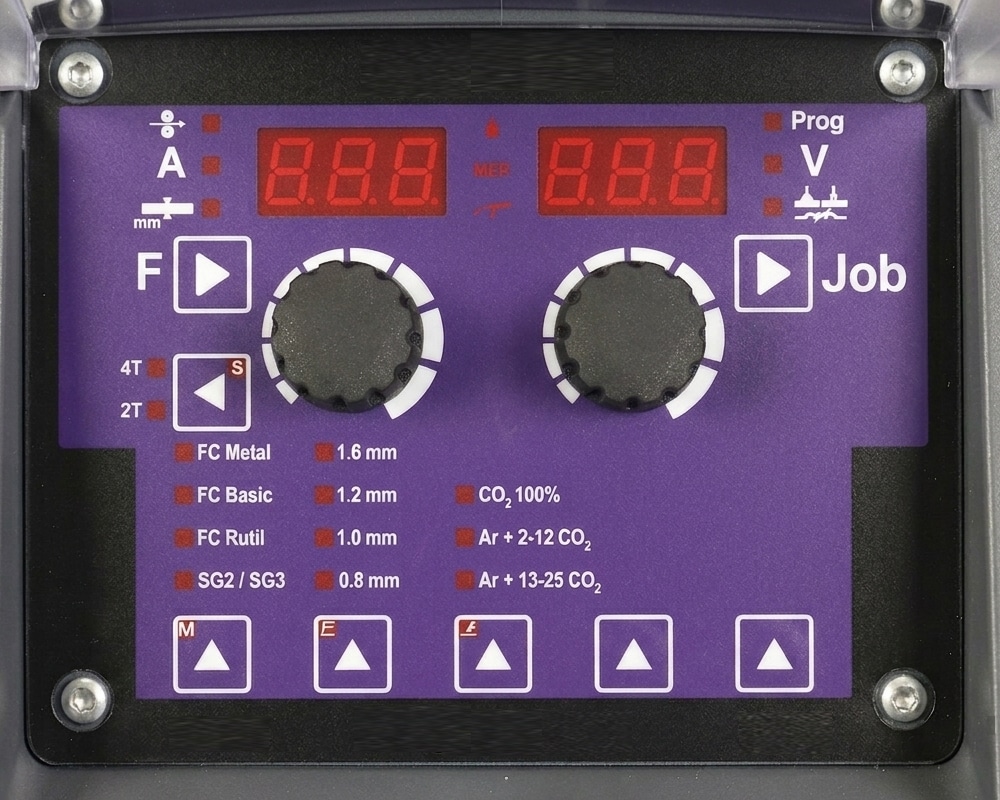

Utilising a symmetrical dual-knob layout that allows the operator to dial in settings quickly, the PR Panel is an advanced, multi-material premium panel designed for workshops handling a wider variety of alloys, particularly aluminum and stainless steel.
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F1 | Gas pre-flow (s) | 0 | 10 |
| F2 | Start wire speed (m/min) | 20 | 100 |
| F3 | Start time (s) | 0 | 10 |
| F4 | Start current (%) | 1 | 200 |
| F5 | Start arc correction(V) | -9.9 | +9.9 |
| F7 | Start slope (s) | 0 | 5 |
| F8 | Duo peak time (s) | 0.05 | 10 |
| F10 | Duo base time (s) | 0.05 | 10 |
| F11 | Duo base amper (%) | 1 | 100 |
| F12 | Duo base arc correction (v) | -9.9 | +9.9 |
| F15 | End down slope (s) | 0 | 10 |
| F16 | End time (s) | 0 | 10 |
| F17 | End current (%) | 1 | 200 |
| F18 | End arc correction (V) | -9.9 | +9.9 |
| F20 | End burn back (-) | 0 | 15 |
| F21 | End wire cut mode (-) | 0 | 2 |
| F22 | Gas post-flow (s) | 0 | 10 |
| F23 | Smart trigger (-) | 0 | 10 |
| F24 | Penetration stabilizer (m/min) | 0 | 10 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F25 | Hot start time (s) | 0 | 10 |
| F26 | Hot start current (%) | 1 | 200 |
| F27 | Arc force (-) | 0 | +50 |
| F28 | Antistick (s) | 0 | 2 |
| F29 | VRD function (-) | 0 | 1 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F34 | Tack/stich mode (-) | 0 | 2 |
| F35 | Cooling mode (-) | 0 | 4 |
| F36 | Motor current (A) | 0 | 4 |
| F37 | Motor current limit (A) | 0.7 | 7 |
| F38 | Auto load default values (-) | 0 | 1 |
| F39 | Motor control firmware (-) | – | – |
| F40 | Power control firmware (-) | – | – |
| F41 | Arc on time (h) | 0 | 4 |
| F42 | Machine on time (h) | 0 | 4 |
| F45 | Wire speed correction (m/min) | -2 | +2 |
| F48 | Status light template | 0 | 4 |
| F49 | Controller mode | 0 | 9 |
| F50 | RL cable calibration (mOhm) | 0 | 30 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F31 | TIG V stop limit (V) | 18 | 18 |
| F32 | TIG comfort stop sensitivity (V) | -2 | +2 |
ST Panel
For Flux-Cored Wire And Steel Solutions. View the Jobs List below.
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 8 | 10 | 12 | 16 |
| Ar+10%CO₂ | 18 | 20 | 22 | 26 | |
| CO₂ 100% | 28 | 30 | 32 | 36 | |
| CrNi 308 / 316 / 318 / 19 9 / 19 12 3 | Ar+2.5%CO₂ | 68 | 70 | 72 | 76 |
| CuSi | Ar100% | 178 | 180 | 182 | 186 |
| CuAl | Ar100% | 188 | 190 | 192 | 196 |
| AlMg4,5 Mn | Ar100% | 118 | 120 | 122 | 126 |
| AlSi | Ar100% | 138 | 140 | 142 | 146 |
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| Steel / FC Metal | Ar+18%CO₂ | 238 | 240 | 242 | 246 |
| Steel / FC Rutil | Ar+18%CO₂ | 248 | 250 | 252 | 256 |
| CO₂ 100% | 262 | 266 | |||
| Steel / FC Basic | Ar+18%CO₂ | 602 | |||
| CrNi / FC Metal | Ar+2.5%CO₂ | 272 | 276 | ||
| CrNi / FC Rutil | Ar+18%CO₂ | 282 | 286 | ||
| CrNi / FC Rutil | CO₂ 100% | 292 | 296 | ||
| Steel / FC High Str. | Ar+18%CO₂ | 592 | |||
| Steel / FC Rutil | Self Shielded | 720 | 722 | ||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 298 | 300 | 302 | 306 |
| Ar+10%CO₂ | 308 | 310 | 312 | 316 | |
| CrNi 308 / 316 / 318 / 19 9 / 19 12 3 |
Ar+2.5%CO₂ | 640 | 642 | 646 | |
| AlMg4,5 Mn | Ar100% | 332 | 336 | ||
| AlSi | Ar100% | 342 | 346 | ||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 360 | 362 | ||
| CO₂ 100% | 370 | 372 | |||
| Ar+10%CO₂ | 500 | 502 | |||
| 0.8mm | 1.0mm | 1.2mm | 1.6mm | ||
|---|---|---|---|---|---|
| SG2 / SG3 | Ar+18%CO₂ | 378 | 380 | 382 | 386 |
| CO₂ 100% | 388 | 390 | 392 | ||
| Ar+10%CO₂ | 510 | 512 | |||
| MIG/MAG Manual | 4 | ||||
| TIG (Lift Arc) | 5 | ||||
| MMA | 6 | ||||
| Gouging | 7 | ||||
Wire Feed Speed
Welding Current
Material Thickness Selection
Menu Selection / Press and Hold Function Settings
Trigger Selection
Material Type Selection / Press and Hold
for Manual Welding
Wire Diameter Selection / Press and Hold for TIG Welding
Shielding Gas Selection / Press and Hold for MMA Welding
Standard Process Selection
Special Process Selection
Menu Selection Press and Hold / Job Settings
Inductance
Voltage
Program Memory
Hold Indicator
Lock Indicator
Trigger Indicator
Utilising a symmetrical dual-knob layout that allows the operator to dial in settings quickly, the ST Panel is engineered for standard and specialised steel/iron welding applications, prioritising efficient workflow with flux cored wire types and shielding gases.
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F1 | Gas pre-flow (s) | 0 | 10 |
| F2 | Start wire speed (m/min) | 20 | 100 |
| F3 | Start time (s) | 0 | 10 |
| F4 | Start current (%) | 1 | 200 |
| F5 | Start arc correction(V) | -9.9 | +9.9 |
| F7 | Start slope (s) | 0 | 5 |
| F8 | Duo peak time (s) | 0.05 | 10 |
| F10 | Duo base time (s) | 0.05 | 10 |
| F11 | Duo base amper (%) | 1 | 100 |
| F12 | Duo base arc correction (v) | -9.9 | +9.9 |
| F15 | End down slope (s) | 0 | 10 |
| F16 | End time (s) | 0 | 10 |
| F17 | End current (%) | 1 | 200 |
| F18 | End arc correction (V) | -9.9 | +9.9 |
| F20 | End burn back (-) | 0 | 15 |
| F21 | End wire cut mode (-) | 0 | 2 |
| F22 | Gas post-flow (s) | 0 | 10 |
| F23 | Smart trigger (-) | 0 | 10 |
| F24 | Penetration stabilizer (m/min) | 0 | 10 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F25 | Hot start time (s) | 0 | 10 |
| F26 | Hot start current (%) | 1 | 200 |
| F27 | Arc force (-) | 0 | +50 |
| F28 | Antistick (s) | 0 | 2 |
| F29 | VRD function (-) | 0 | 1 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F34 | Tack/stich mode (-) | 0 | 2 |
| F35 | Cooling mode (-) | 0 | 4 |
| F36 | Motor current (A) | 0 | 4 |
| F37 | Motor current limit (A) | 0.7 | 7 |
| F38 | Auto load default values (-) | 0 | 1 |
| F39 | Motor control firmware (-) | – | – |
| F40 | Power control firmware (-) | – | – |
| F41 | Arc on time (h) | 0 | 4 |
| F42 | Machine on time (h) | 0 | 4 |
| F45 | Wire speed correction (m/min) | -2 | +2 |
| F48 | Status light template | 0 | 4 |
| F49 | Controller mode | 0 | 9 |
| F50 | RL cable calibration (mOhm) | 0 | 30 |
| Function | Description | Minimum | Maximum |
|---|---|---|---|
| F31 | TIG V stop limit (V) | 18 | 18 |
| F32 | TIG comfort stop sensitivity (V) | -2 | +2 |
APT FP4 Wire Feeder
Fitted to the FP 400 and FP 500 Machines, the APT FP4 Wire Feeder Unit is a heavy-duty, separate wire feeding powerhouse, engineered for demanding industrial fabrication environments. Featuring a robust 4-roll wire drive assembly that ensures positive, slip-free feeding and perfect consistency even when utilising extended interconnecting cable packages. Optimised for advanced digital synchronisation, effortlessly communicating with the main power source to manage the ultra-high-speed 25,000 pulses-per-second wire control loop, facilitating advanced processes like Deep, Root, and Twin-Pulse with flawless arc stability.
APT Water Cooler Unit
High-Performance, modular cooling system engineered specifically as an option for the Forge Pulse FP 353, FP 400 and FP500 power source models. Designed to handle the extreme thermal demands of high-amperage spray transfer and prolonged pulse welding, the unit delivers consistent torch cooling to protect consumables and maintain arc stability during heavy-duty production cycles.
For maximum efficiency, rather than running continuously at full capacity, the power source actively monitors internal temperatures and torch usage to cycle the water cooler's pump and fan only when required.
APT Trolley Assembly
The heavy-duty workshop trolley, fitted as standard to the FP 353, FP 400 and FP 500 models, is engineered to turn these industrial power sources into highly mobile, self-contained welding stations. Built to withstand the harsh environments of busy fabrication shops and manufacturing facilities, the trolley features a rugged, reinforced steel chassis that easily supports the combined weight of the power source, an optional water cooling unit, and a full wire feeder package.
APT Catalogue Download
Download the NEW APT Forge Pulse Machine Booklet in PDF format, alongside our Full Catalogue, Machine Catalogues, PPE Booklets and other marketing literature material, in various languages from around the world.
Download the NEW APT Forge Pulse Machine Booklet in PDF format, alongside our Full Catalogue, Machine Catalogues, PPE Booklets and other marketing literature material, in various languages from around the world.
Find Your Nearest Parweld For Available APT Inverters In Your Region!
Visit The APT Page For More Details On The Brand!
Go To The Parweld Documents Library For All APT Manuals!
Get In Touch With The Parweld Group For More Details On APT!
