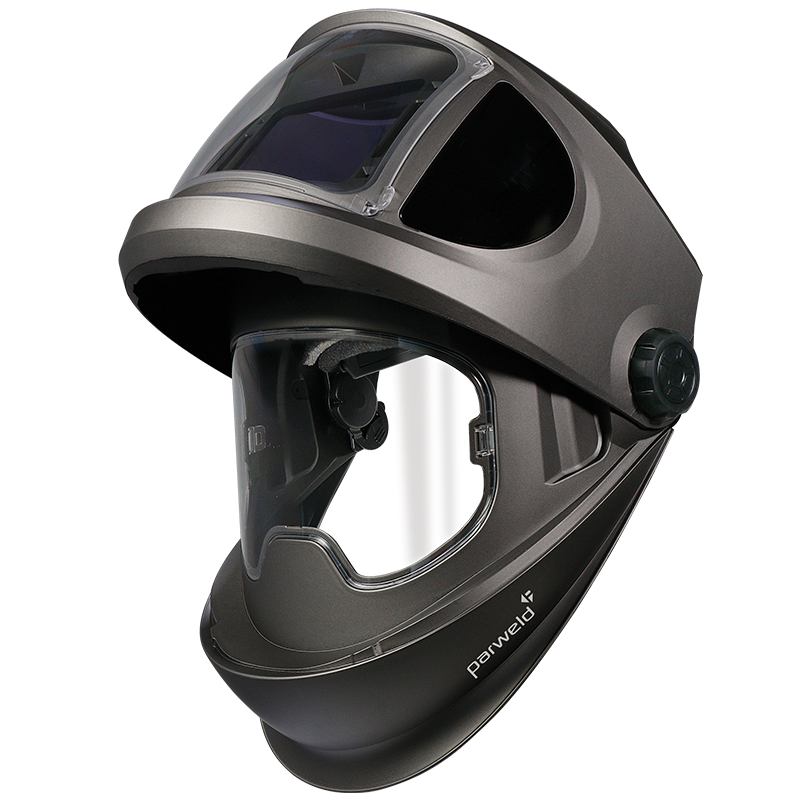

XR943H Welding & Grinding Helmet

Flip-Up Front Helmet with Full Face Coverage

XR943H Welding & Grinding Helmet

Flip-Up Front Helmet with Full Face Coverage

£0.00

For More Info Please Call Sales:

UK & Éire Sales:

Rest of the World ( Export ) Sales:

Please Call Sales To Place An Order:

ELEVATE YOUR VISION!

To the next level, with the XR943 Flip-Up Front Welding and Grinding Helmet from Parweld. The XR943H welding helmet is equipped with a wide-view grinding visor, an LCD display, and a True Colour Auto-Darkening Filter (ADF) that offers exceptional clarity, rated at 1/1/1/1 in accordance with EN 379. The helmet contains a gradual lightening feature helps reduce eye strain, while its Light Shade DIN 3 ensures improved pre-welding visibility. The Variable Shade Control (DIN 4-13) allows for precise adjustment, enhancing comfort during various welding tasks. Ergonomically Balanced, the headgear features multiple adjustable rake positions, providing a secure fit. It includes several modes for versatile use: Auto Shade Mode for quick settings, High-Speed Tacking Mode, as well as Weld, Grind, and Cut modes. Additionally, the helmet’s memory function allows welders to easily store and recall their preferred settings for seamless operation.

Key Features Include:

  • Flip Front Action
  • Wide View Grinding Visor
  • LCD Display
  • True Colour ADF
  • Light Shade 3
  • Variable Shade Control 4-13
  • Auto Shade Mode
  • Gradual Lightening
  • Settings Memory
  • Highspeed Tacking Mode
  • Weld, Grind, Cut Modes
  • ADF Exceptional Clarity
  • Optical Quality Rated 1/1/1/1 EN 1631
  • 36 Month Warranty
Weight 0.754 kg
Viewing Size

108mm x 74mm (4.56" x 3.20")

Set Size

Single Piece Set/Item

Style & Design

Graphite

Grind Mode

Yes

External Shade Control

Yes

Light State

DIN Shade 3

Dark State

DIN Shade 4-8/9-13 (Variable)

Light to Dark

0.04ms

Dark to Light

0.3-0.9 Seconds (External Variable)

Sensitivity

External Variable

UV/IR Protection

Permanent Shade DIN16

Power Supply

Built-In Solar Cells and Replaceable Battery Pack

Minimum Amp Requirement

5A

Storage Temperature

-20ºC to +70ºC (-4ºF to -158ºF)

Operating Temperature

-5°C to +55°C (23°F to 131°F)

Material

High Impact Polyamide Nylon

Warranty

36 months

Filter CE Optical Class

1/1/1/1 EN 16321

Conforms To

BS EN 175, BS EN 150 16321-1, Impact Rating E (120 m/s)

Reviews

There are no reviews yet.

Be the first to review “XR943H Welding & Grinding Helmet”

Your email address will not be published. Required fields are marked *

XR943H Instructions

Download

Operator Manual for XR943H Welding & Grinding Helmet - Issue Date 2024
