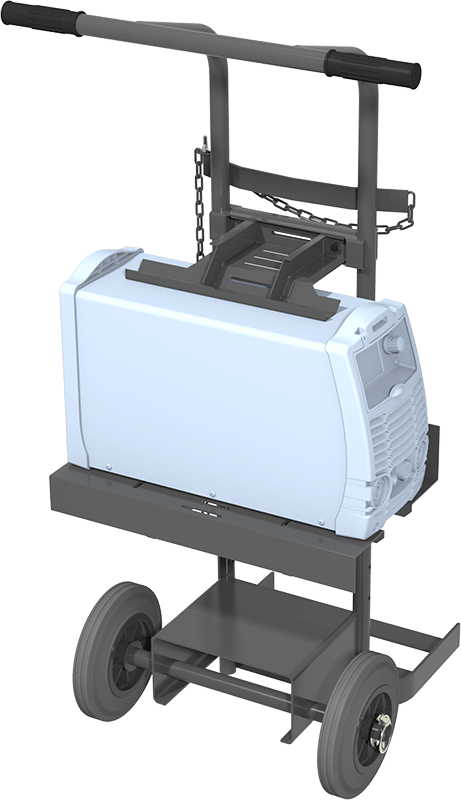

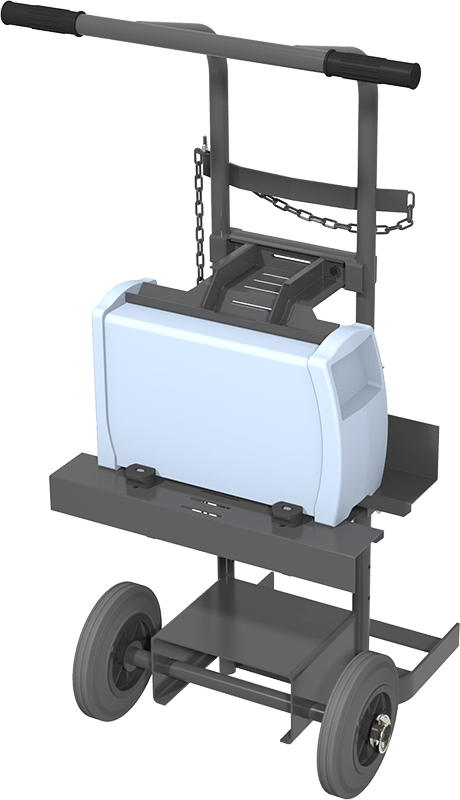

Parweld is rolling out a game-changing accessory for your welding setup: the new TR012 Universal Welding Machine Trolley. Designed to elevate both the convenience and safety of your workspace, this two-wheeled robust trolley offers more than just a place to rest your machine. While it’s the perfect companion for a range of popular Parweld units, including the XTT 202P, 207DVP, and 212Di, plus the XTM 161i, 201i, and 201Di, its true value lies in its versatility. Thanks to powerful base clamps and a universal strap, the TR012 can securely accommodate virtually any suitably-sized inverter welder. With the capacity to effortlessly carry a massive 85kg / 187lbs gas cylinder, secured by pre-attached chains, and featuring a dual-locking system that fastens your welder via the handle screw holes and base clamps, this trolley is engineered for maximum stability and mobility in the busiest of workshops.

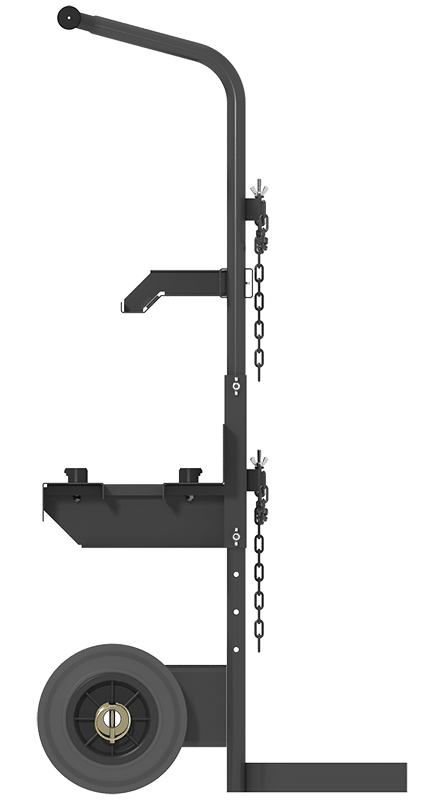

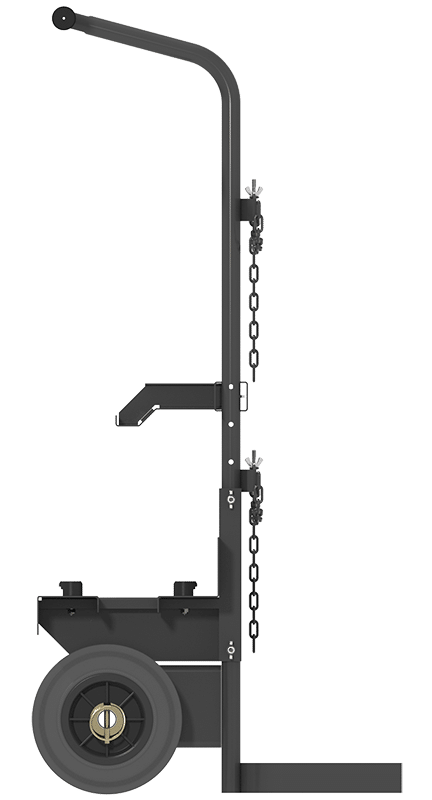

TR012 Trolley Positions
Machine Position & Hold

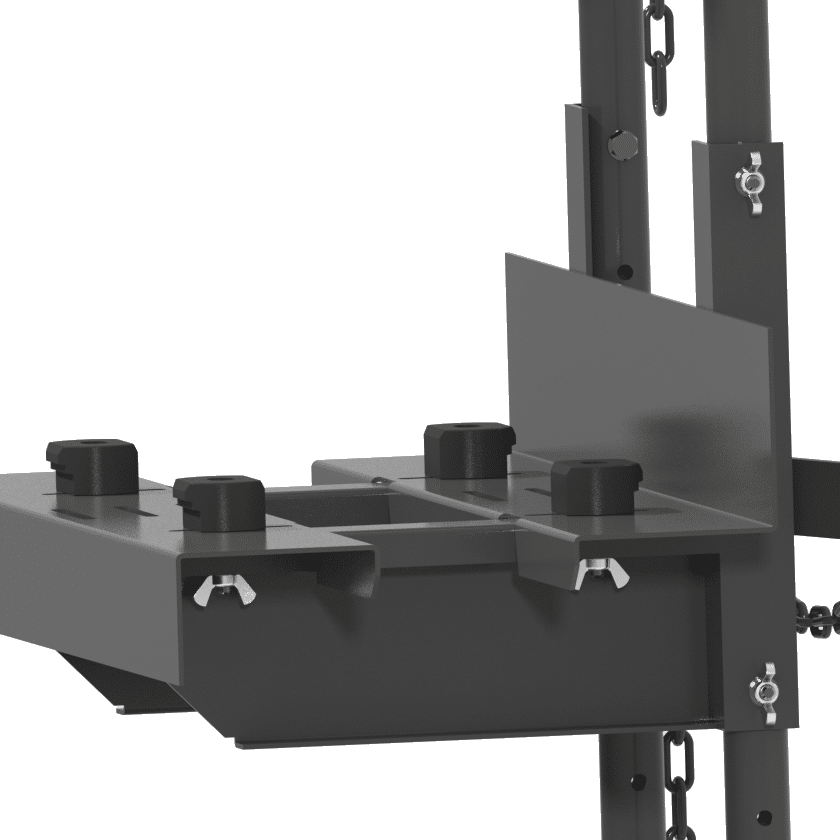

The tray offers flexible, multi-height positioning for various machines. Adjustment is fast and simple, utilising a wing nut fixing system and staggered holes for quick customisation
The tray offers flexible, multi-height positioning for various machines. Adjustment is fast and simple, utilising a wing nut fixing system and staggered holes for quick customisation
Four adjustable base clamps are provided for securing the inverter, utilising an easy-to-use wing-nut fixing. The clamps can be instantly adapted to hook onto the machine's base or be rotated to press firmly against its side features
Four adjustable base clamps are provided for securing the inverter, utilising an easy-to-use wing-nut fixing. The clamps can be instantly adapted to hook onto the machine's base or be rotated to press firmly against its side features
Features Unique Locking System (4-Point), developed for Parweld Compatible MIG/MAG Machines to allow convenient access to wire spool door

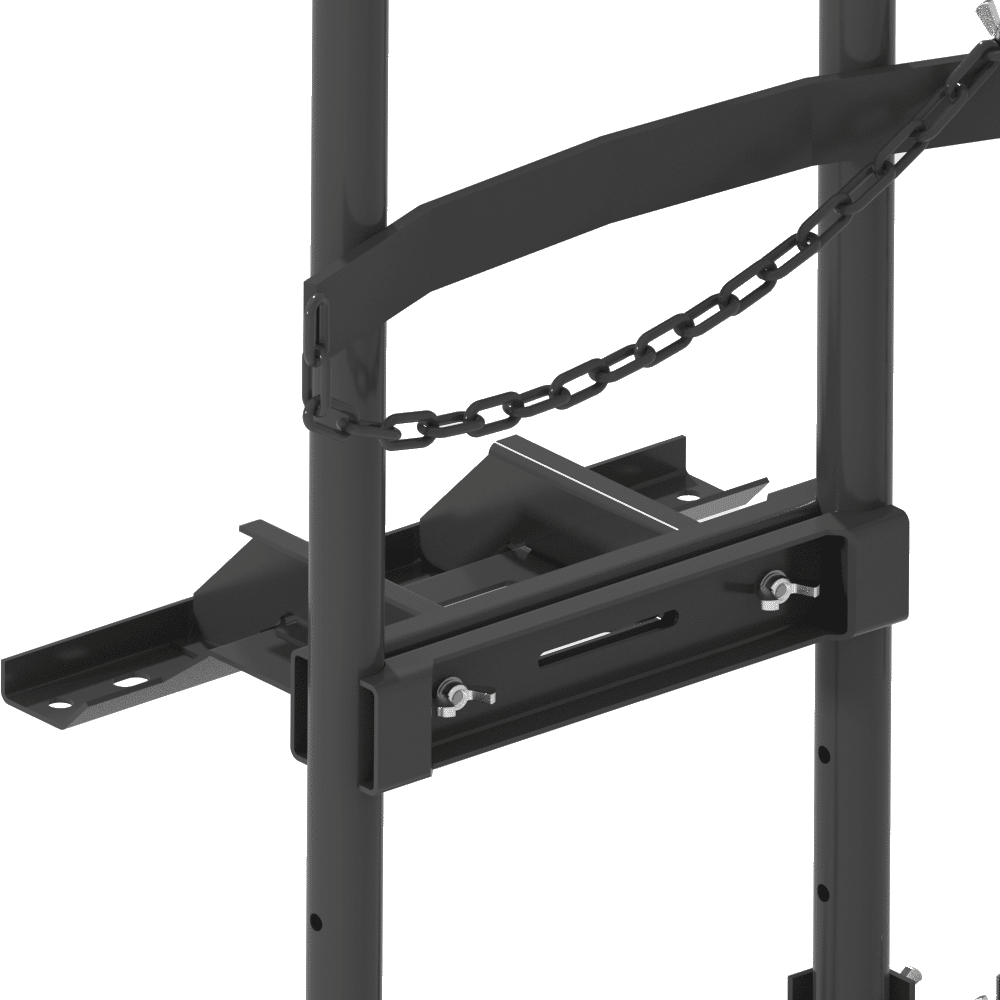

Top bracket height is tool-free and simple to customise. Loosen the wing nuts slightly to slide the bracket up or down, then re-tighten to secure
Top bracket height is tool-free and simple to customise. Loosen the wing nuts slightly to slide the bracket up or down, then re-tighten to secure
The top bracket's fixing holes align precisely with the Parweld inverter handle screw points, ensuring a quick and secure machine attachment
The top bracket's fixing holes align precisely with the Parweld inverter handle screw points, ensuring a quick and secure machine attachment
Both the Top Bracket and Inverter Base are Width Adjustable to accommodate various machines
Both the Top Bracket and Inverter Base are Height Adjustable to accommodate various machines
- The tray offers flexible, multi-height positioning for various machines. Adjustment is fast and simple, utilising a wing nut fixing system and staggered holes for quick customisation
- Four adjustable base clamps are provided for securing the inverter, utilising an easy-to-use wing-nut fixing. The clamps can be instantly adapted to hook onto the machine's base or be rotated to press firmly against its side features
- Features a Unique Locking System (4-Point), developed for Parweld Compatible MIG/MAG Machines to allow convenient access to wire spool door
- Maximum Machine Weight of 40kg (including accessories)
- The top bracket's fixing holes align precisely with the Parweld inverter handle screw points, ensuring a quick and secure machine attachment
- Top bracket height is tool-free and simple to customise. Loosen the wing nuts slightly to slide the bracket up or down, then re-tighten to secure
Both the Top Bracket and Inverter Base are Width Adjustable to accommodate various machines
Additional TR012 Capabilities

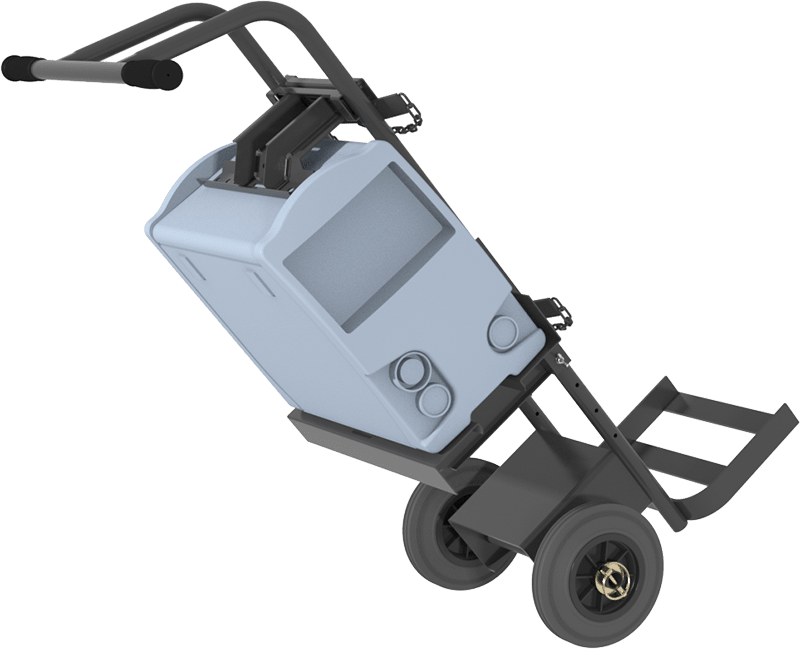

TR012 Tilt & Tip Capabilities
Attachment is achieved via the top bracket, which fastens directly into the inverter's handle screw holes, and powerful base clamps. This dual-locking system guarantees the machine's stability and prevents any movement, allowing the trolley to be safely tipped to any extreme angle.

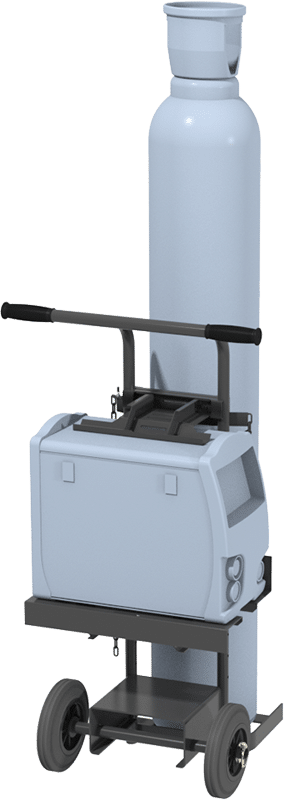

TR012 Gas Bottle/Cylinder Stand
Capable of securely holding an 85kg / 187lbs cylinder, the tray's strength ensures the trolley remains effortlessly mobile. For securing the cylinder to the trolley, chains are provided and pre-attached to the TR012 trolley.
Strap For Machines
Beyond the standard unit, the trolley can accommodate other suitably sized inverter welders. Simply use the provided base clamps and strap for a universal, secure mounting solution. The strap can also provide an additional layer of strength and stability for existing Parweld inverters designed to fit the TR012 trolley.

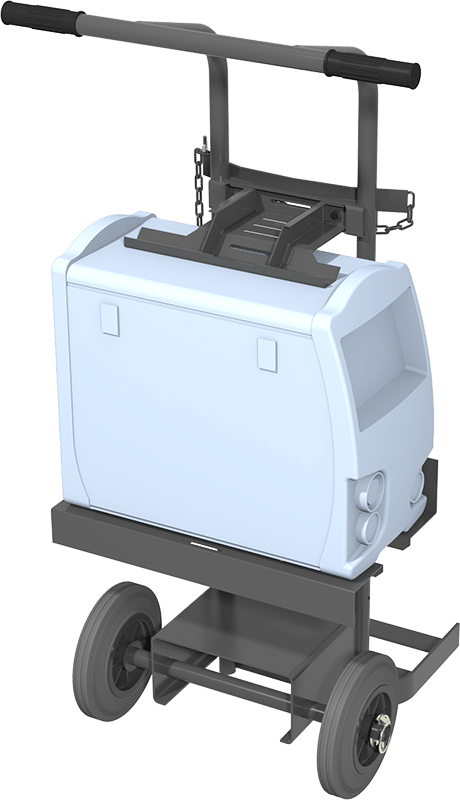

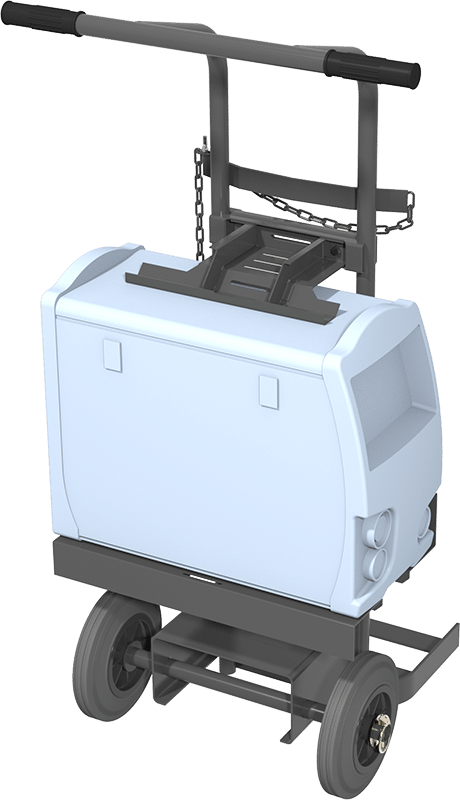

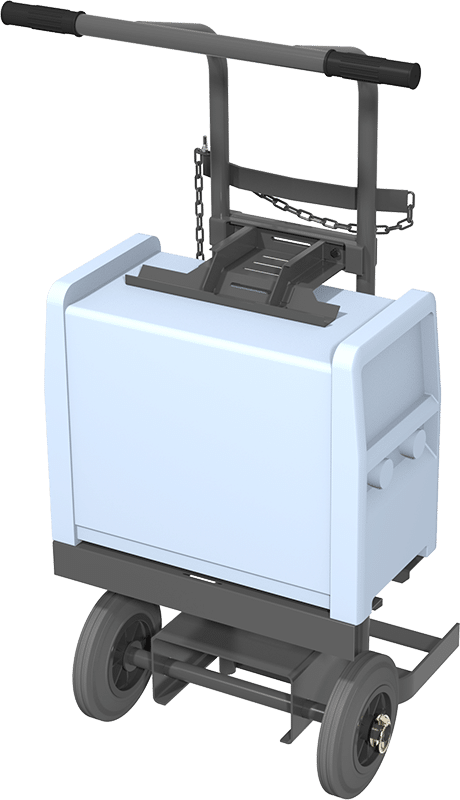

Compatible Machines With TR012 Trolley
The TR012 is compatible with all Parweld Single Phase TIG and 5kg MIG/MAG Machines, alongside Non-Parweld branded Welding Machines*. The TR012 is best suited to the following Parweld MIG/MAG & TIG Welding Power Source Machines:
*Please check with the machine manufacturer for further details on compatibility.
