Weld Bridge Cam Type Gauge
SKU Product Code: MG-BRI
- Manufactured From Stainless Steel
- Imperial & Metric Scales
- Supplied In A Plastic Storage Case
Specs & Applications
- Prep angle inspection 0-60° (degrees)
- Capping Size
- Depth Of Undercut
- Depth Of Pitting
- Fillet Throat Size
- Fillet Leg length
- Hi-Low Misalignment
Automatic Weld Size Gauge (AWS)
SKU Product Code: MG-AWS
- Manufactured From Stainless Steel
- Imperial Scale
- Supplied In A Soft Pocket Wallet
Specs & Applications
- Capping size (Convexity)
- Depth of under fill (Concavity)
- Fillet Leg length
Tapered Gap Gauge
SKU Product Code: MG-TPR
- 1 - 15mm, 1/64” – 5/8”
- Manufactured From Stainless Steel
- Imperial & Metric Scales
- Supplied In A Soft Pocket Wallet
Specs & Applications
-Measurement of weld prep gaps
-Hole size checking
Visual Weld Appearance Gauge
SKU Product Code: MG-VWAC
- Manufactured from stainless steel
- Checks under cutting 0-1/4”
- Checks crown height 0-1/4”
- Porosity hole size comparator 1/8” and 1/16”
- Scale for checking number of defects per inch
- Imperial Scale
- Supplied In A Soft Pocket Wallet
Hi Lo Fit-Up Gauge
SKU Product Code: MG-HILO
- Manufactured from stainless steel
- Checks for misalignment between parts on internal and external joints check
- Checks crown height 0-1/4”
- Porosity hole size comparator 1/8” and 1/16”
- Scale for checking number of defects per inch
- Imperial & Metric Scales
- Fillet Leg Height Measurement
- Crown Height Measurement
- Pipe Thickness Measurement
- Supplied In A Hard Protective Case

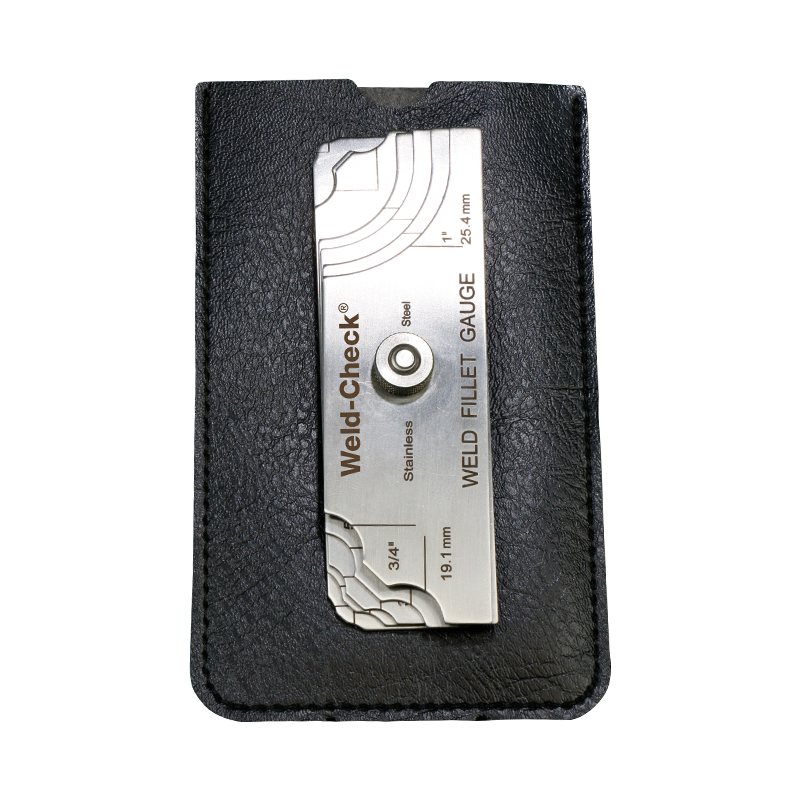

Weld Fillet Gauge
SKU Product Code: MG-FILL
- Manufactured from stainless steel
- Rapid measurement of concave and convex weld fillets
- Measures 1/8” to 1” (3.2mm to 25.4mm)
- Imperial & Metric Scales
- Supplied In A Soft Pocket Wallet
