XTM 256i
250A MIG Inverter Machine
XTM 256i
250A MIG Inverter Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:

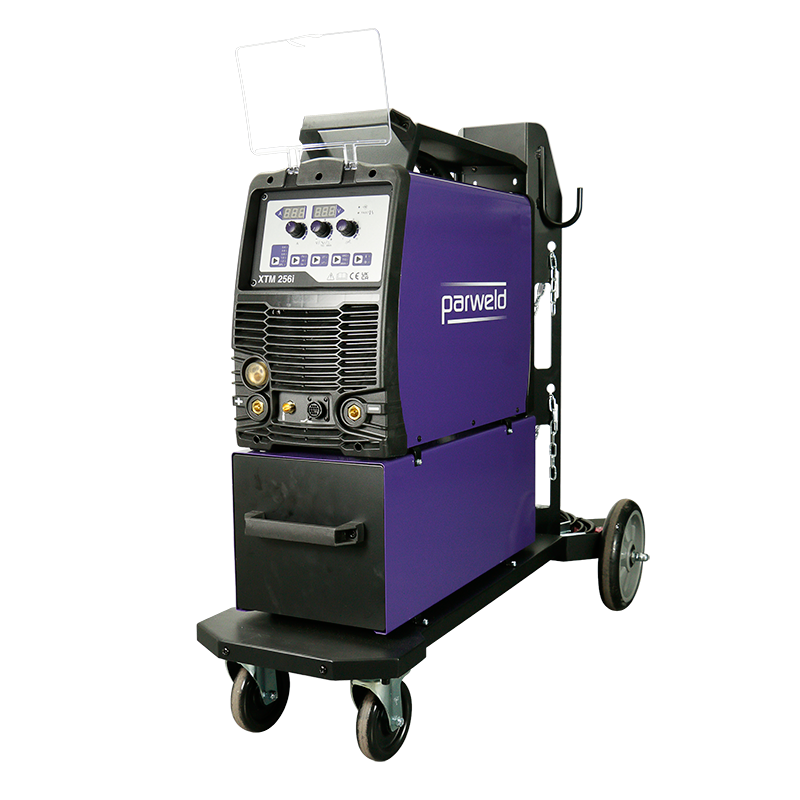

The XTM 256i three phase MIG Inverter is a high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate. The XTM 256i Power Source Welding Machine comes ready assembled to the TR008 Trolley, which is equipped witha conveniant practical drawer attachment.
Key Features Include:
- Multi-Process MIG/TIG/MMA Welding
- 400V Three Phase Machine
- Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
- Synergic Control
- Fan On Demand
- 2T / 4T Trigger Latching
- Real Time Display of Parameters and Data
- Soft Switching Technology for improved efficency
- Clear Visor for Front Panel Controls Protection
- Supplied with Gas Hose and 3m Earth Lead
| Weight | 23 kg |
|---|---|
| Dimensions | 660 × 280 × 500 mm |
| Phase | Three Phase |
| Machine Style | Compact, Portable |
| Machine Type | Inverter |
| Maximum Current | 250A DC |
| Duty Cycle | 250A @ 35% Duty Cycle |
| Input Voltage | 400V 3P |
| Voltage | 10.4-20V (TIG), 14.5-26.5V (MIG), 20.4-30V (MMA) |
| Feed Box | 4 Roll Drive |
| Input Current (Eff) | MIG – 9.3A, TIG – 7.9A, MMA – 10.9A |
| Output | DC |
| Wire Size | 0.6-1.2mm |
| Spool Size | 200mm (5kg), 300mm (15kg) |
| Minimum Fuse Rating | 16A |
| KVA | 11.6 |
| Generator Size (Requires AVC) | 13 KVA |
| Enclosure Protection | IP23S |
| Cooling | Air, Fan, On Demand, Water (with Unit Attachment) |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose, TR008 Trolley |
| Ideal for Applications | Industrial Manufacturing, Metal Fabrication, Synergic Program for Steel, Training |
| Special Features | 2T/4T Latching, Bottle Stand, Storage Drawer, Synergic Control, Synergic Welding Rapid Set Up |
| Warranty | 5 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS compliant |
