XTP
Series
PLASMA Cutting From Parweld
Combined with a Plasma Cutting Torch, the Parweld XTP inverters are the ideal machine for any metalwork application. Plasma Cutters are used to cut any metal material, such as Stainless Steel, Mild Steel, Aluminium, Brass, Copper etc. They are not suitable for cutting plastics, wood, ceramic, glass and masonry materials.
Parweld Plasma Cutters utilise a high velocity ionised gas to enable efficient and clean cuts through various metals, giving operators more control over their cuts to reach their specific cutting requirements. Parweld manufactures inverters with the ability to produce intricate cuts, whilst ensuring minimal heat affected zones and providing high cutting speeds, regardless of the material thickness. The Parweld aim is to produce Plasma Power Sources that are a key asset to any thin or thick metal cutting projects.
| XTP40 Line | XTP63 Line | XTP105 | |
|---|---|---|---|
| INPUT SUPPLY | 110V / 230V 1P (Auto-Select) | 400V 3P (±15%) | 400V 3P (±15%) |
| OUTPUT CURRENT | 10A – 40A DC | 10A – 60A DC | 20A – 100A DC |
| DUTY CYCLE @ 40°C | 40A @ 40% / 25A @ 100% | 60A @ 40% / 38A @ 100% | 100A @ 100% |
| AIR SUPPLY PRESSURE | 4.5 – 5.0 bar (65–75 psi) | 4.5 – 5.0 bar (65–75 psi) | 5.0 – 6.0 bar (75–90 psi) |
| AIR FLOW REQUIREMENTS | 110 L/min (3.9 CFM) | 110 L/min (3.9 CFM) | 200 L/min (7.0 CFM) |
| ARC IGNITION | Non-HF Pilot Arc | Non-HF Pilot Arc | Pilot Arc Safety Start |
| PRODUCTION CUT | Up To 20mm (0.8") | Up To 25mm (1.0") | Up To 30mm (1.2") |
| SEVERANCE CUT | Up To 25mm (1.0") | Up To 35mm (1.4") | Up To 50mm (2.0") |
| View Machines | View Machines | View Machine |
These Plasma Cutting machines range from 40 - 100 AMPS, all capable of PLASMA Cutting On-Site and in Workshop Applications. With a cutting capacity ranging from 0mm - 50mm, all these inverters are fitted with a Mesh Cutting Option, whilst the XTP40CNC & XTP105i also features a CNC Automation Interface.
Portable inverter unit requiring external air supply. Ideal for general site fabrication, autobody work, and everyday metal maintenance duties.

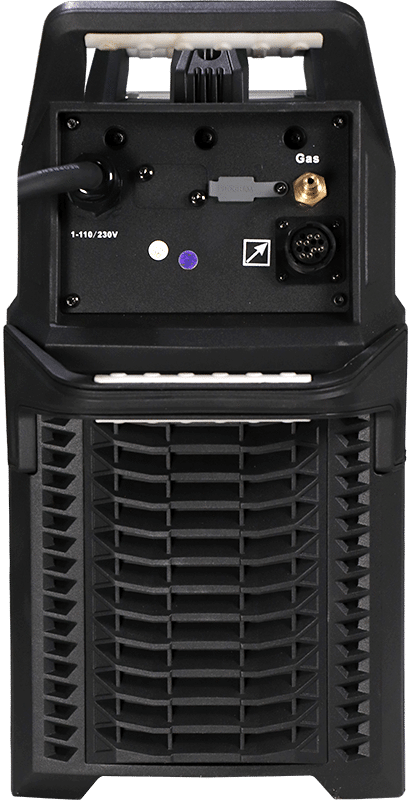

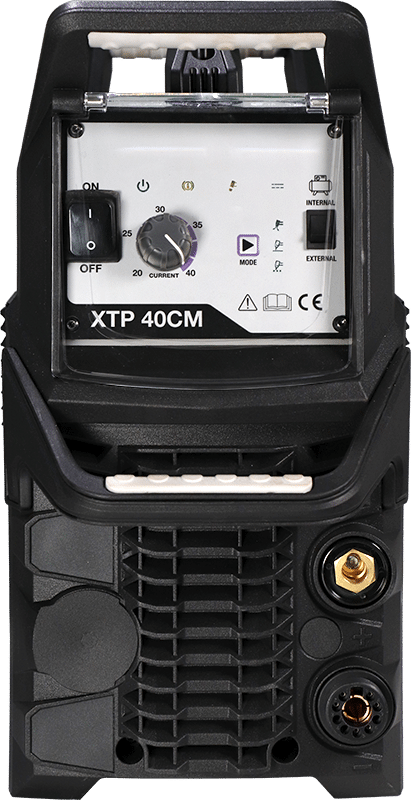

Built-in oil-free compressor for complete standalone cutting. Features a dual-air switch to instantly toggle to external shop air.

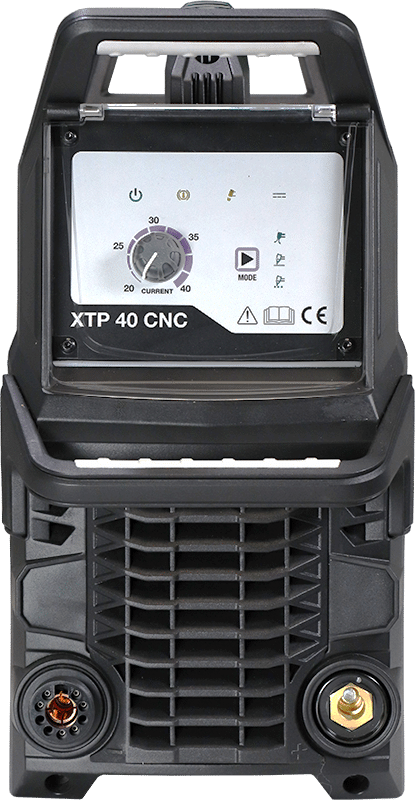

Factory-installed CNC interface port with straight machine torch. Purpose-built for seamless integration into light automated tables.
| Cutting Capability | Any Metal Material |
| Production Cut | 12mm (0.5") |
| Severance Cut | 20mm (0.8") |
| Input Current (Effective) | 16A (110V), 32A (230V) |
| Minimum Fuse Rating | 14.8A (110V), 18.5A (230V) |
| Power Rating (KVA) | 3.7 KVA |
| Generator Size (Requires AVC) | 5 KVA |
| Phase | Single Phase |
| Built-in Components | Air Pressure Regulator |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP23S |
| Dimensions (L × W × H) | 430 × 170 × 300 mm |
| Weight | 12.6 kg |
| Supplied Torch Model | XT4000 Plasma Torch |
| Included Accessories | 3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch |
| Standards & Conformity | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
| Cutting Capability | Any Metal Material |
| Production Cut | 20mm (0.8") |
| Severance Cut | 25mm (1.0") |
| Input Current (Effective) | 22.8A (110V) / 22.0A (230V) |
| Minimum Fuse Rating | 16A (230V) |
| Power Rating (KVA) | 6.0 KVA |
| Generator Size (Requires AVC) | 6 KVA |
| Phase | Single Phase |
| Built-in Components | Air Compressor, Air Pressure Regulator, Pressure Gauge |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP21S |
| Dimensions (L × W × H) | 655 × 230 × 450 mm |
| Weight | 24.7 kg |
| Supplied Torch Model | XT4000 Plasma Torch (6m) |
| Included Accessories | 3m Earth Cable, 6m XT4000 Plasma Torch |
| Standards & Conformity | IP21S |
| Cutting Capability | Any Metal Material |
| Production Cut | 20mm (0.8") |
| Severance Cut | 25mm (1.0") |
| Input Current (Effective) | 23.0A (110V) / 16.0A eff. (230V) |
| Minimum Fuse Rating | 16A (230V) |
| Power Rating (KVA) | 6.0 KVA |
| Generator Size (Requires AVC) | 15 KVA |
| Phase | Single Phase |
| Built-in Components | Air Pressure Regulator, Pressure Gauge |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP21S |
| Dimensions (L × W × H) | 655 × 230 × 450 mm |
| Weight | 24.7 kg |
| Supplied Torch Model | XT4000 Plasma Torch (6m) |
| Included Accessories | 3m Earth Cable, 6m XT4000 Plasma Torch |
| Standards & Conformity | IP21S |
| Cutting Capability | Any Metal Material |
| Production Cut | 20mm (0.8") |
| Severance Cut | 30mm (1.2") |
| Input Current (Effective) | 7.6A |
| Minimum Fuse Rating | 20A |
| Power Rating (KVA) | 7.0 KVA |
| Generator Size (Requires AVC) | 10 KVA |
| Phase | Three Phase |
| Built-in Components | Air Pressure Regulator, Pressure Gauge |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP23S |
| Dimensions (L × W × H) | 450 × 170 × 310 mm |
| Weight | 13.0 kg |
| Supplied Torch Model | XT4000 Plasma Torch |
| Included Accessories | 3m Earth Cable, 3m Input Cable, XT4000 Plasma Torch |
| Standards & Conformity | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
| Cutting Capability | Any Metal Material |
| Production Cut | 25mm (1.0") |
| Severance Cut | 35mm (1.4") |
| Input Current (Effective) | 18.0A |
| Minimum Fuse Rating | 20A |
| Power Rating (KVA) | 7.0 KVA |
| Generator Size (Requires AVC) | 10 KVA |
| Phase | Three Phase |
| Built-in Components | Air Compressor, Air Pressure Regulator, Pressure Gauge |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP23 |
| Dimensions (L × W × H) | 530 × 250 × 400 mm |
| Weight | 25.0 kg |
| Supplied Torch Model | XT4000 Plasma Torch (6m) |
| Included Accessories | 3m Earth Cable, 6m XT4000 Plasma Torch |
| Standards & Conformity | IP23 |
High-performance 3-phase industrial plasma cutter engineered for heavy fabrication and thick-section production cutting. Delivers maximum duty cycles and exceptional pierce capacity for severe industrial environments. Comes with factory-ready interface option equipped with pre-wired CNC machine signals and arc voltage output, designed for seamless integration with automated plasma tables and robotic cutting cells.
| Cutting Capability | Any Metal Material |
| Production Cut | 30mm (1.2") |
| Severance Cut | 50mm (2.0") |
| Input Current (Effective) | 21.6A |
| Minimum Fuse Rating | 32A |
| Power Rating (KVA) | 13.0 KVA |
| Generator Size (Requires AVC) | 15 KVA |
| Phase | Three Phase |
| Built-in Components | Air Pressure Regulator, Pressure Gauge |
| Cooling Type | Air, Fan, Forced |
| Enclosure Protection Class | IP23S |
| Dimensions (L × W × H) | 530 × 250 × 400 mm |
| Weight | 25.0 kg |
| Supplied Torch Model | XTY125 Plasma Torch |
| Included Accessories | 3m Earth Cable, 3m Input Cable, XTY 125 Plasma Torch |
| Standards & Conformity | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
The Compressor Machine have an Integrated Air Supply. Standard XTP units require a separate, dedicated external air compressor connected via an air line to operate.
Internal Compressed Air: Features a fully integrated, built-in air compressor, eliminating the need to haul an external air compressor to job sites.
Plug-and-Play Mobility: Ideal for site work, maintenance teams, and mobile repairs where external compressed air infrastructure is unreliable or unavailable.
Footprint Efficiency: Saves workshop and vehicle space by combining power source and air supply into a single, compact chassis.
Dual Air Source Capability: Allows users to switch to external shop air when available, saving wear on the internal compressor during heavy workshop use.
The Computer Numerical Control Machine Line feature Automated System Integration. While standard XTP machines are configured strictly for manual hand-torch cutting, the CNC variants are pre-configured out of the box to interface directly with automated CNC cutting tables.
Automated Interface Port: Equipped with a dedicated rear CPC/CNC rear connector port supplying start/stop signals, transfer arc signals, and divided arc voltage feedback to the CNC controller.
Machine Torch Ready: Engineered to pair directly with straight machine torches (rather than standard handheld ergonomic torches) for seamless mounting onto CNC gantries.
Voltage Divider Integration: Features built-in selectable voltage divider ratios to protect automated table controllers from high voltage voltage spikes.
Duty Cycle & Heavy-Duty Scaling: Includes higher-output models like the XTP105i designed for industrial, high-duty-cycle automated production cutting that far exceeds standard manual cutting requirements.
| Feature Focus | Standard Line (XTP 40 / 63) | CM Line (XTP40CM / 63CM) | CNC Line (XTP40CNC / 105i) |
|---|---|---|---|
| Primary Use | Manual workshop cutting | Mobile / Site cutting | Automated table cutting |
| Air Source | External compressor required | Built-in internal compressor | External compressor required |
| Torch Type | Handheld torch | Handheld torch | Machine / Straight torch |
| Signal Interface | None (Manual trigger) | None (Manual trigger) | CNC Interface / Arc Voltage |
