MIG/MAG Torch End Connector Options
Our MIG torches come with a euro connection as standard. If you require a different connection for your torch, simply update the torch part number when ordering. With any MIG air cooled torch from any MIG torch range, change the last letter from ‘E’ (for the Euro fitting) to one of the power pin stock code letters. Example - For a Tweco® termination XP8 300A the standard Euro terminated torch package stock code changes from XP300A-40E to XP300A-40T.
| STOCK CODE | MACHINE TYPE |
|---|---|

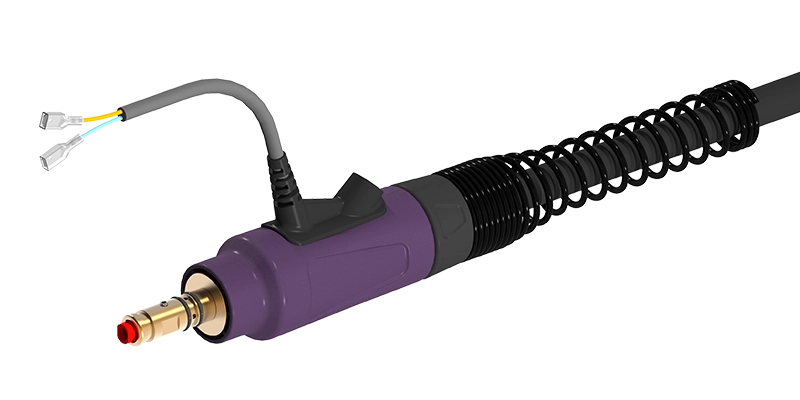

| T COMPATIBLE WITH | Tweco® |

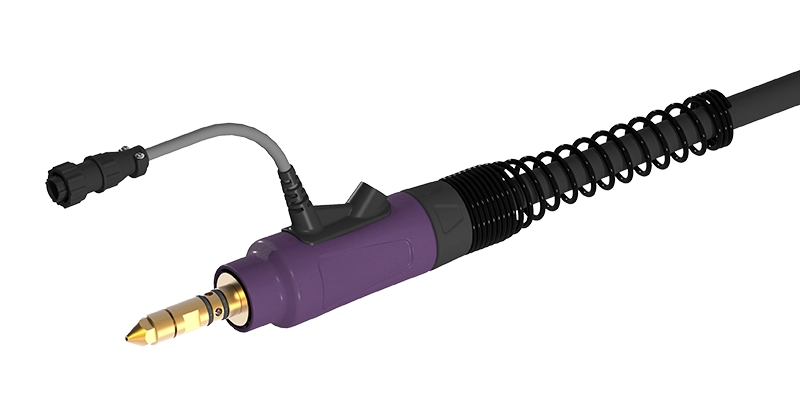

| M COMPATIBLE WITH | Miller® |

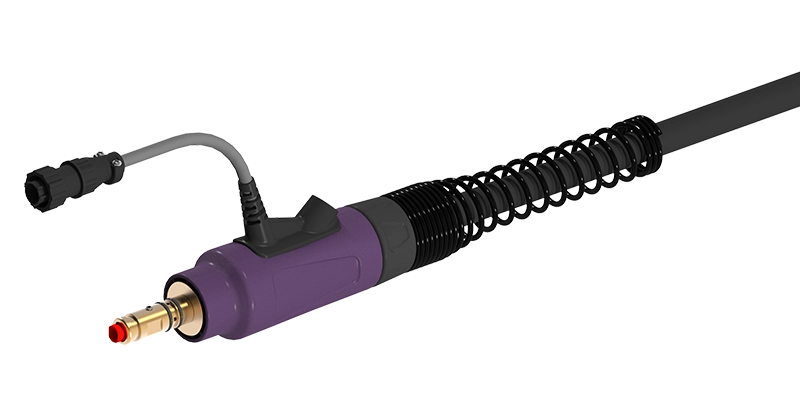

| N COMPATIBLE WITH | NAS (Lincoln® Std) |

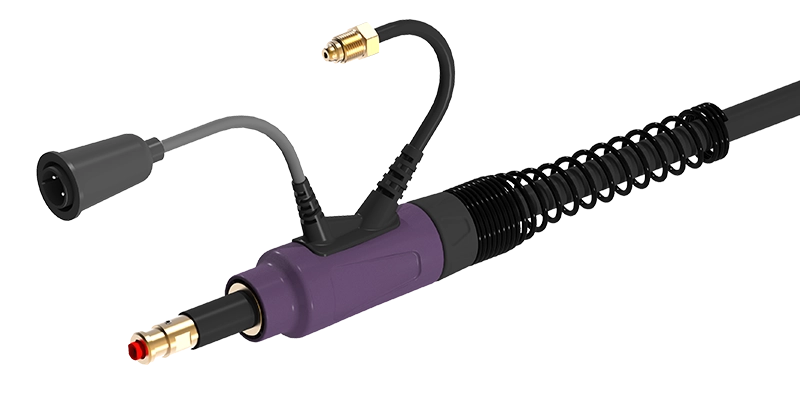

| LS COMPATIBLE WITH | Lincoln Electric® SP |

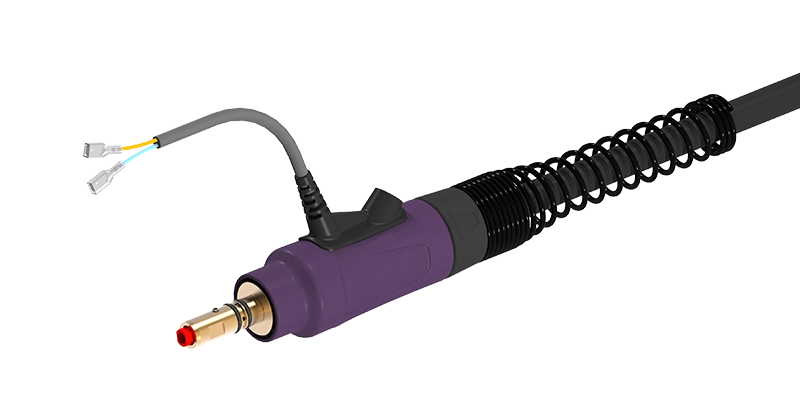

| H COMPATIBLE WITH | Hobart® |

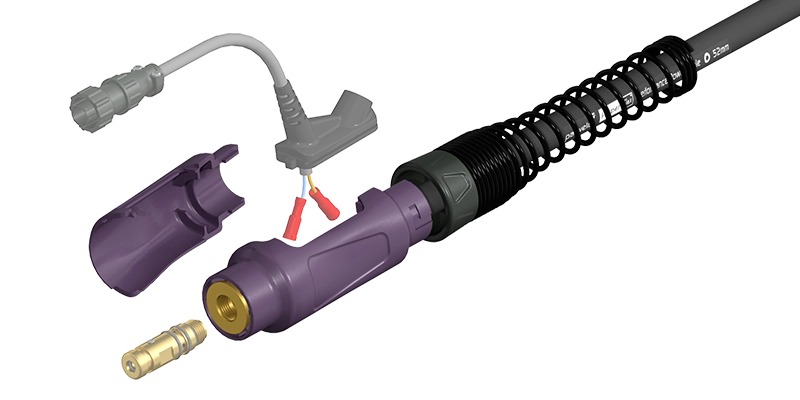

Modular Power Pin Torch Conversion Kit
The modular power pins can easily be changed over enabling a torch to be used more flexibly on a wide range of American type MIG power sources. A modular adaptor body replaces the Euro plug. Torches can be supplied converted or a conversion kit is available to change an existing Euro fitting torch to the modular power pin system. A wide range of power pin kits are available, made for each torch range to suit the liner fitting. A pin kit consists of a power pin complete with a switch lead assembly. The chosen modular pin is screwed into the adaptor body, the switch lead assembly installed to the torch housing and terminals connected.

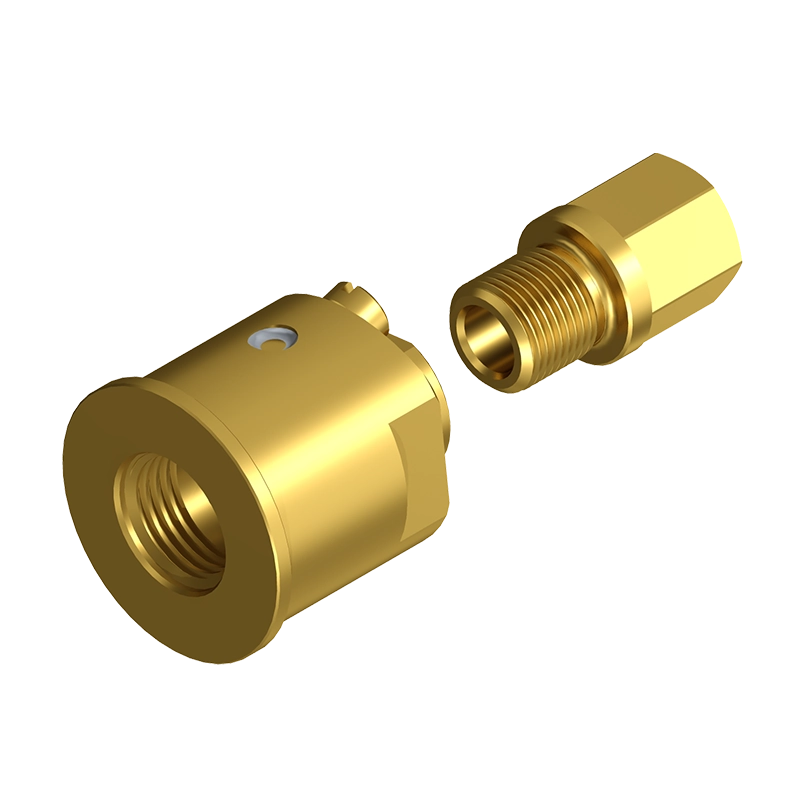

Modular Adaptor Body Kits*
| RANGE | STOCK CODE | DESCRIPTION |
|---|---|---|
| XP8 | XP2022A | Adaptor Body |
| BZL, PRO-FC 350A | BZL1528AK | Adaptor Body c/w M10 Connector |
| TWC | XP2022A | Adaptor Body |
| BND | BND5060AK | Adaptor Body c/w 1/4" NPT Connector |
| TRG | TRG414AK | Adaptor Body c/w 9/16" UNF Connector |
| PRO FC 450A | LNE450AK | Adaptor Body c/w M14 Connector |
*Required if your torch is not already fitted with a modular power pin.
Kit Ordering Guide
To order a replacement/alternative pin and switch lead kit, follow the part number key shown below. The example is for a Tweco® pin termination kit for an XP8 air cooled torch already fitted with a modular pin adaptor body, the number will be as shown.
TW
1. Pin/Machine Type
2022
2. Torch Range
MK
3. Kit Type
| STOCK CODE | MACHINE TYPE |
|---|---|
| TW | Tweco® No.4 |
| ML | Miller® |
| NS | NAS® |
| LS | Lincoln Electric® SP |
| HB | Hobart® |
| STOCK CODE | RANGE |
|---|---|
| 2022 | XP8 |
| 1528 | BZL |
| 1575 | TWC |
| 5060 | BND |
| 414 | TRG |
| 6028 | PRO-FC |
| STOCK CODE | DESCRIPTION |
|---|---|
| MK | Modular Kit |
Check out your nearest Parweld distributor for details on what is available for you.
Or alternatively, contact Parweld Head Office for more details.
