Sirocco

by Parweld

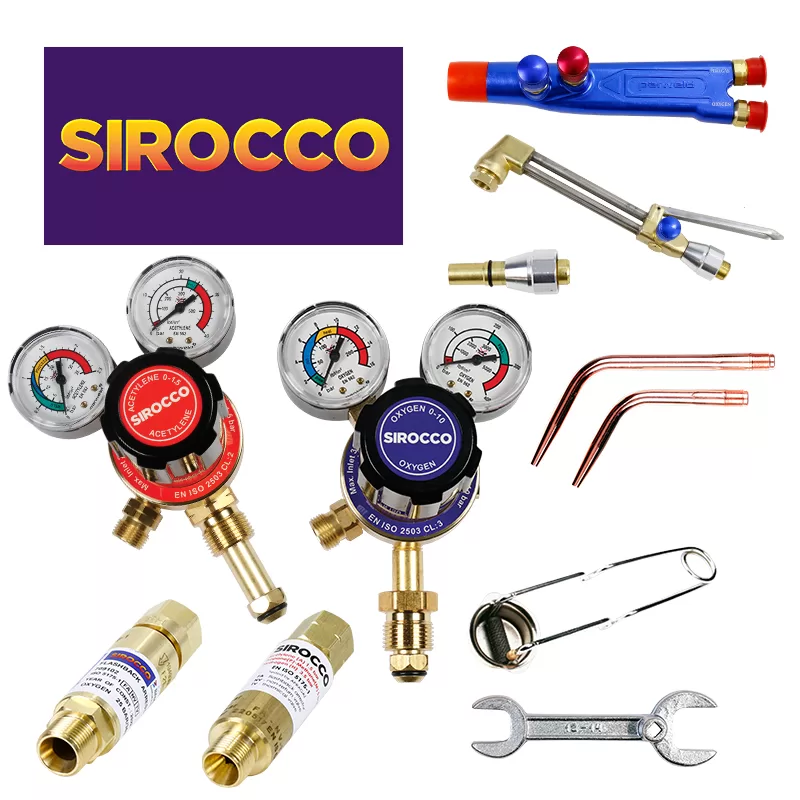

Sirocco Gas Regulators

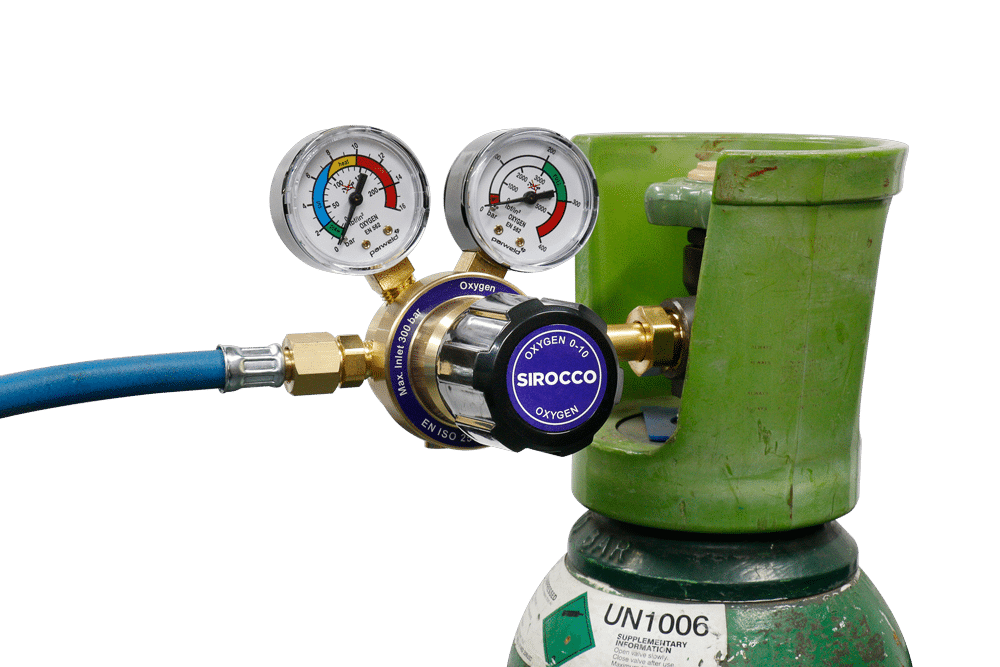

OXYGEN
  • Available in Single Stage Plugged and Single Stage 2 Gauges
  • 300 Bar Input Pressure
  • 10 Bar Maximum Outlet Pressure
  • High-Quality valve operation for reliable and consistent delivery
  • Accurate gauges for optimal gas consumption (NOTE - Not Available on Single Staged Plugged Regulators)
  • Robust construction for extended service
ACETYLENE
  • Available in Single Stage Plugged and Single Stage 2 Gauges
  • 25 Bar Input Pressure
  • 1.5 Bar Maximum Outlet Pressure
  • High-Quality valve operation for reliable and consistent delivery
  • Accurate gauges for optimal gas consumption (NOTE - Not Available on Single Staged Plugged Regulators)
  • Robust construction for extended service

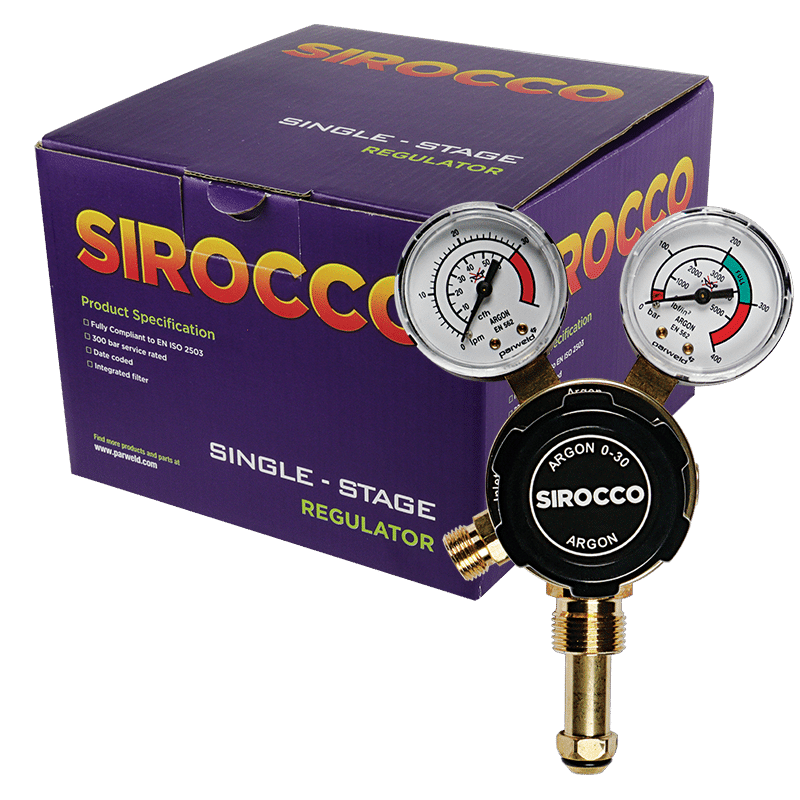

ARGON
  • Available in Single Stage 1 and Single Stage 2 Gauges
  • 300 Bar Input Pressure
  • 30 Ipm flow Maximum Outlet Pressure
  • High-Quality valve operation for reliable and consistent delivery
  • Accurate gauges for optimal gas consumption
  • Robust construction for extended service
CO2
  • 300 Bar Input Pressure (Side Entry)
  • 4.0 Bar Maximum Outlet Pressure
  • High-Quality valve operation for reliable and consistent delivery
  • Accurate gauges for optimal gas consumption
  • Robust construction for extended service
PROPANE
  • 25 Bar Input Pressure
  • 4.0 Bar Maximum Outlet Pressure
  • High-Quality valve operation for reliable and consistent delivery
  • Single Stage Plugged Regulator
  • Robust construction for extended service

Sirocco Flashback Arrestors

In-Line
Resettable

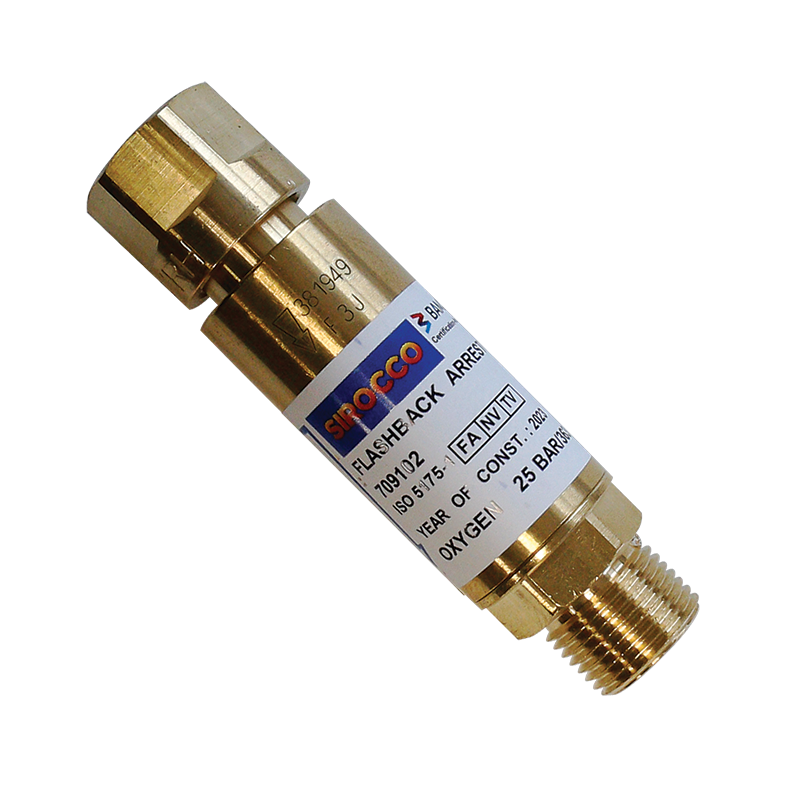

Oxygen
709102
  • 3/8” BSP Male/Female for Connection to Regulator.
  • Manufactured to offer a high level of protection.
  • Large sintered element coupled with non return valve
  • Includes thermal cut off valve which activates when the heat sensitive element reaches 100ºC

  • Fuel

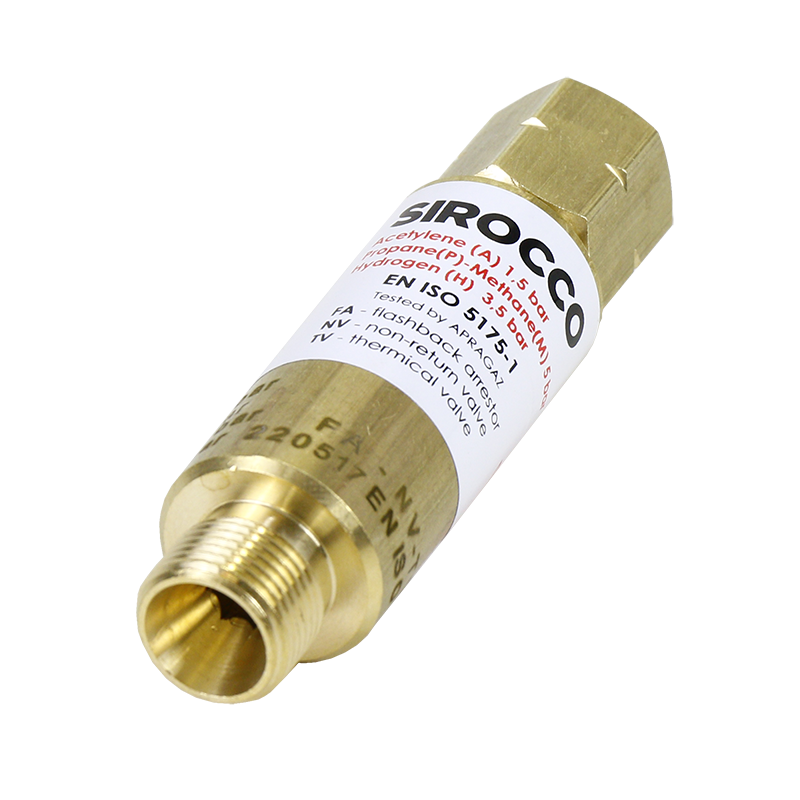

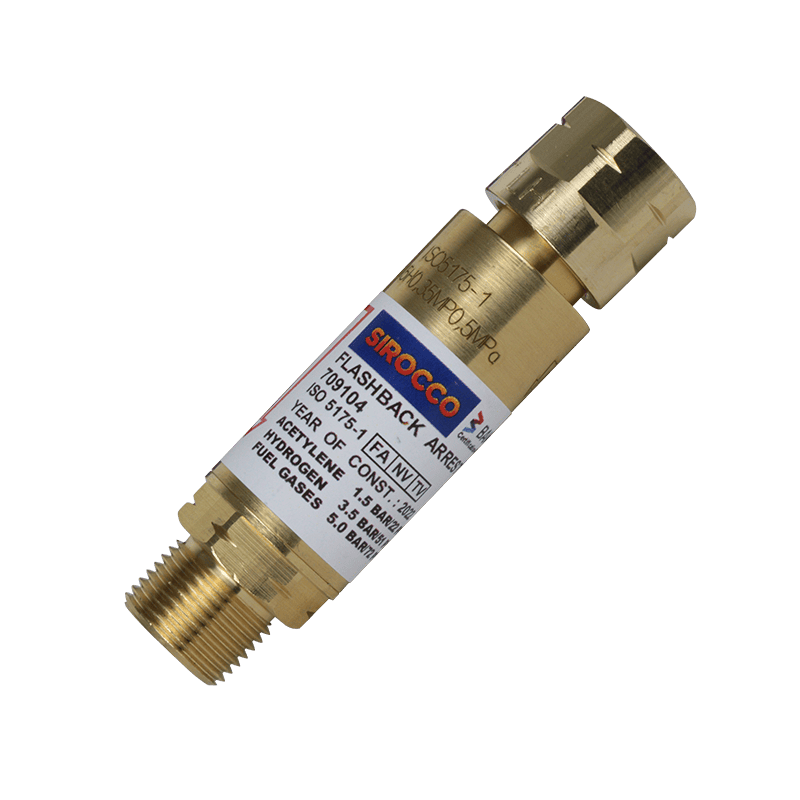

    709104
  • 3/8” BSP Male/Female for Connection to Regulator.
  • Manufactured to offer a high level of protection.
  • Large sintered element coupled with non return valve
  • Includes thermal cut off valve which activates when the heat sensitive element reaches 100ºC

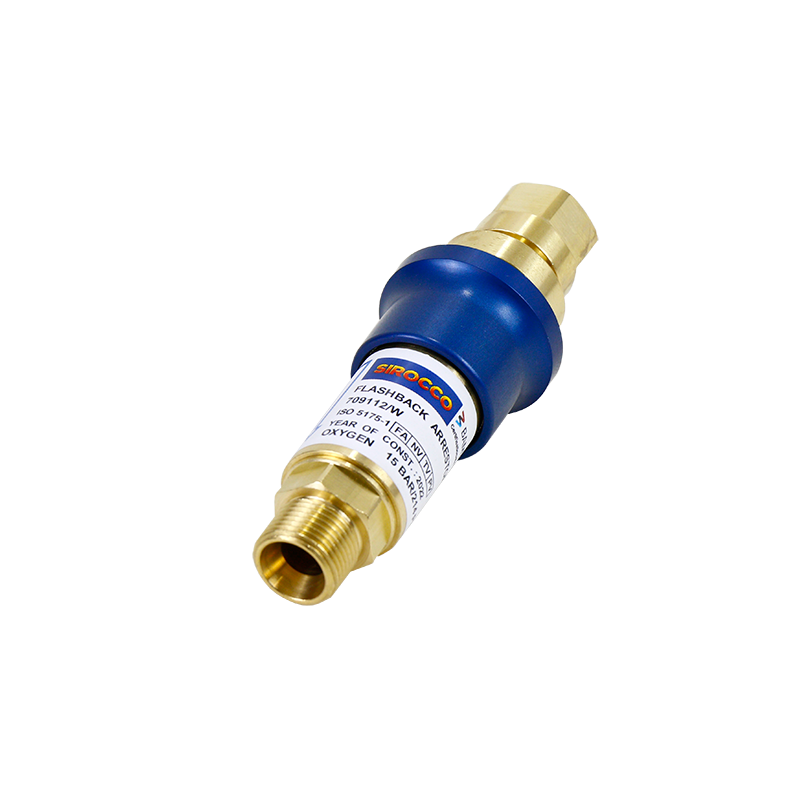

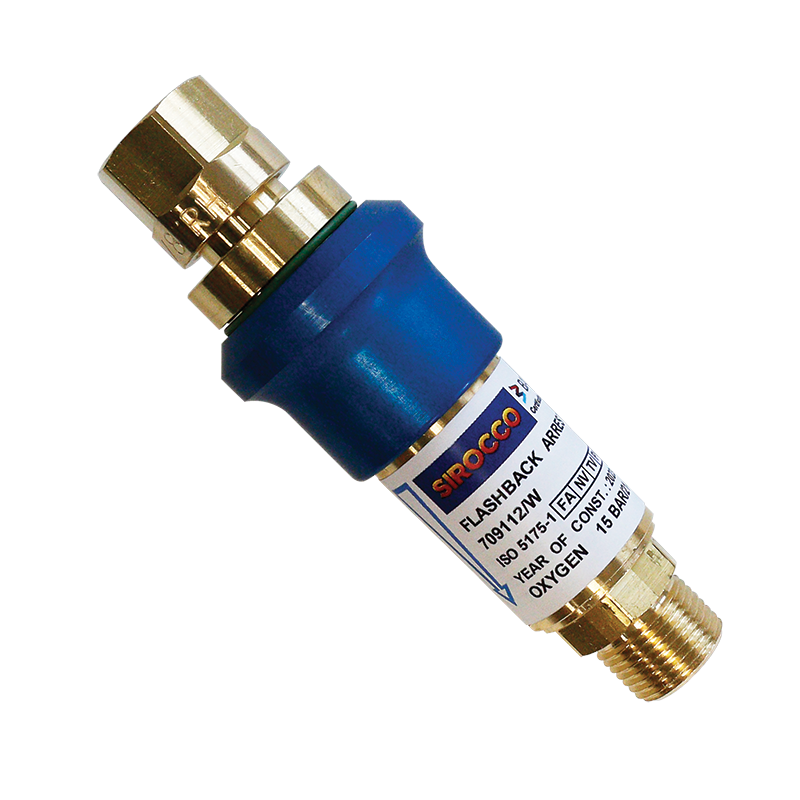

  • Oxygen
    709112/W
  • 3/8” BSP Male/Female for Connection to Regulator.
  • Designed to extinguish the flame front and ensure that it does not reach the cylinder or gas supply system
  • Large sintered flame arrestor element
  • Resettable pressure sensitive control valve
  • Fully guided non-return valve
  • Inlet dirt filter

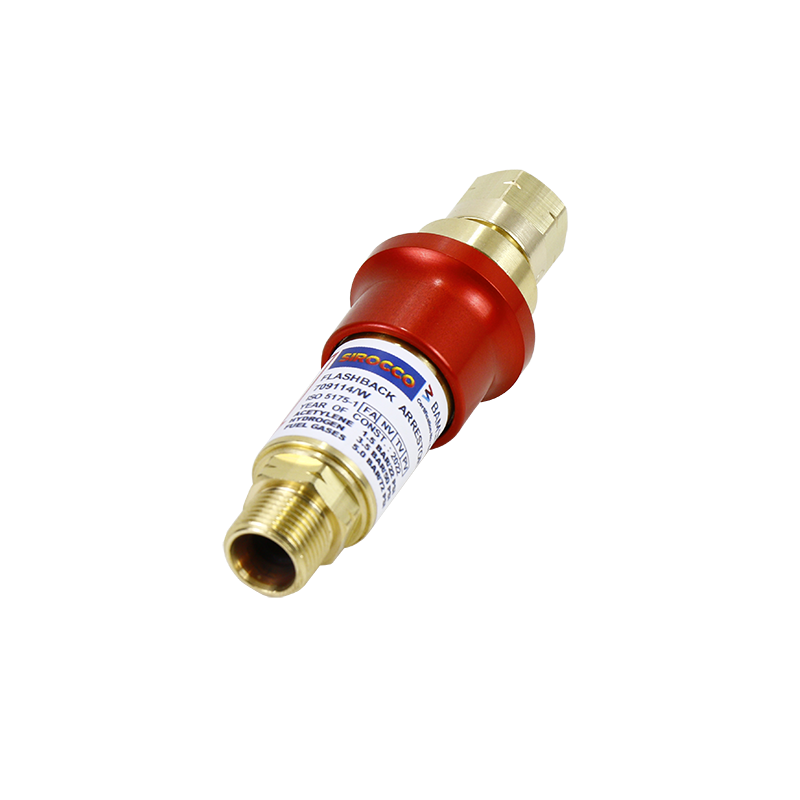

  • Fuel
    709114/W
  • 3/8” BSP Male/Female for Connection to Regulator.
  • Designed to extinguish the flame front and ensure that it does not reach the cylinder or gas supply system
  • Large sintered flame arrestor element
  • Resettable pressure sensitive control valve
  • Fully guided non-return valve
  • Inlet dirt filter
