PRO TIG Torches
Advanced PRO-Grip MAX™ TIG Range From Parweld
Developed using the philosophy of putting the user first, the Parweld PRO TIG Torch range utilises high-quality PRO-Grip MAX™ comfort, handling and ergonomic efficency.

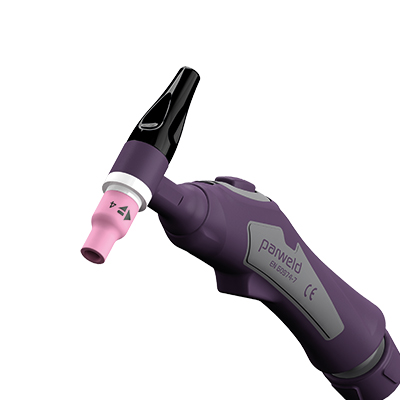

PRO-Grip MAX™ TIG Torch History
The Parweld PRO-Grip™ TIG Series originated from developements in 2012, overtime design and development processes have taken place to create the current PRO-Grip MAX™ Series available across a range of MIG, TIG and PLASMA Torches for both Welding and Cutting Applications.
The PRO-Grip MAX™ TIG Range
Developed using the philosophy of putting the user first, the Parweld PRO TIG Torch range utilises high-quality PRO-Grip MAX™ comfort, handling and ergonomic efficency.
Ergonomically superior handle design gives a perfect balance between comfort and style.
Light and ergonomic screwless handle design ensures comfort all day long, with improved wire feeding.
Reduced trigger reach for improved comfort.
Dual grips provide maximum grip strength with minimal effort, allowing the user to relax their grip.
Ball joint and flexible tapered support for balance, control and free movement.

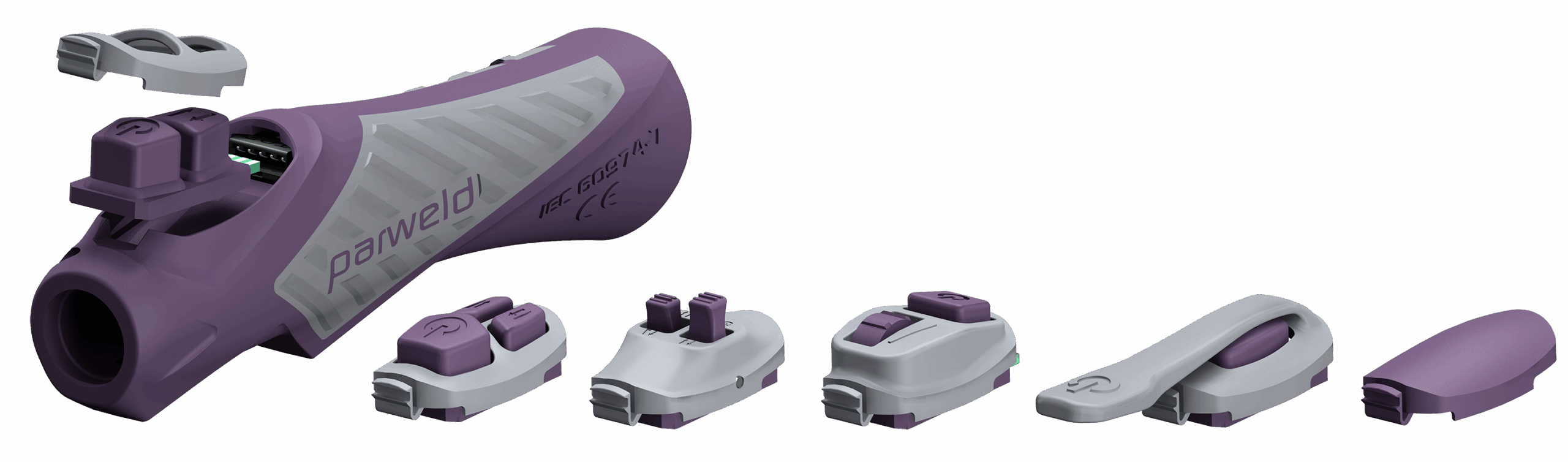

PRO TIG Trigger Switches
Located in a neutral finger position.
Switches can be changed within 5 seconds thanks to the Plug and Play Technology.
Switch options available to suit every application.
Find your nearest Parweld to see which switches are available to you.
TGC Cable Terminations
Moulded housing ensures tidy cables. Tapered TPE hose supports and cable set strain relief. Multiple configurations to suit most power sources.

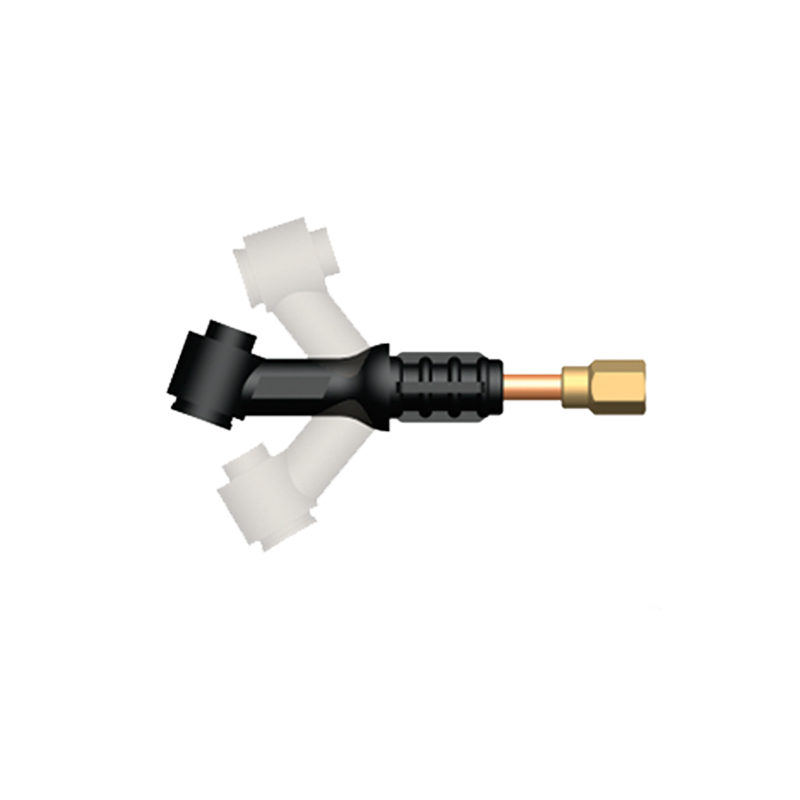

PRO TIG Flex Neck Alternatives
Allows users the ability to swap between head sizes depending on the job in hand, without needing to change the torch

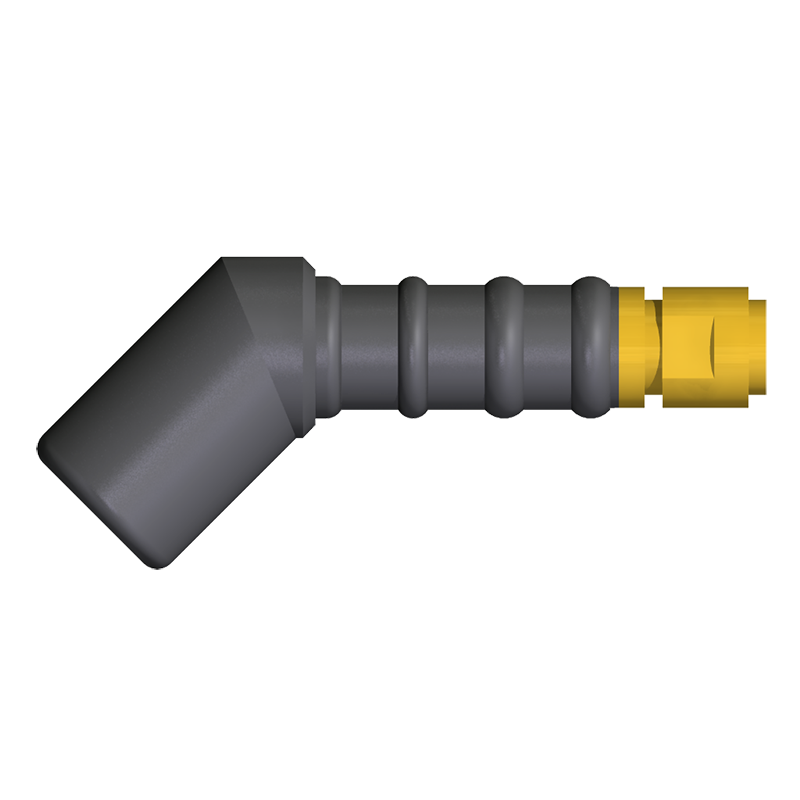

PRO TIG Swivel Neck Alternatives
The swivel head allows users to maintain a natural grip even when welding in confined or difficult positions.
PRO TIG Air Cooled Torches
PRO 9 / PRO 9FXL
Rating = 125A DC | 100A AC @ 60% Duty Cycle
Electrode Size = 0.5mm-2.4mm (0.020"-3/32")
PRO 17 / PRO 17FX
Rating = 150A DC | 115A AC @ 60% Duty Cycle
Electrode Size = 0.5mm-3.2mm (0.020"-1/8")
PRO 26 / PRO 26FX
Rating = 200A DC | 150A AC @ 60% Duty Cycle
Electrode Size = 0.5mm-4.0mm (0.020"-5/32")
PRO 250AC
Rating = 250A DC | 187A AC @ 25% Duty Cycle
Electrode Size = 1.2mm-3.2mm (0.045"-1/8")
PRO TIG Water Cooled Torches
PRO 20 / PRO 20FXL
Rating = 250A DC | 190A AC @ 100% Duty Cycle
Electrode Size = 0.5mm-3.2mm (0.020"-1/8")
PRO 18 / PRO 18FX
Rating = 350A DC | 260A AC @ 100% Duty Cycle
Electrode Size = 0.5mm-4.0mm (0.020"-5/32")
PRO 18SC
Rating = 400A DC | 300A AC @ 100% Duty Cycle
Electrode Size = 0.5mm-4.8mm (0.020"-3/16")
PRO 550W
Rating = 550A DC | 410A AC @ 100% Duty Cycle
Electrode Size = 1.2mm-6.4mm (0.045"-1/4")
PRO 20 HYBRID (PRO 20HY)
Compact Lightweight Torch with Hybrid Power Cable for High Power Operation
Rating = 300A DC | 230A AC @ 100% Duty Cycle
Electrode Size = 0.5mm-3.2mm (0.020"-1/8")

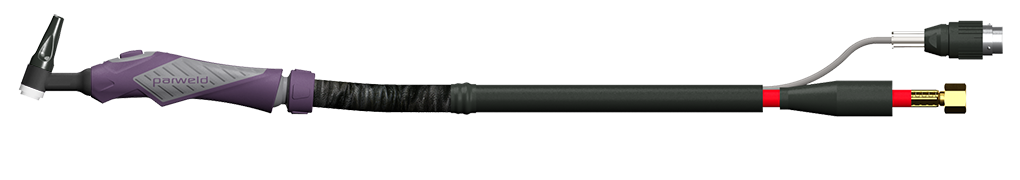

PRO TIG Torch Configurations
Torch Head
PRO9 = Air Cooled 125A DC
PRO9FXL = Flexible Air Cooled 125A DC
PRO17 = Air Cooled 150A DC
PRO17FX = Flexible Air Cooled 150A DC
PRO18 = Water Cooled 350A DC
PRO18FX = Flexible Water Cooled 350A DC
PRO18SC = Water Cooled 400A DC
PRO20 = Water Cooled 250A DC
PRO20FXL = Flexible Water Cooled 250A DC
PRO20HY = Water Cooled 300A DC
PRO20HYFXL = Flexible Water Cooled 300A DC
PRO26 = Air Cooled 200A DC
PRO26FX = Flexible Air Cooled 200A DC
PRO550W = Water Cooled 500A DC
PRO250AC = Flexible Air Cooled 250A DC
Cable Length
12 = 4m (12.5ft)
25 = 8m (25ft)
PRO Torch Switch
S1 = Momentary Switch
S1L = Momentary Switch & Lever
S2 = 2 Button Momentary Switch
S3 = 3 Button Momentary Switch
S4 = 4 Button Rocker Momentary Switch
S4L = 4 Button Momentary Rocker Switch Lorch®
1K = 1 Button Momentary Switch & 1K Potentiometer
2K = 1 Button Momentary Switch & 5K Potentiometer
3K = 1 Button Momentary Switch & 10K Potentiometer
4K = 1 Button Momentary Switch & 25K Potentiometer
1KL = 1 Button Latching & 1K Potentiometer
2KL = 1 Button Latching & 5K Potentiometer
3KL = 1 Button Latching & 10K Potentiometer
4KL = 1 Button Latching & 25K Potentiometer
N = Blank (No Button & No Switch)
Cable Terminations
Cable Plugs
PRO9 = Air Cooled 125A DC | PRO9FXL = Flexible Air Cooled 125A DC
PRO17 = Air Cooled 150A DC | PRO17FX = Flexible Air Cooled 150A DC
PRO18 = Water Cooled 350A DC | PRO18FX = Flexible Water Cooled 350A DC | PRO18SC = Water Cooled 400A DC
PRO20 = Water Cooled 250A DC | PRO20FXL = Flexible Water Cooled 250A DC
PRO20HY = Water Cooled 300A DC | PRO20HYFXL = Flexible Water Cooled 300A DC
PRO26 = Air Cooled 200A DC | PRO26FX = Flexible Air Cooled 200A DC
PRO550W = Water Cooled 500A DC
PRO250AC = Flexible Air Cooled 250A DC
12 = 4m (12.5ft)
25 = 8m (25ft)
Leather Cover with Neoprene Sheath
S1 = Momentary Switch
S1L = Momentary Switch & Lever
S2 = 2 Button Momentary Switch
S3 = 3 Button Momentary Switch
S4 = 4 Button Rocker Momentary Switch
S4L = 4 Button Momentary Rocker Switch Lorch®
1K = 1 Button Momentary Switch & 1K Potentiometer
2K = 1 Button Momentary Switch & 5K Potentiometer
3K = 1 Button Momentary Switch & 10K Potentiometer
4K = 1 Button Momentary Switch & 25K Potentiometer
1KL = 1 Button Latching & 1K Potentiometer
2KL = 1 Button Latching & 5K Potentiometer
3KL = 1 Button Latching & 10K Potentiometer
4KL = 1 Button Latching & 25K Potentiometer
N = Blank (No Button & No Switch)
Torch Head
Cable Length (ft)
Switch
Cable Termination
Cable Plug
Torch Head
Cable Length (ft)
Switch
Cable Termination
Cable Plug
Torch Type
Torch Head (17-26 or 9-20)
Angle Reference
Air or Water Cooled
Cable Length (ft)
Switch
Cable Termination
Cable Plug
PRO-Grip MAX™ Handles are available for Parweld MIG BZL Torches, Parweld TIG Welding Torches and Parweld PLASMA Cutting Torches.
PRO-Grip MAX™ Handles are available for Parweld MIG BZL Torches, Parweld PRO TIG Welding Torches and Parweld PLASMA Cutting Torches.
Check out your nearest Parweld distributor for details on what is available for you.
Or alternatively, contact Parweld Head Office for more details.
Check out your nearest Parweld distributor for details on what is available for you.
Or alternatively, contact Parweld Head Office for more details.
