Spool Gun Welding Torches
BZL & TWC MIG/MAG Air Cooled Torches From Parweld WUXI

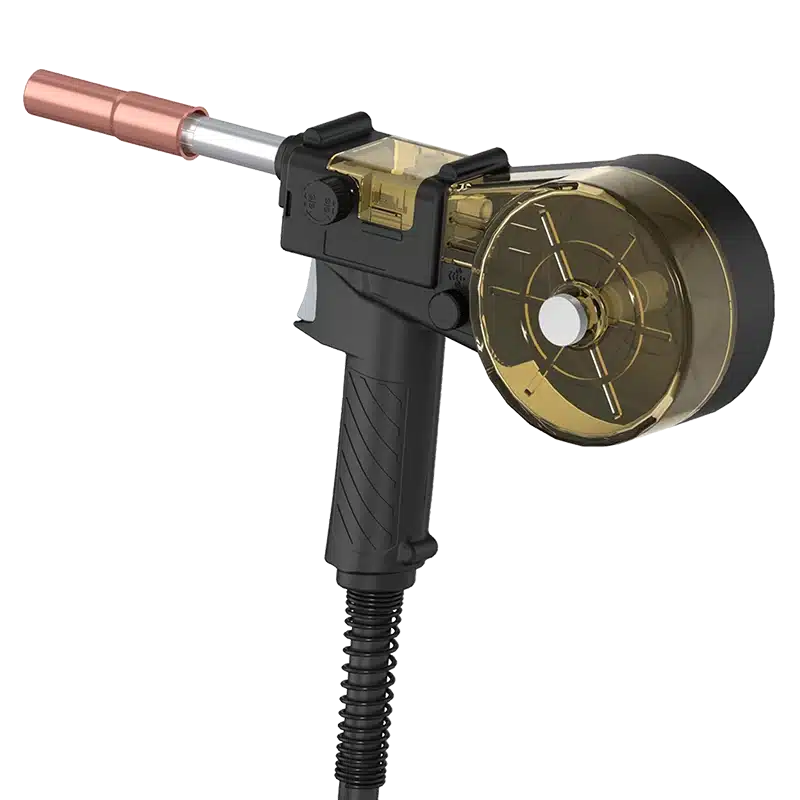

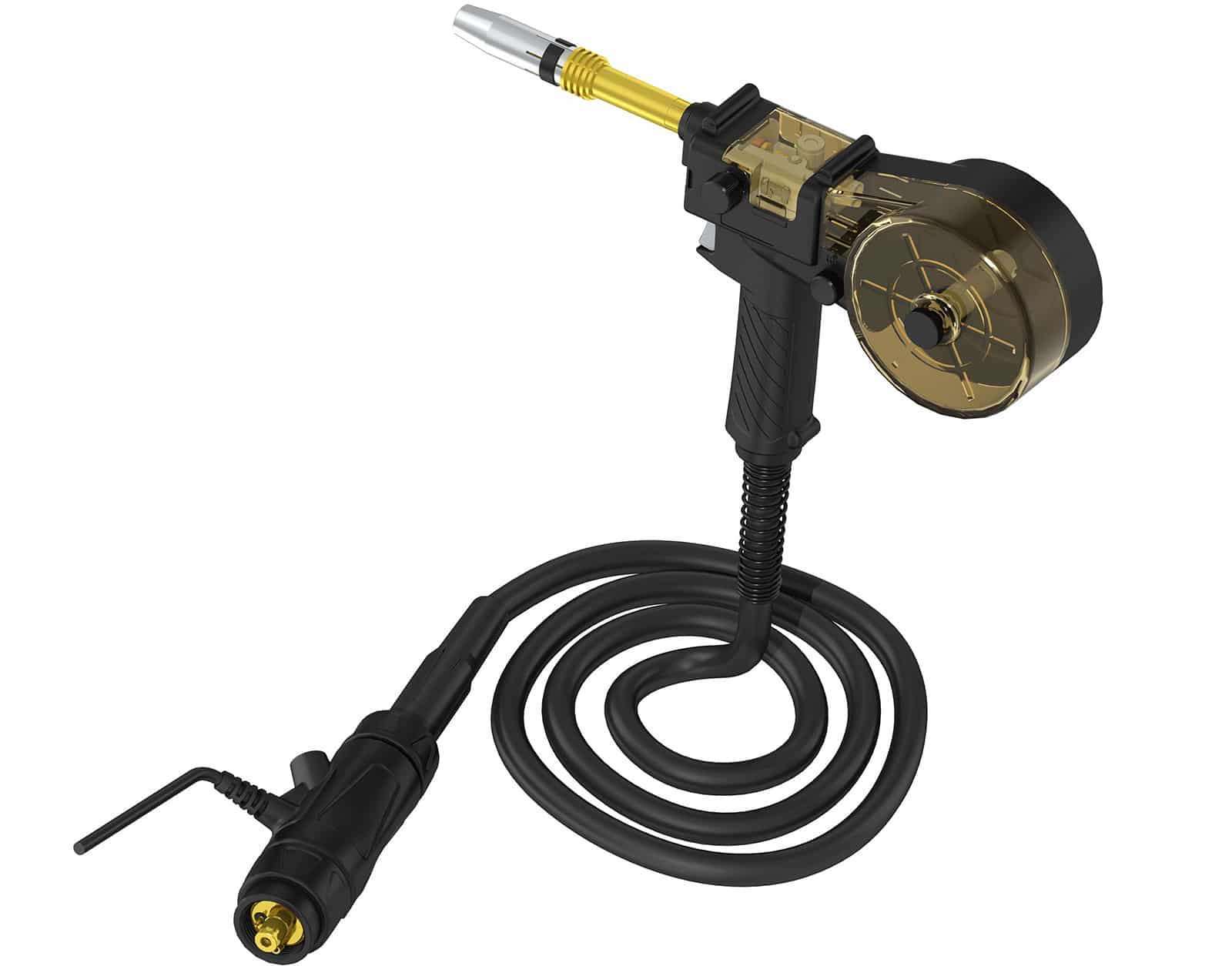

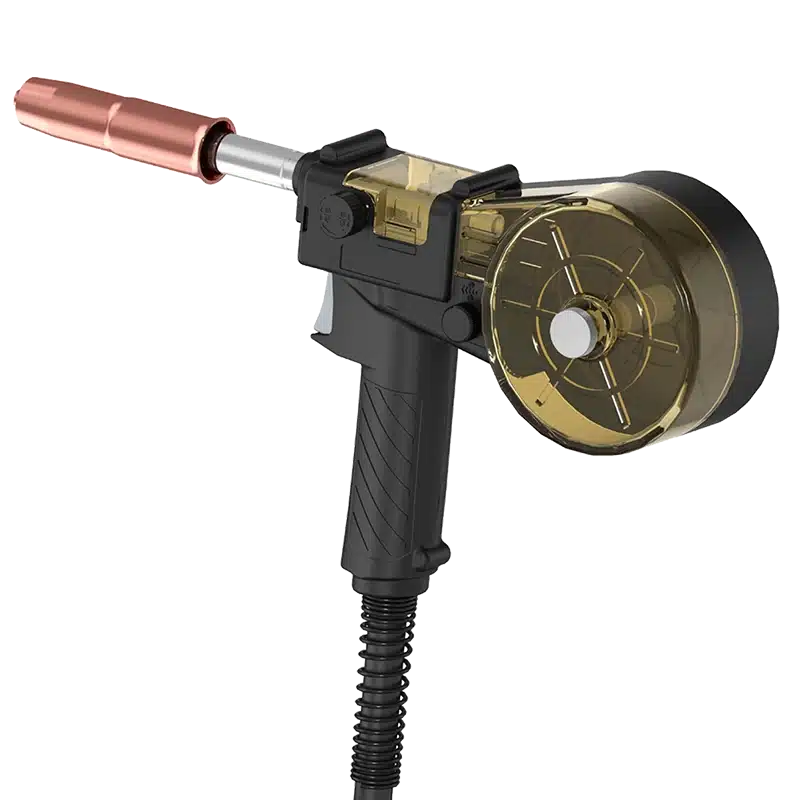

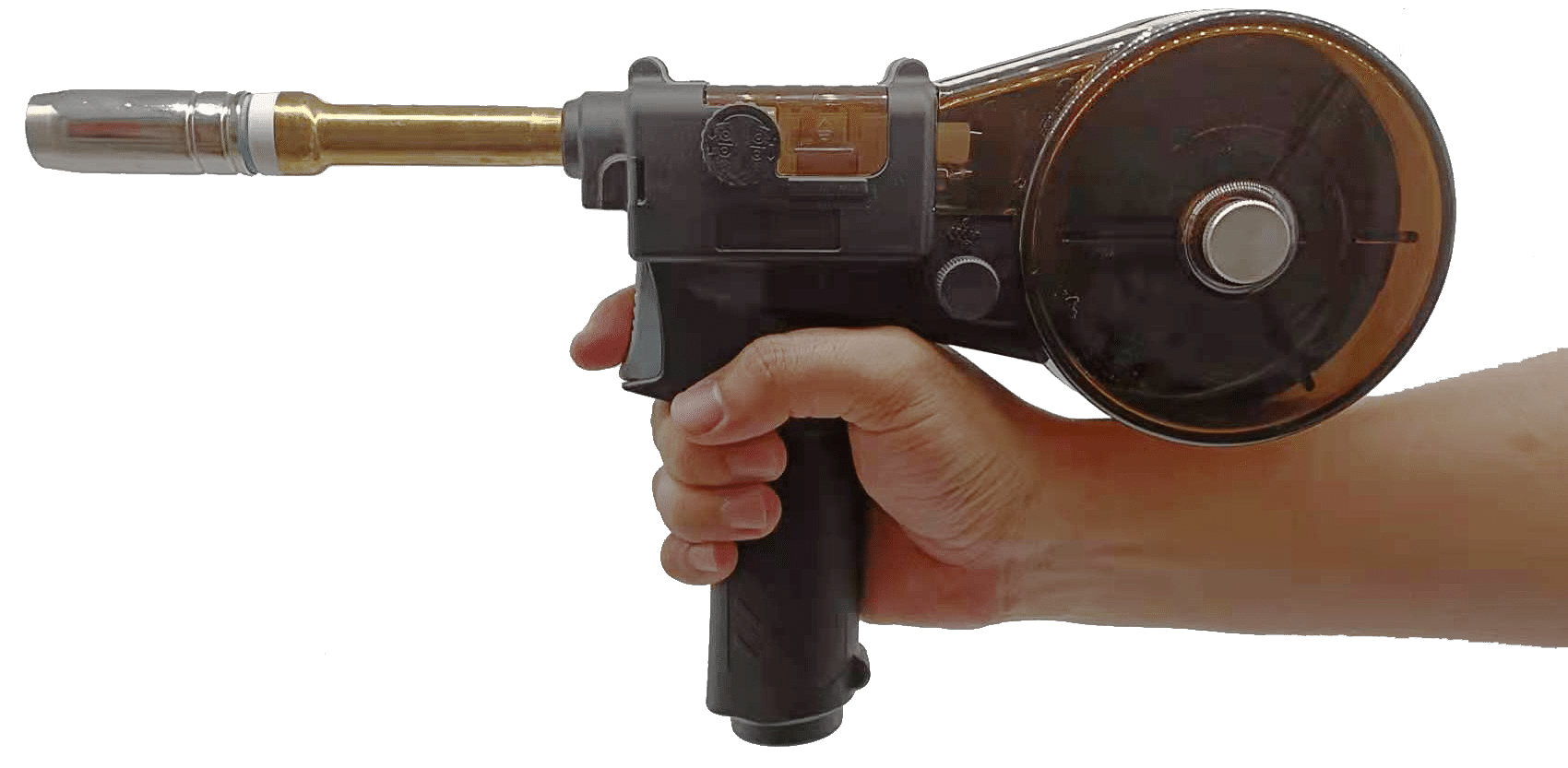

Available to Parweld WUXI customers, a spool gun is a specialised MIG welding torch that holds a small wire spool directly on the handle, featuring its own drive rollers to feed the wire to the contact tip. This design minimizes the distance the wire travels, which significantly reduces issues like wire kinking and "bird's nesting" commonly associated with feeding soft wires, such as aluminum. Spool guns provide improved control, consistent weld quality, and a longer reach for remote jobs, making them ideal for working with soft alloys and in fieldwork or large construction projects
Compact high power motor
Reduces the handle diameter improving operator comfort and reducing strain.
Keep your cool
Integrated cooling Channels and ventilation slots allow motor heat to dissipate further improving operator comfort.
Low mounted wire spool
Improved balance and straight wire
delivery from the spool. The spool
weight is supported on the forearm
reducing wrist strain.
The transparent spool cover and wire feeding
system cover offers good visibility.
High Torque

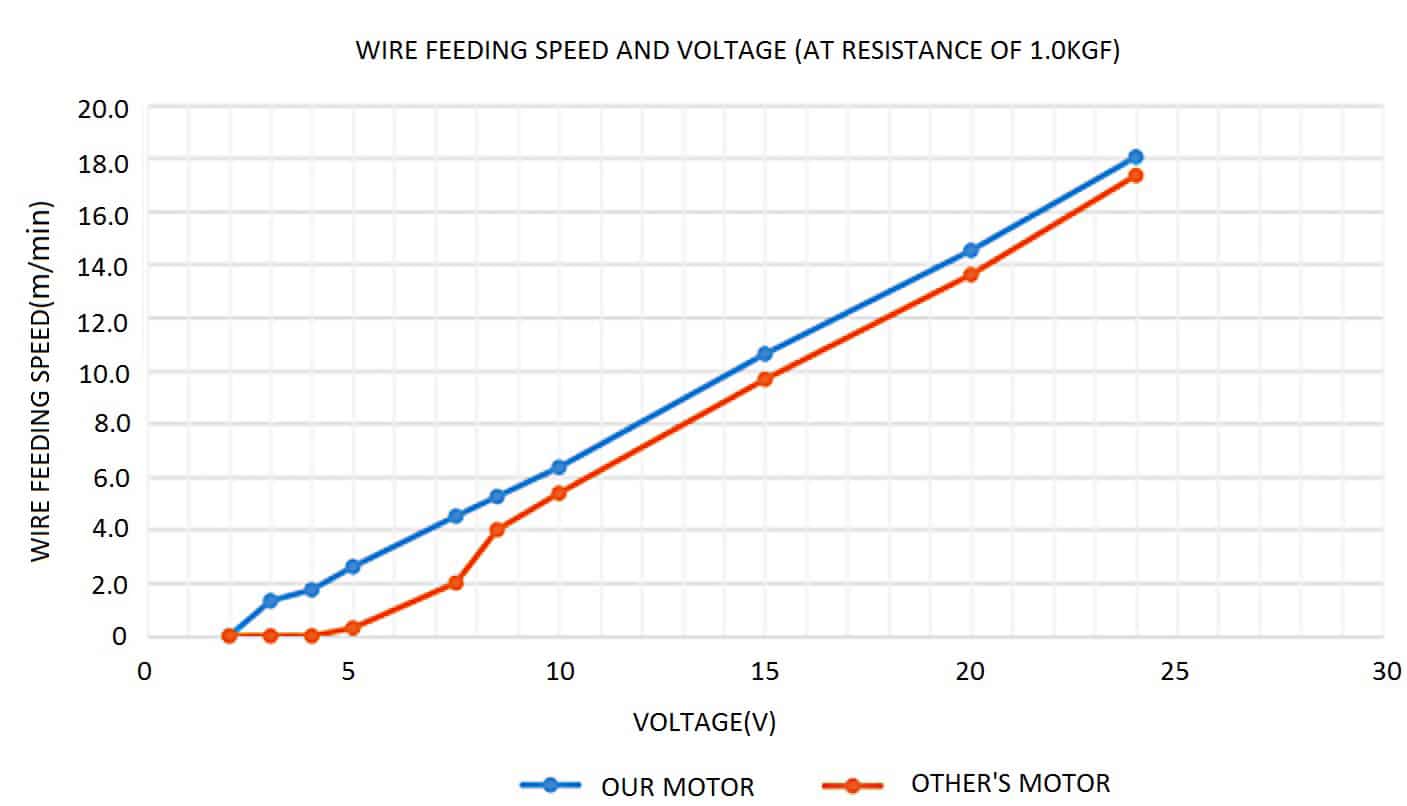

DC motor & gearbox assembly provides higher torque and better linearity, especially at lower wire feeding speed, high quality components provide smooth speed control. Our modular construction makes servicing a dream.
Reliable Feeding

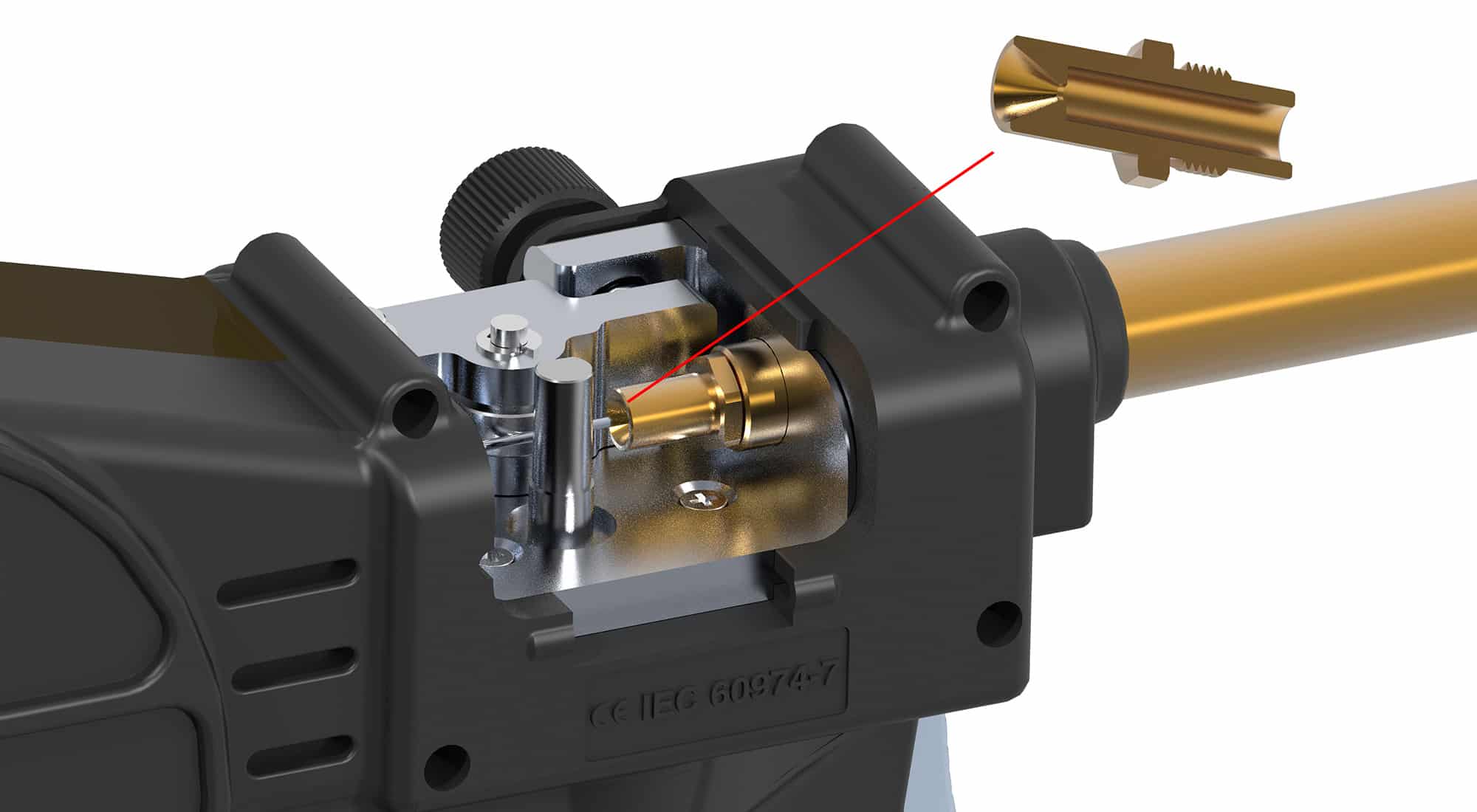

The use of a solid inlet guide to the neck
ensures reliable drag free feeding.
International branded potentiometer enables the motor to work at a consistent voltage.

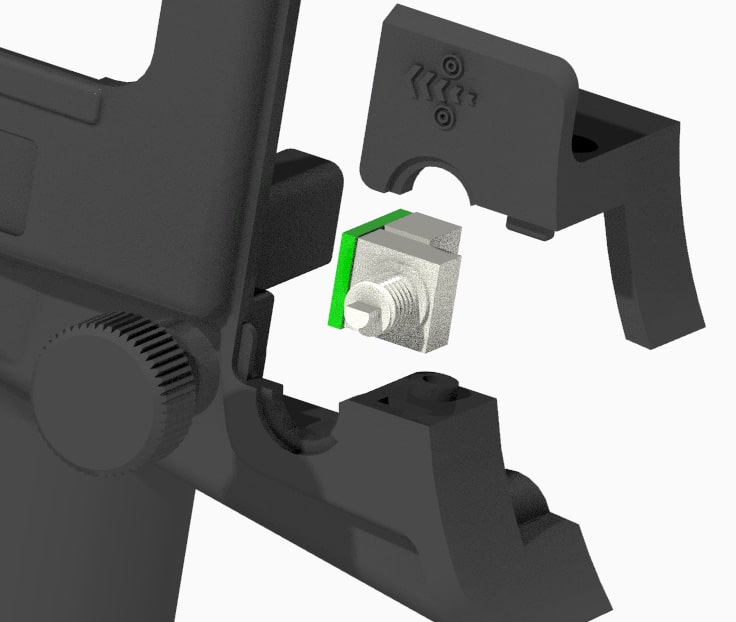

Modular design of the potentiometer assembly enables easy access and repair without having to dismantle the handles.
Damper fitted to the potentiometer assembly enables the welder to precisely adjust the welding current with gloves on.
Power Transfer

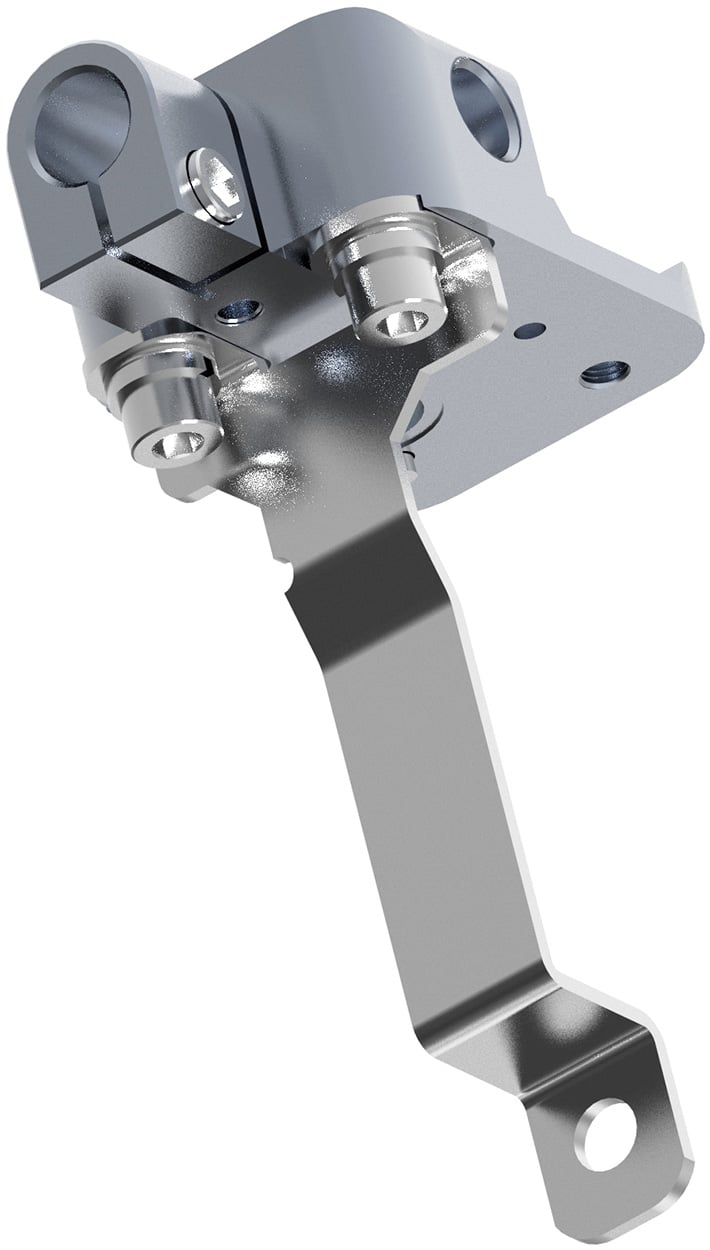

Heavy duty current strap mounting provides reliable heat free power transfer form the power cable to the neck.
Thicker and Y-shaped conducting bar provides better conductivity and larger contact area.
Totally Configurable

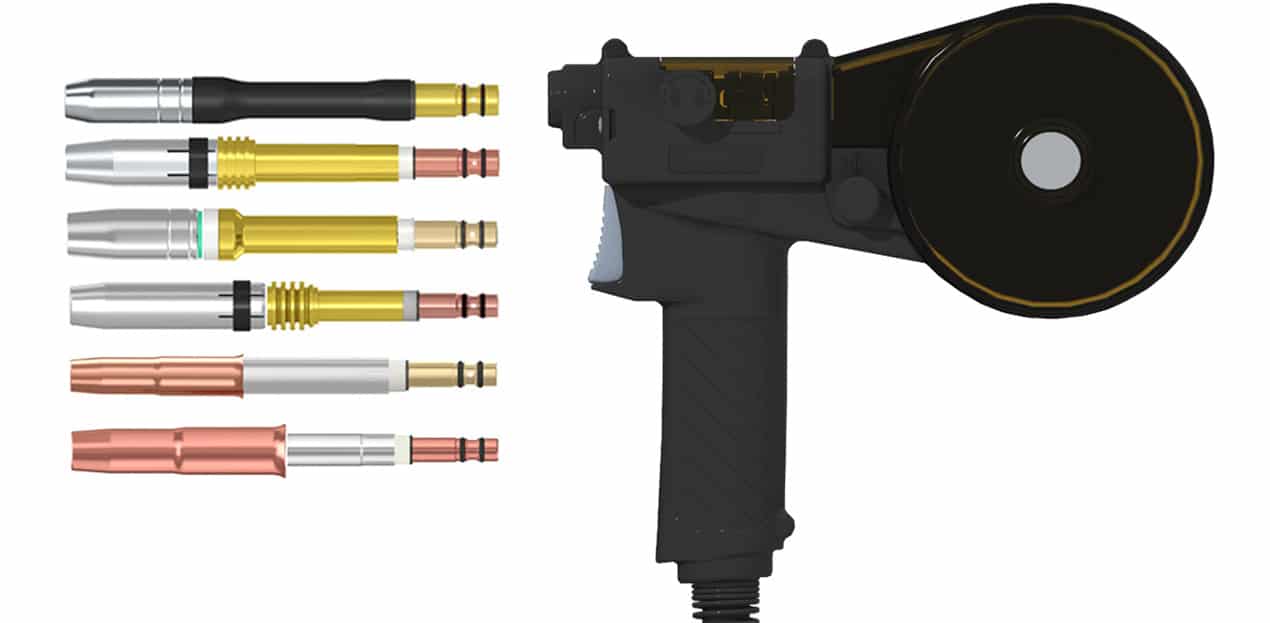

The spool on gun can be specified with any front and back end configuration to suit your reqiurements.
BZL Range

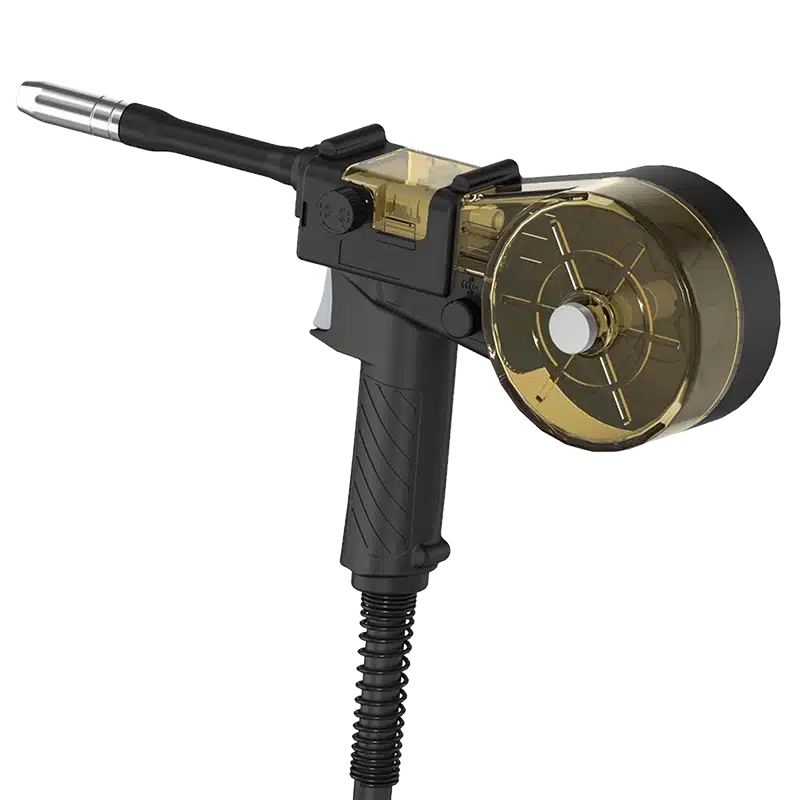

SAB1500
CO2 Rating = 180A @ 60% Duty Cycle
Mixed Gas Rating = 150A @ 60% Duty Cycle
Wire Size = 0.6mm-1.0mm (0.023"-0.040")

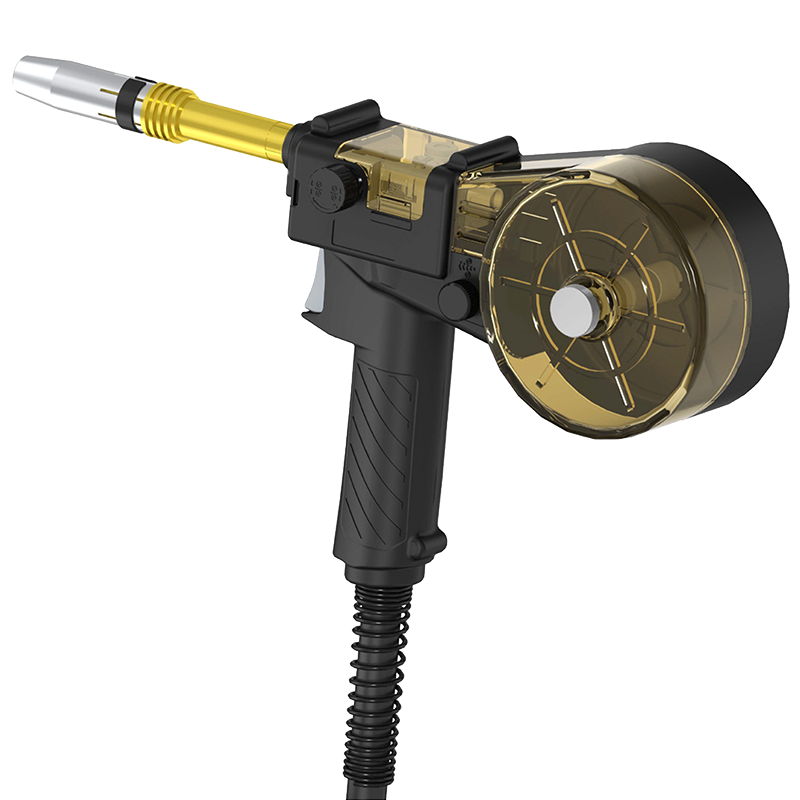

SAB2400
CO2 Rating = 250A @ 60% Duty Cycle
Mixed Gas Rating = 220A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")

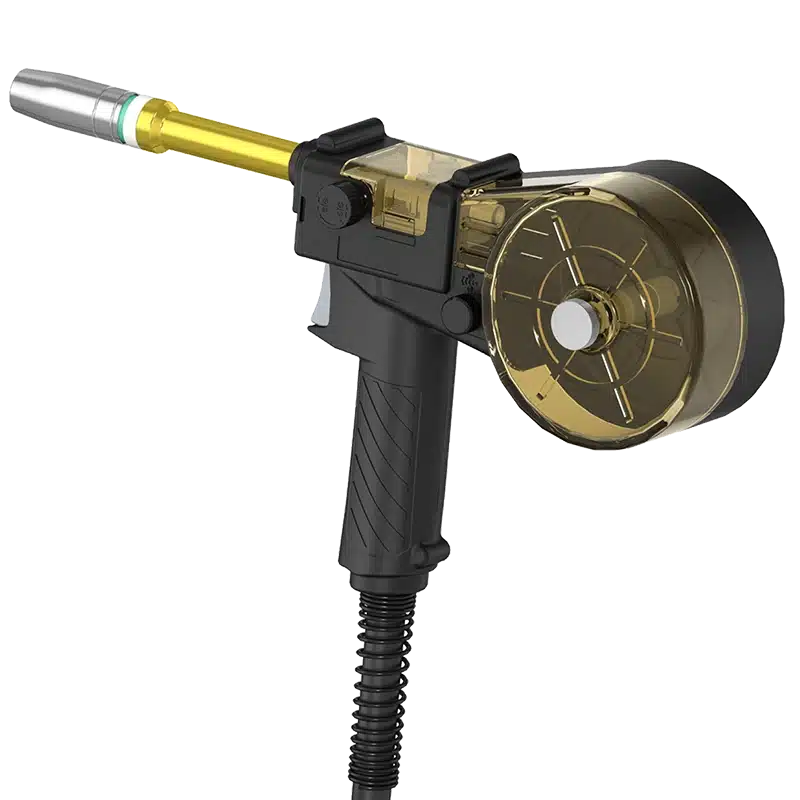

SAB2500
CO2 Rating = 230A @ 60% Duty Cycle
Mixed Gas Rating = 200A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")

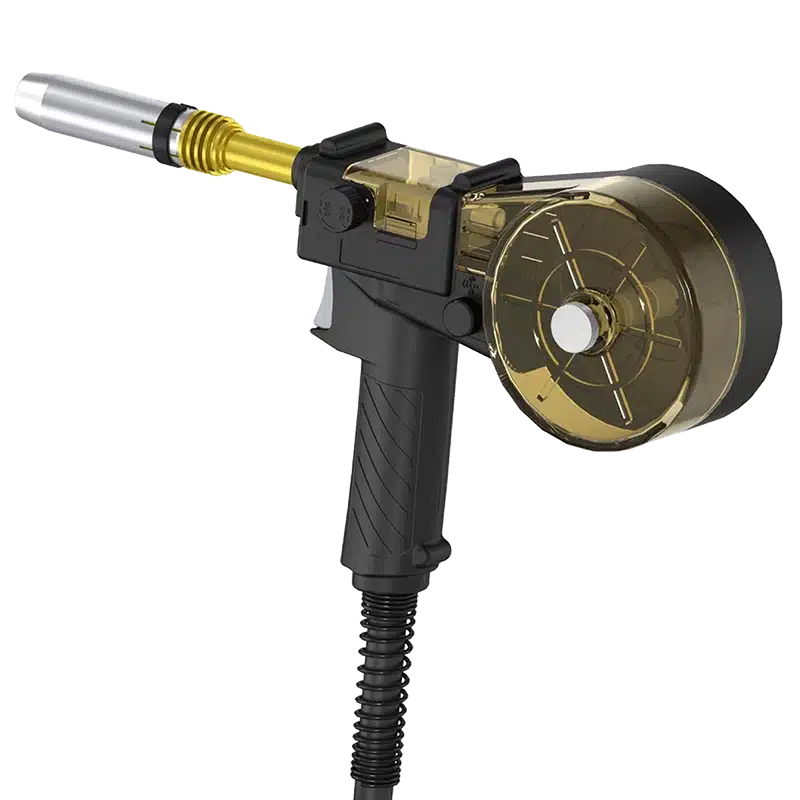

SAB3600
CO2 Rating = 300A @ 60% Duty Cycle
Mixed Gas Rating = 270A @ 60% Duty Cycle
Wire Size = 0.8mm-1.2mm (0.030"-0.045")
Check out your nearest Parweld distributor for details on what BND Torches are available for you.
Or alternatively, contact Parweld Head Office for more details.
