XR938H Welding & Grinding Helmet

Full Face Coverage & Variable Sensitivity

XR938H Welding & Grinding Helmet

Full Face Coverage & Variable Sensitivity

£0.00

For More Info Please Call Sales:

UK & Éire Sales:

Rest of the World ( Export ) Sales:

Please Call Sales To Place An Order:

The XR938H True Colour Light Reactive Welding and Grinding Helmet is both slim and lightweight in construction. Manufactured from a high impact polyamide nylon material which ensures the helmet provides high levels of comfort and durability. The metallic paint finish ensures maximum heat reflection.

With Full Face Coverage, curved design with a clear spatter shield over the optics provides maximum clarity. The helmet is fully adjustable to suit all head and body types. Features full neck coverage, locking headgear and automatic power on/off switch.

The auto on, auto darkening, wide view lens switches from light to dark in 1/30,000th of a second and offers continuous eye protection against UV and IR radiation, even when the lens is in the light state mode. The grinding switch is conveniently located on the outside of the helmet. The switch locks the filter in the light state (Shade DIN 4) to enable the helmet to be used as a grinding visor.

The helmet is powered by a solar cell with replaceable backup battery.

The welding filter has 4 sensors that react independently as the welding arc is struck enabling the almost instantaneous darkening of the filter. The switching sensitivity knob is located on the inside of the helmet and allows the helmet to be tuned to work in different ambient light levels. All Parweld filters have a Shade 4 light state, ideal for welding preparation.

True Colour Lens

Weight N/A
Viewing Size

100 x 53mm (3.94” x 2.08”)

Cartridge Size

110mm x 90mm (4.33” x 3.54”)

Style & Design

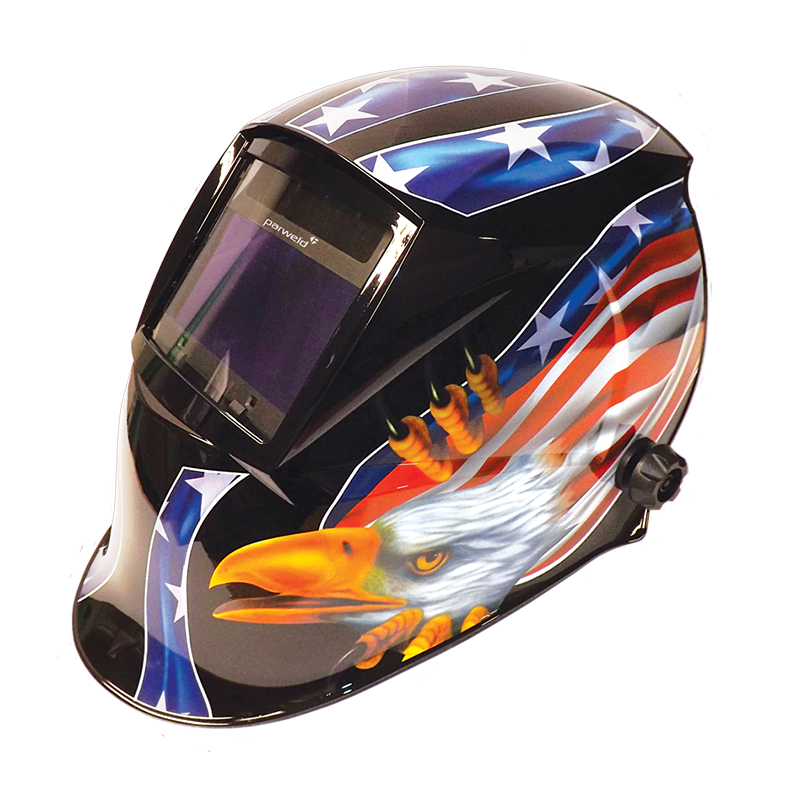

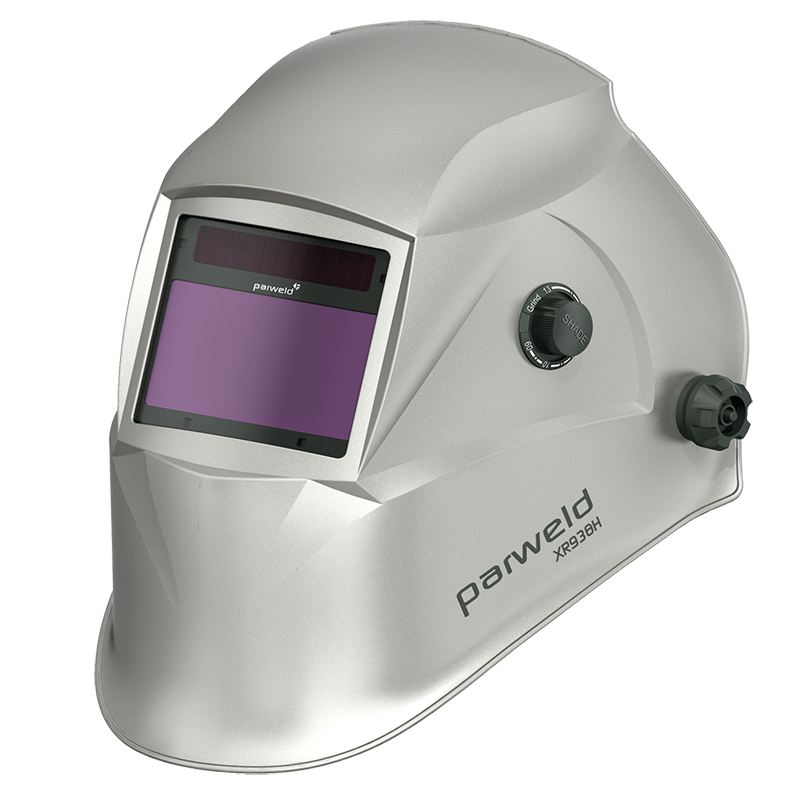

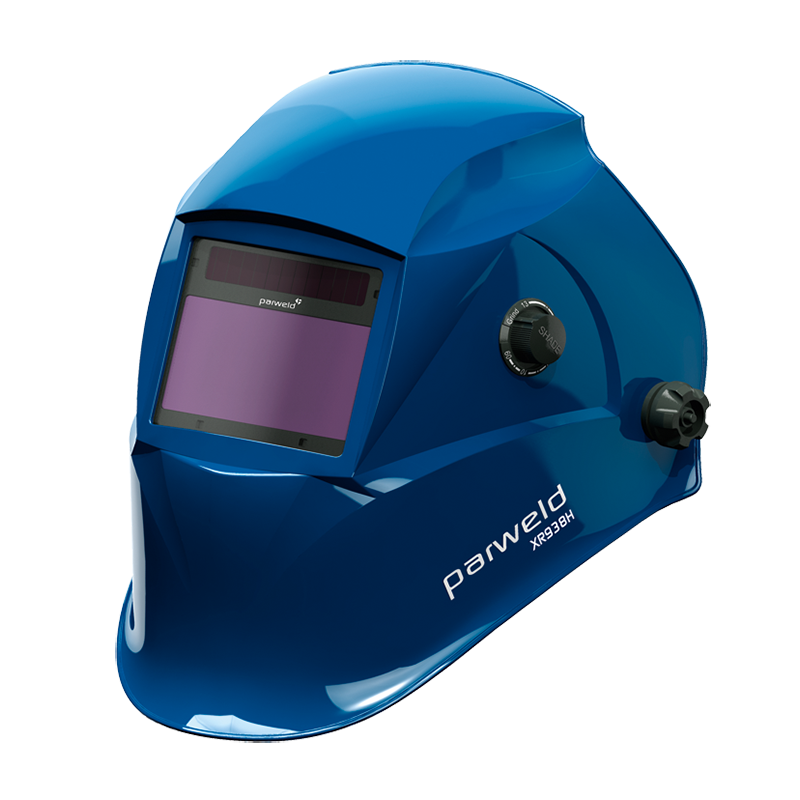

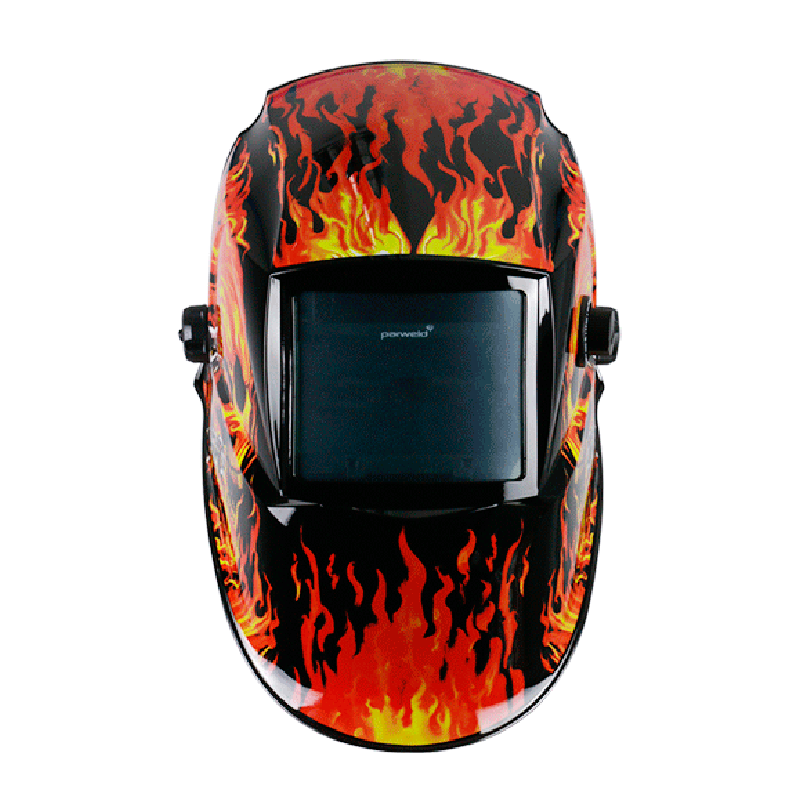

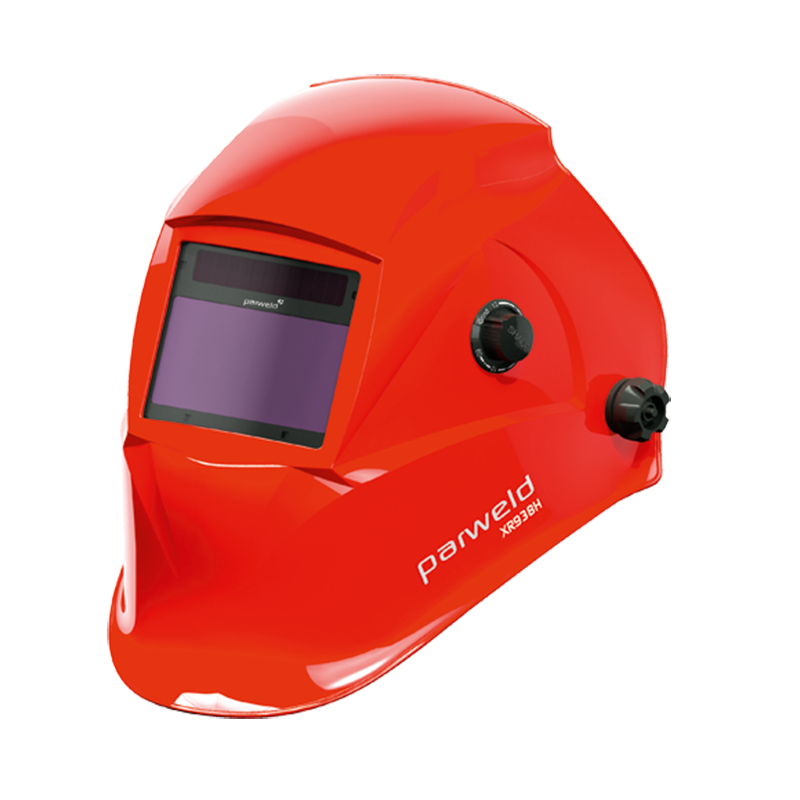

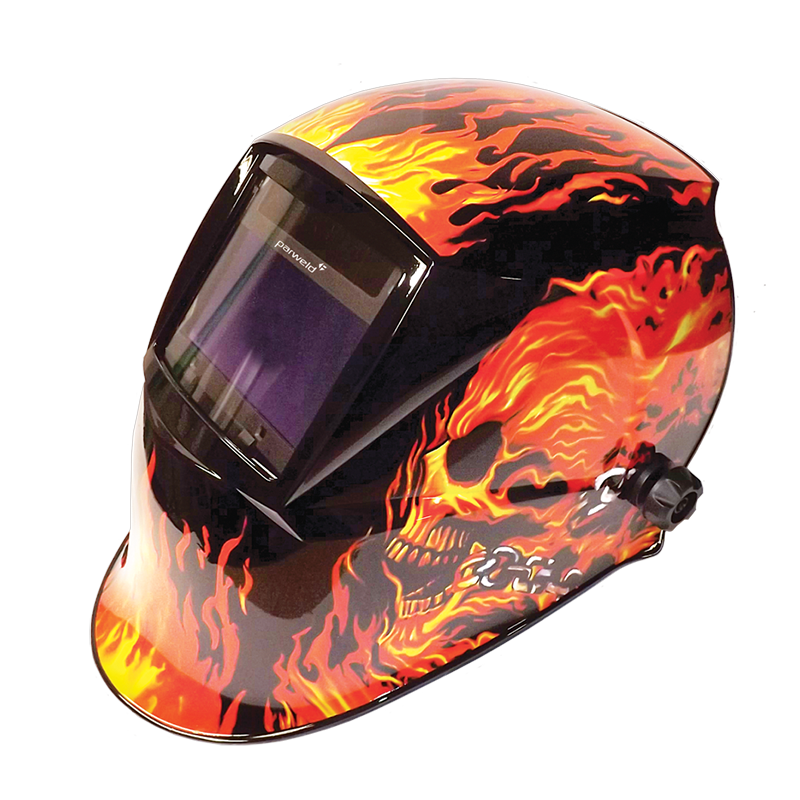

Graphite, Blue, Eagle, Flame, Red, Silver

Grind Mode

Yes

External Shade Control

Yes

Shade

May-13

Light State

DIN Shade 4

Dark State

DIN Shade 5 to 13 Variable

Dark to Light

0.1-1.0 seconds (External variable)

Switching Time Light to Dark

1/30,000th of a Second

Delay

Variable

Sensitivity

Variable

UV/IR Protection

Permanent Shade DIN16

Power Supply

Built-In Solar Cells and Replaceable Battery Pack

Battery Life Expectancy

2 years

Minimum Amp Requirement

5A

Power On/Off

Fully Automatic

Storage Temperature

-20ºC to +70ºC (-4ºF to -158ºF)

Operating Temperature

-10°C to +60°C (14°F to 140°F)

Material

High Impact Polyamide Nylon

Suitable for

TIG Welding

Warranty

24 months

Conforms To

BS EN 166:2002, BS EN 175, BS EN 175:1997, BS EN 379, BS EN 379:2003+A1:2009, EN 166

1 review for XR938H Welding & Grinding Helmet

  1. Julie Clarke-Edwards

    Using one of your helmets has been a real game changer, especially for the plasma cutting.

Only logged in customers who have purchased this product may leave a review.

XR938H Instructions

Download

Operator Manual for XR938H Welding & Grinding Helmet - Issue Date 2020
