XTT 207 DVP Pulsed
200A TIG Inverter Machine
XTT 207 DVP Pulsed
200A TIG Inverter Machine
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
The XTT 207 DV is suitable for TIG welding steel and stainless steel using the HF start circuit. Adjustable power pulsing allows reduced heat input and increased penetration. The XTT 207 DV has a DC output and is suitable for welding alloy, non alloy steels, stainless steel and titanium. TIG Mode – Materials up to 6mm can be welded with ease. MMA Mode – Electrodes up to 4.8mm can be used with ease. The XTT 207 DV is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The machine is housed in a metal case with integrated carry handle & shoulder strap. A carry case is available as an optional extra.
Key Features Include:
- Dual Voltage 110V / 230V Single Phase
- 200A @ 35% Duty Cycle
- TIG Welds Steel and Stainless Steel up to 6mm Thickness
- Pulse Function for Superior Arc Control
- Lightweight at just 8kg
- Generator Friendly
- Adjustable TIG Parameters
- Latching Trigger Option (TIG Mode)
- Adjustable Down Slope Option (TIG Mode)
- Connections 35-50mm Twist Lock
| Weight | 8 kg |
|---|---|
| Dimensions | 376 × 136 × 240 mm |
| Phase | Single Phase |
| Machine Style | Compact |
| Machine Type | Inverter |
| Maximum Current | 5-160A DC, 5-200A DC |
| Output Current for 230V | 5-200A DC |
| Output Current for 110V | 5-160A DC |
| Duty Cycle | 160A @ 40% Duty Cycle, 200A @ 35% Duty Cycle |
| Input Voltage | 110V 1P, 230V 1P |
| Input Current (Eff) | 16A, 28.5A |
| Output | DC |
| Pulse Frequency | 0.5-100Hz |
| Pre-Flow Function | 0-10s |
| Post-Flow Function | 0-10s |
| Minimum Fuse Rating | 16A, 32A |
| KVA | 10 |
| Generator Size (Requires AVC) | 13 KVA |
| Cooling | Air, Fan, Forced |
| Enclosure Protection | IP23S |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose |
| Ideal for Applications | Light Industrial Manufacturing, Sheet Metal Work, Site Use |
| Special Features | Pulse Function to Superior Arc Control, TIG Mode, TIG welds steel & stainless steel to 6mm |
| Warranty | 3 Year Service, 3 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
Only logged in customers who have purchased this product may leave a review.
Share Product Via:
Related Products
You may also like…
-
XTT 212P AC/DC Pulsed
200A TIG Inverter Machine
-

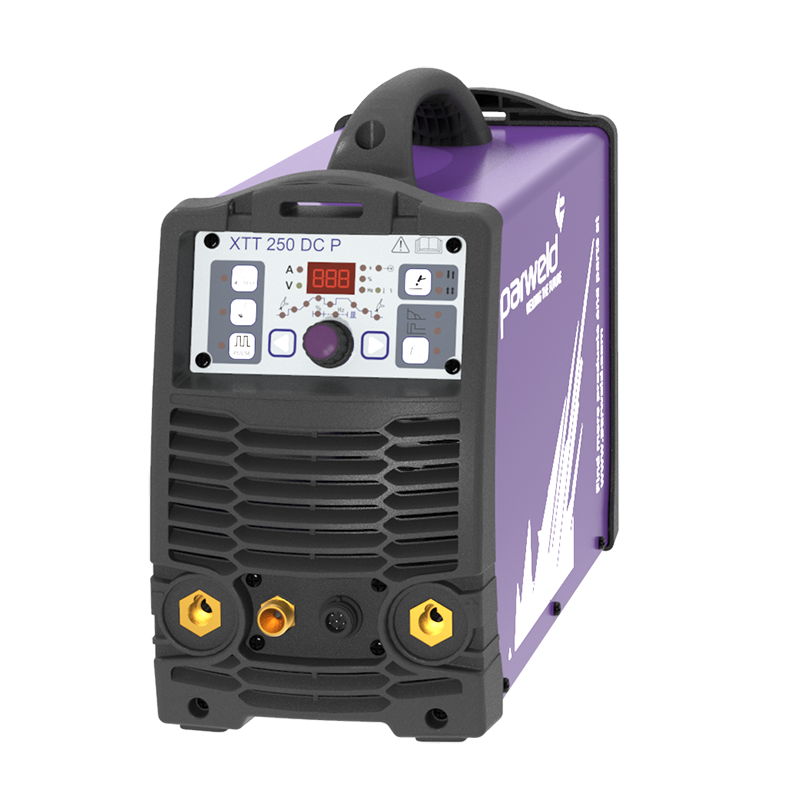

XTT 250 DC P Pulsed
