XTT 250 DC P Pulsed
250A TIG Inverter Machine
XTT 250 DC P Pulsed
250A TIG Inverter Machine
£0.00
Please Call Sales To Place An Order:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:
The XTT 250 DC P can be used for TIG or MMA welding allowing the welding of a wide range of steels and alloys. DC output and power pulsing maximises productivity whilst reducing heat output. The majority of steels can be welded in DC mode quickly using the pulse power function, giving the flexibility of reducing heat input or increasing the welding speed and weld penetration at higher pulse frequencies. Materials up to 8mm can be TIG welded, and thicker using MMA.
Key Features Include:
- 400V, 3 Phase Input
- 250A @ 40% Duty Cycle
- DC Power Pulsing
- Pulse Function for Superior Arc Control
- HF Arc Starting
- Full TIG Parameter Adjustment
- TIG Welds Steel and Stainless Steel up to 8mm Thickness
- Generator Friendly
- Digital Control
- Start Current and Crater Fill in 4T Mode
- Adjustable Upslope/Downslope (TIG Mode)
- Connections 35-50mm Twist Lock
| Weight | 10.5 kg |
|---|---|
| Dimensions | 404 × 170 × 296 mm |
| Phase | Three Phase |
| Machine Style | Compact |
| Machine Type | Inverter |
| Maximum Current | 5-250A DC |
| Duty Cycle | 250A @ 40% Duty Cycle |
| Input Voltage | 400V 3P |
| Up Slope Function | 0-5s |
| Down Slope Function | 0-5s |
| Input Current (Eff) | 8.6A |
| Output | DC |
| Pulse Rating | 0.5-100Hz |
| Pre-Flow Function | 0-10s |
| Post-Flow Function | 0-10s |
| Minimum Fuse Rating | 16A |
| KVA | 9.7 |
| Generator Size (Requires AVC) | 12 KVA |
| Cooling | Air, Fan, Forced |
| Enclosure Protection | IP23S |
| Comes With | 3m Earth Cable, 3m Input Cable, Gas Hose |
| Ideal for Applications | Agricultural, DIY, Light Industrial Manufacturing, Maintenance Repair, Sheet Metal Work, Training |
| Special Features | Digital Control, HF Arc Starting, Pulse Function to Superior Arc Control, TIG Mode, TIG welds steel & stainless steel to 8mm |
| Warranty | 3 Year Service, 3 Year Warranty |
| Conforms To | IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
Only logged in customers who have purchased this product may leave a review.
Share Product Via:
Related Products
You may also like…
-

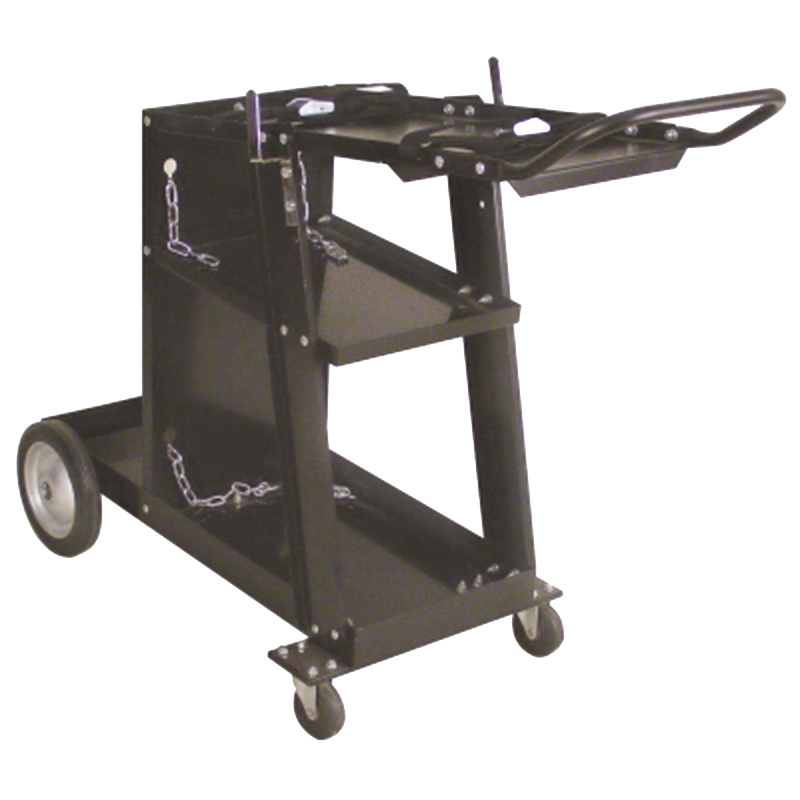

TR005 Trolley
Small Inverter Trolley
-
PRO-Grip MAX™ 20
Water Cooled TIG Torch
-

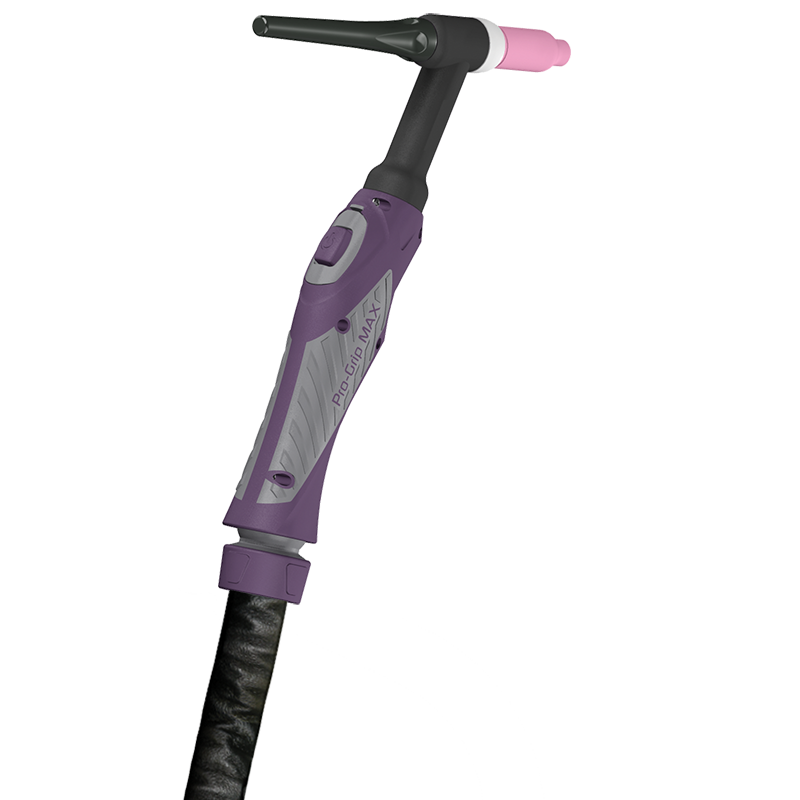

PRO-Grip MAX™ 26
Air Cooled TIG Torch
-

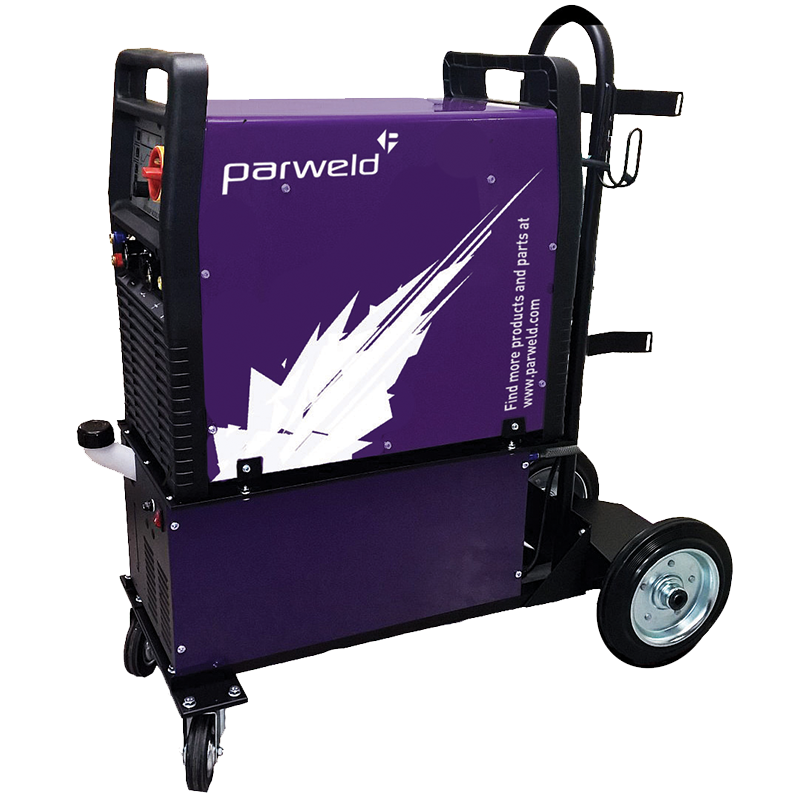

TR003 Trolley
