XTS 909 Water Cooler
High Performance Unit
XTS 909 Water Cooler
High Performance Unit
£0.00
For More Info Please Call Sales:
UK & Éire Sales:
Rest of the World ( Export ) Sales:
Please Call Sales To Place An Order:

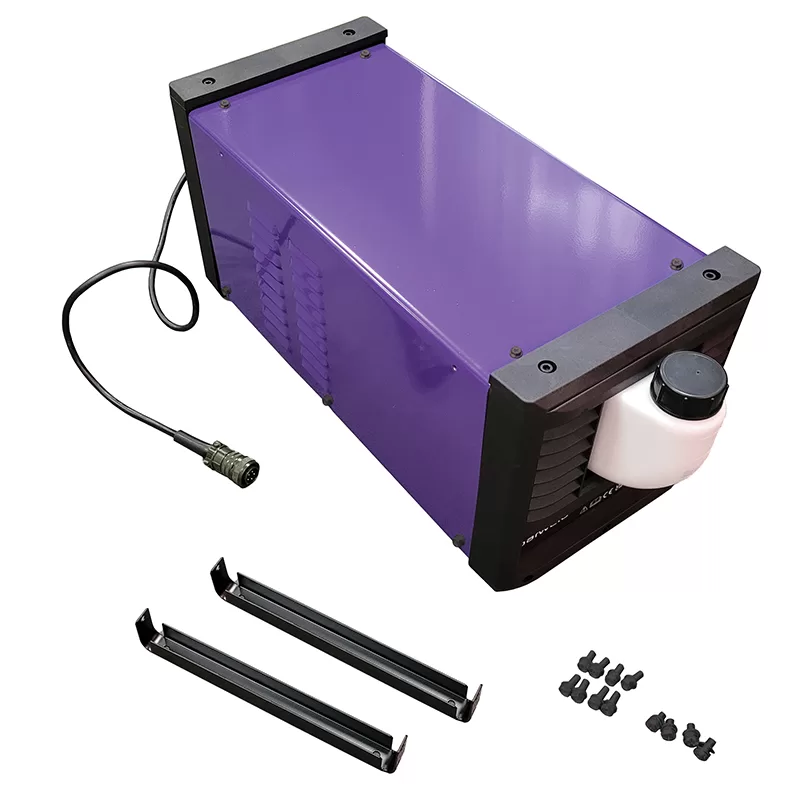

400V Three Phase High-Performance Water Cooler Unit compatible with the XTM 405i or XTM 505i MIG Inverters. Provides reliable cooling for MIG and TIG torches. The XTS 909 has a water tank capacity of 12 Litres, and a Flow Rate of 8 L/min. It can be either free standing or mounted to the bottom of the Power Source on the TR009 trolley, where it can be powered directly from the Power Source (outlet required on power source machine). Alternatively, it can be connected to the mains for power. Unit features a Fuse of 0.8A and a Welding Amps MAX of 500A.
Unit features quick fit water connectors for rapid hook up. Also features projecting spout for easy filling and coolant level checking. No pump priming required
Unit comes with 24 Months return to base warranty**
Manufactured to IP21S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
**Enquire for more details and eligibility on warranty
| Voltage | 400V |
|---|---|
| Phase | Three Phase |
| Tank Capacity | 12L |
| Flow Rate | 8 L/min |
| Mounting | Free Standing, Mountable to Underside of Power Source |
| Powered | Directly from the Power Source Machine, Mains |
| Pump Priming | Not Required |
| Spout | Projecting |
| Fuse | 0.8A |
| Welding Amps Max | 500A |
| Warranty | 24 months |
| Conforms To | ISO/IEC 60974-1, ISO/IEC 60974-6, RoHS Compliant |
| Cooling | Water |
